Wants All Packets
A device on the LON/IP channel can communicate to the other participants that it wants to receive all packets. This
is relevant if the device is used as a protocol analyser. In this case tick the checkbox for Wants All Packets.

6. Implementing service procedures

This section describes some routine operations that may occasionally be required with router operation.

6.1 Restarting the router

To restart the CG-S / IP-Router+ 1P, open the web interface by entering the IP address in the web browser of a PC
connected to the router. Go into the SETTINGS tab, enter the name and password of an authorised user and then
select Service in CATEGORIES on the left in the window. The router is restarted after clicking the Reboot Device
button and confirming a security query. During booting, the status LED changes from green to red.
The router must be restarted after modifying certain parameters and after installing new firmware to render
these effective.

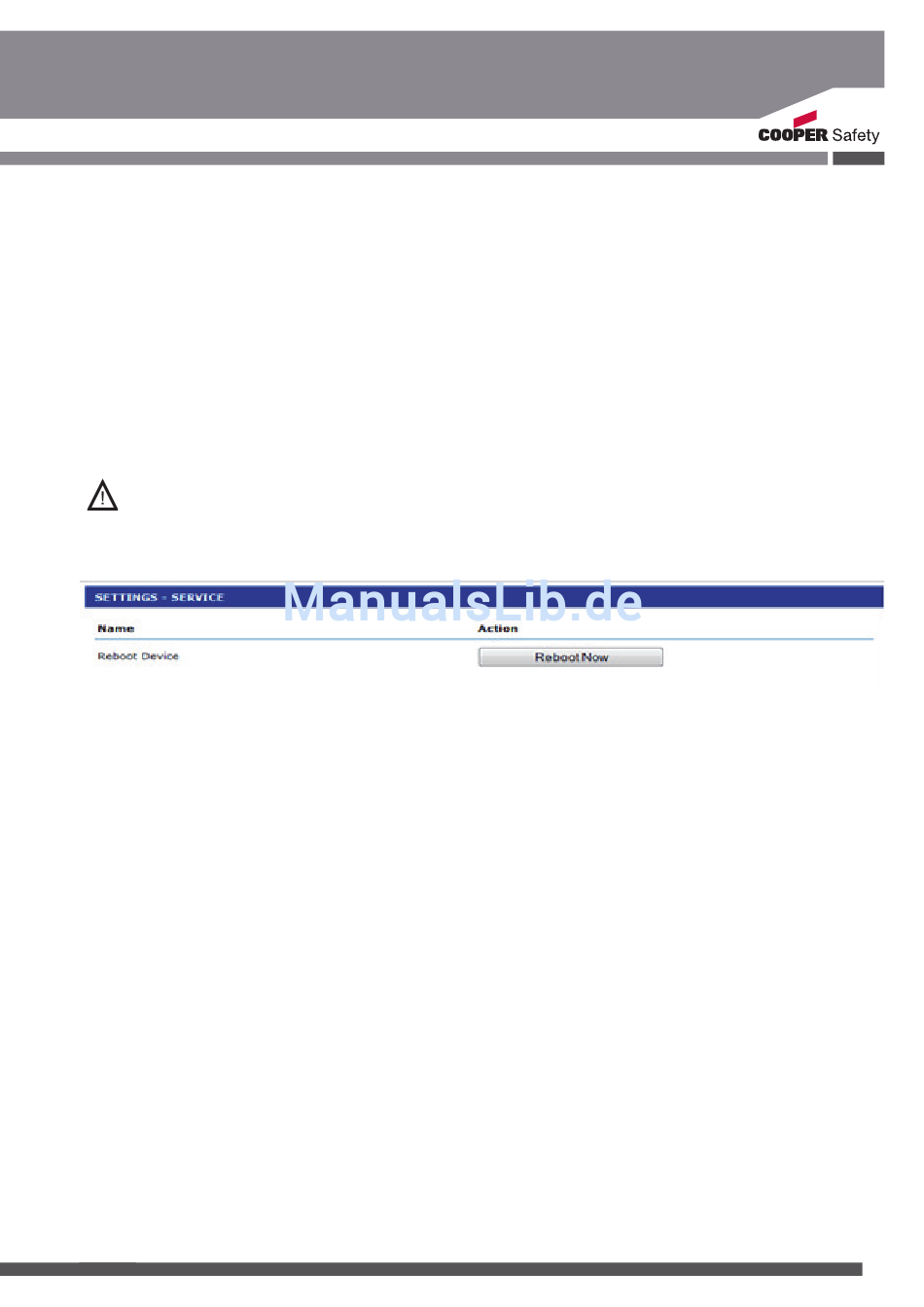

Figure: Restarting the router

6.2 Saving and loading configuration

The current router settings can be saved locally as a .rcf file and the uploaded to the device later. This file contains
the router-specific configuration data in XML format.
To access the file, go into the web interface and onto the SETTINGS tab and then on the left under CATEGORIES
onto Router Configuration. Pressing the download button saves the RCF file to the PC. The node ID of the router
with a time stamp is used for the file name.
CAUTION:
Loading a manually modified configuration file may cause router errors.
To upload an existing file with settings into the router, click on the Search... button next to New Router Configuration
(*.rcf) and select the file from your local memory. Clicking on Upload initiates the transmission process.
