3.3 Establishing a connection to the web interface

Status information can be called up and other settings implemented via the web interface of the CG-S / IP Router+
1P. The web interface can be accessed by entering the IP address of the router into the web browser of a PC con-
nected to the router. As standard, the CG-S / IP Router+ 1P is supplied with the preset IP address 192.168.1.250
and the subnet mask 255.255.255.0.

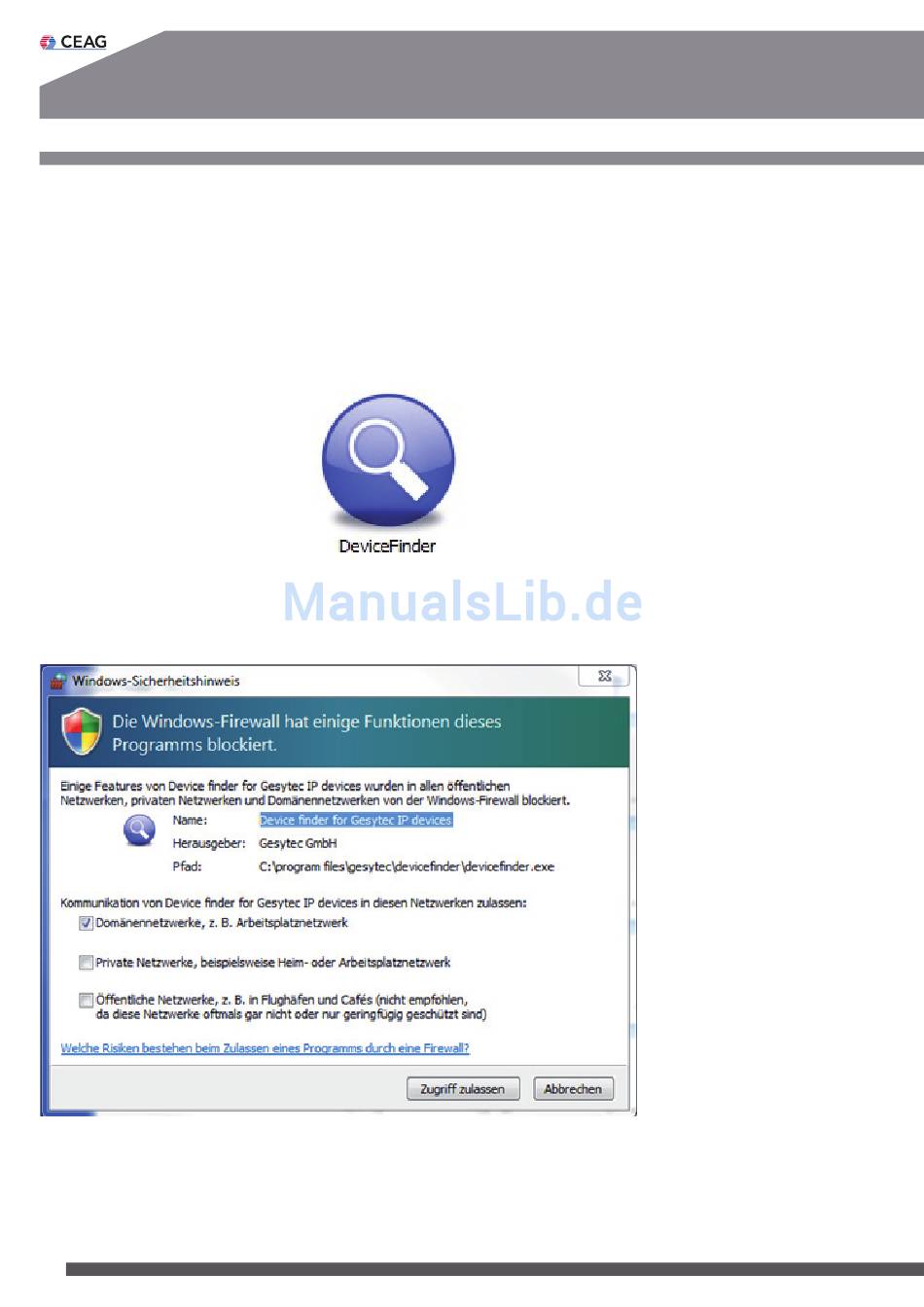

If you do not know the IP address of the device, then start the DeviceFinder program from the CG Vision CD in the
directory:
Tools/Device Finder
When you start the program, you must authorise this via the Windows Firewall
After clicking the Find Devices button, the program searches the connected network for the CG-S/IP Routers + and
shows these in a list.
