With many CG-S/IP routers+ 1P in the network we strongly recommend significantly reducing the bus load by selec-
ting the ‚multicast' operating mode, and to avoid communication faults.
Device configuration and diagnosis is carried out via the integral WEB interface. LEDs on the upper side of the
housing show the status of the router interfaces. Various service functions can be triggered via push buttons, and a
bus termination for the connected LON/FT segment can be switched via DIL switches.

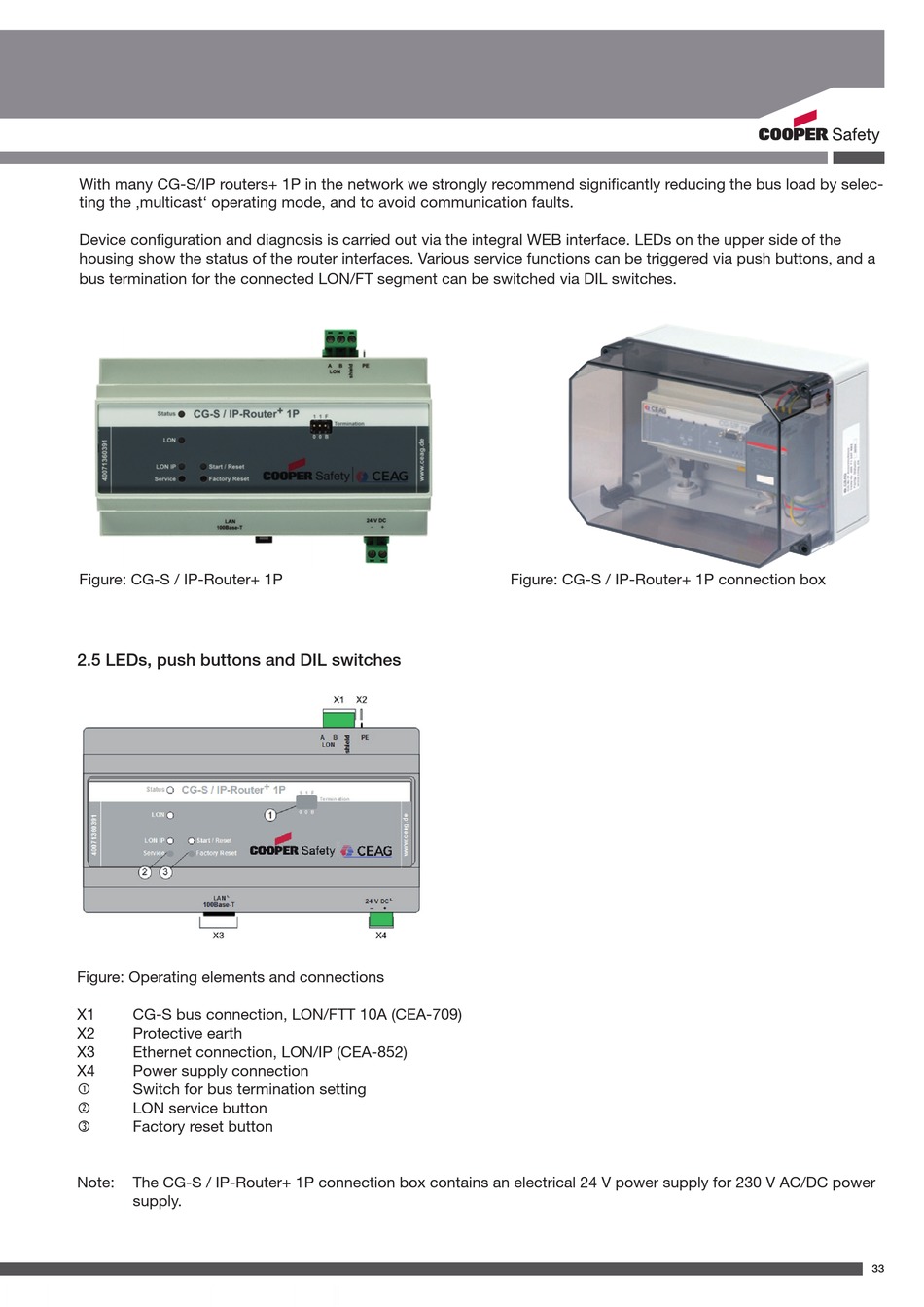

Figure: CG-S / IP-Router+ 1P

2.5 LEDs, push buttons and DIL switches

Figure: Operating elements and connections
X1 CG-S bus connection, LON/FTT 10A (CEA-709)
X2 Protective earth
X3 Ethernet connection, LON/IP (CEA-852)
X4 Power supply connection
Switch for bus termination setting

LON service button

Factory reset button

Note: The CG-S / IP-Router+ 1P connection box contains an electrical 24 V power supply for 230 V AC/DC power
supply.
Figure: CG-S / IP-Router+ 1P connection box
33
