Power Graphs; Technical Data - elco VECTRON L 04.350 DUO Betriebsanleitung

Overview

Power graphs

Technical data

Note regarding the power graph

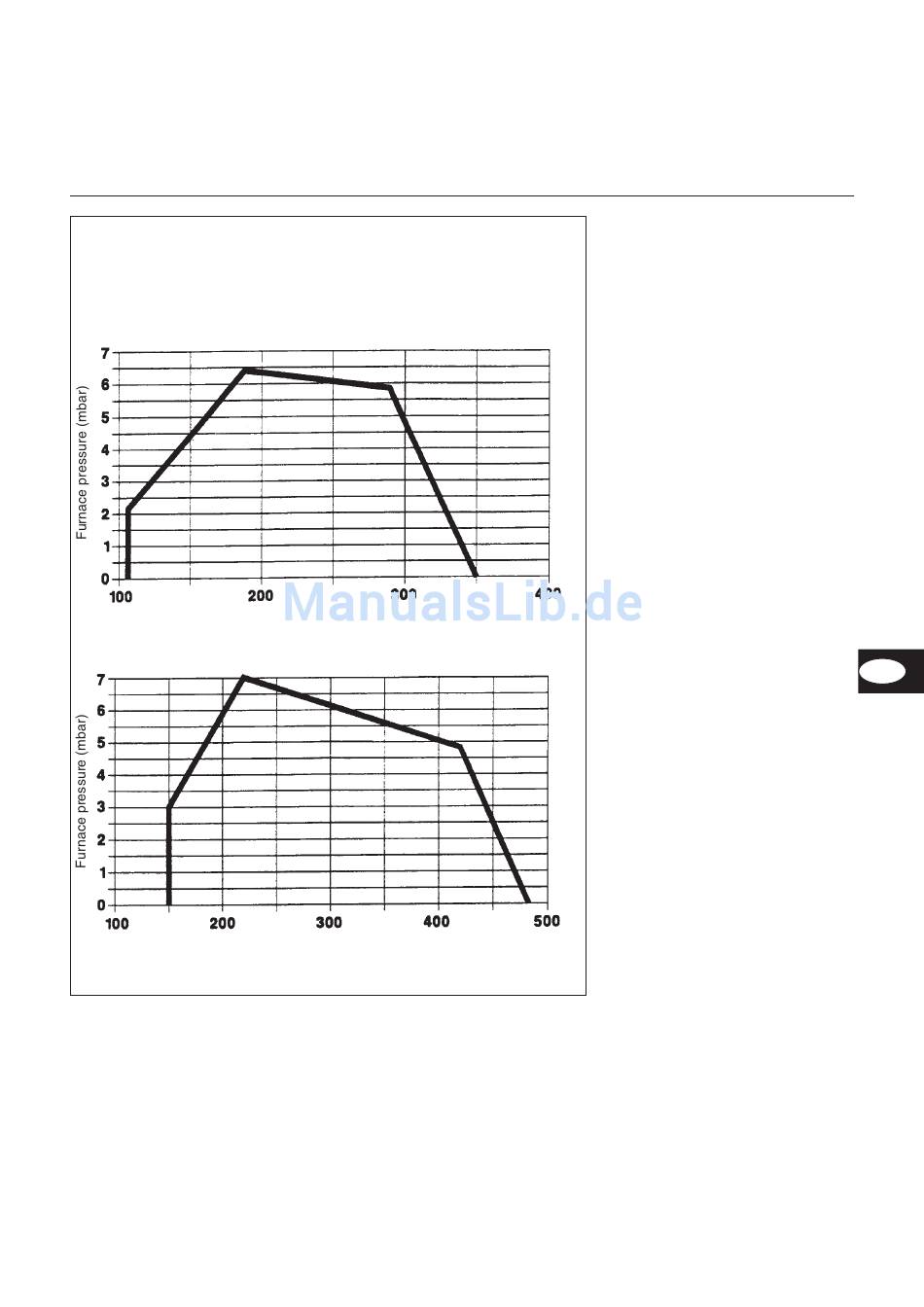

The power graph shows the fuel mass flow as a function of furnace pressure. It
corresponds to maximum values in accordance with EN 267, measured at the test
blast tube.
Boiler efficiency must be taken into account when selecting a burner.
VECTRON L 04.350 DUO
Burner output (kW)
VECTRON L 04.480 DUO
Burner output (kW)
Note on type designation: L = Manufacturer's designation mark
04 = Size
350 = Power rating
DUO = two-stage
KN = normal head length
KL = long head length
08/2005 - Art. Nr. 13 018 076A
Technical data
Combustion heat output
L 04.350 DUO 110-350 kW
L 04.480 DUO 150-480 kW
Fuel mass flow
L 04.350 DUO
L 04.480 DUO 12,5 - 40 kg/h
Mode of operation
Fuel EL heating oil
conforming to
DIN 51 603
L 04.350 DUO
L 04.480 DUO
Motor 230 V, 50 Hz.,
480 W, 2800 1/min
Pump
L 04.350 DUO
L 04.480 DUO
Servomotor
L 04.350 DUO SQN75.244A26
L 04.480 DUO SQN75.294A26
Nozzles
Flexible hoses R / " x 1500 mm
3
8
Ignition transformer
Weight
Scope of delivery
The burner pack also contains:
1 burner flange with gasket
1 bag of fixing devices
1 technical documentation wallet
The following tools are required for
burner assembly:
open-ended spanner SW 10
–
open-ended spanner SW 12
–
open-ended spanner SW 13
–
open-ended spanner SW 16
–
open-ended spanner SW 19
–
screwdrivers
–
hexagon screwdriver SW4
–
hexagon screwdriver SW6
–
hexagon screwdriver SW8
–
nozzle mounting key SW16
–
phase tester
–
9 - 30 kg/h
two-stage
LOA 24
LAL 1.25
A2L65D
AL65C
built in
ZM 20/10
30 kg
EN
