Abmessungen Der Ncs2-Befestigung - Shure Microflex Wireless-Serie Bedienungsanleitung

Montage

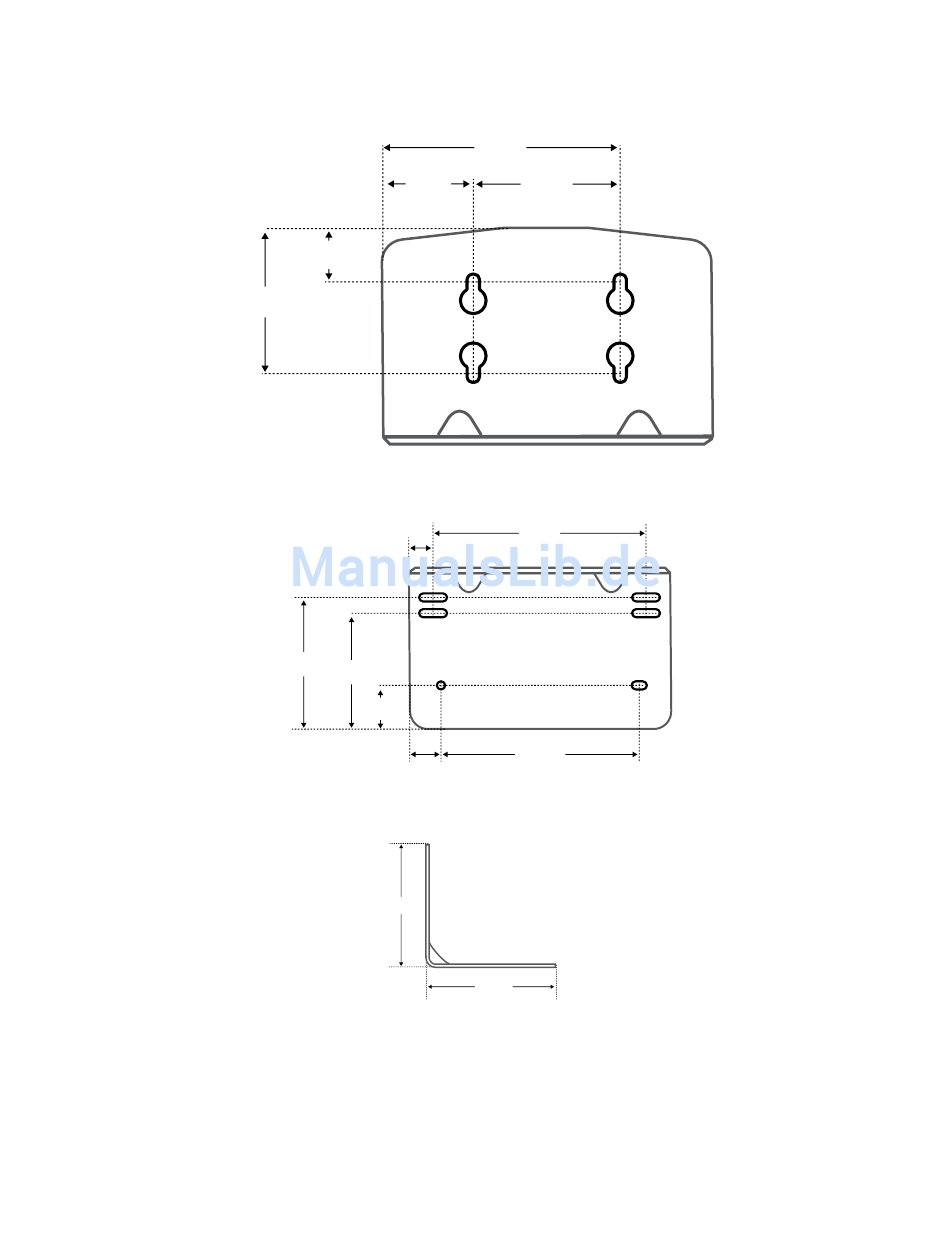

Abmessungen der NCS2-Befestigung

39
16 mm
[0.630"]
16 mm
46 mm
[0.630"]
[1.811"]
46 mm
[1.811"]
16 mm
[0.630"]
46 mm
[1.811"]
12 mm
[0.472"]
12 mm
[0.472"]
12 mm
[0.472"]
67 mm
57 mm
[2.638"]
[2.244"]
21 mm
67 mm
[0.827"]
57 mm
[2.638"]
67 mm
[2.244"]
57 mm
[2.638"]
21 mm
[2.244"]
13.1 mm
[0.827"]
[0.516"]
13.1 mm
21 mm
[0.516"]
[0.827"]
??
75 mm
[2.953"]
75 mm
[2.953"]
Gesamtabmessungen
95 mm
[3.740"]
35 mm 60 mm
[1.378"] [2.362"]
95 mm
[3.740"]
35 mm
60 mm
[1.378"] [2.362"]
95 mm
[3.740"]
35 mm 60 mm
[1.378"] [2.362"]
Seitenansicht
106 mm
106 mm
[4.173"]
[4.173"]
106 mm
[4.173"]
98.26 mm
[3.868"]
98.26 mm
[3.868"]
Draufsicht
98.26 mm
[3.868"]
80 mm
[3.150"]
80 mm
[3.150"]
