Shure Microflex Wireless-Serie Bedienungsanleitung Seite 35

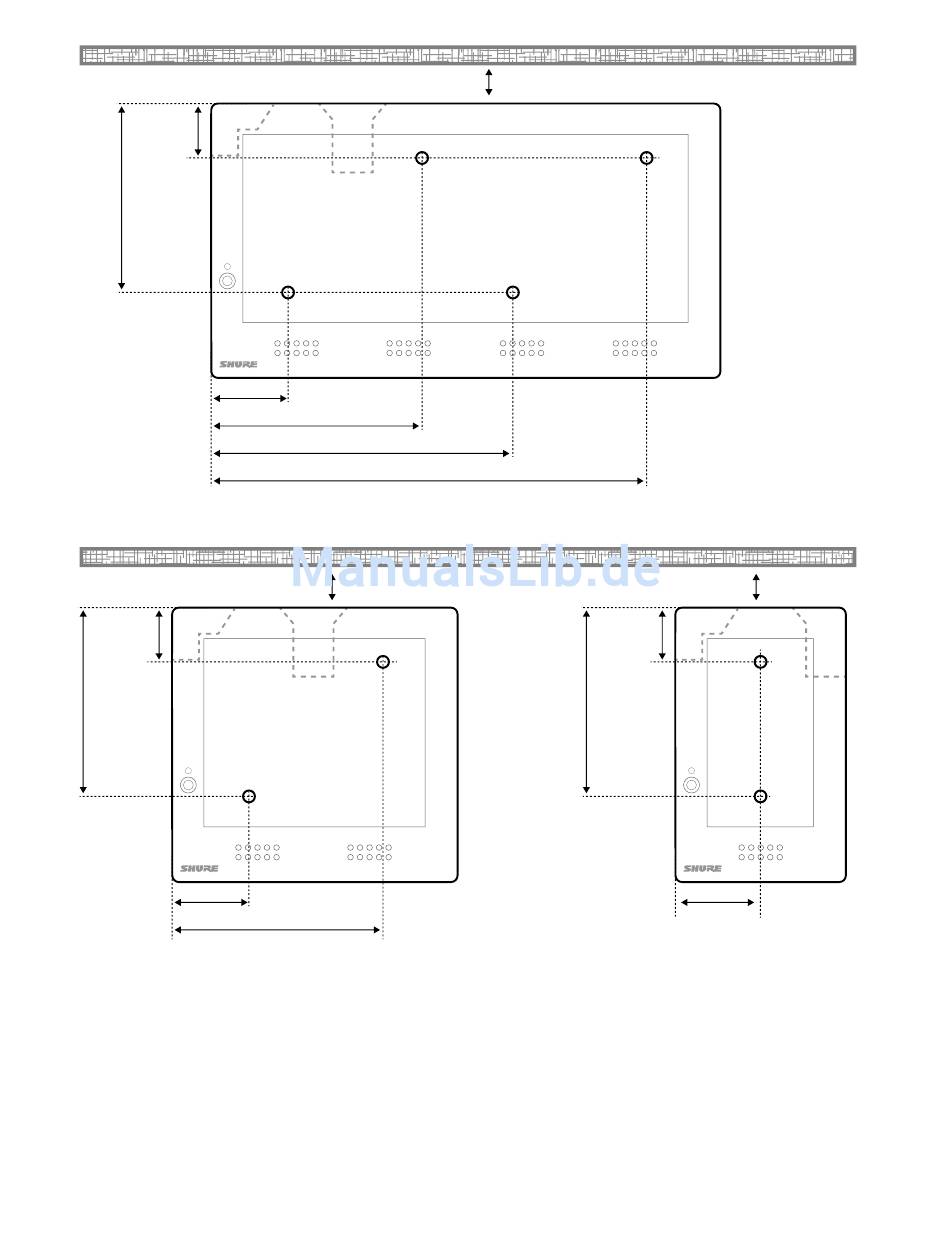

Montage
36.6 mm
[1.441"]
126.6 mm
[4.984"]
36.6 mm
[1.441"]
126.6 mm
[4.984"]
51.4 mm
[2.025"]
35
>40 mm [1.57"]
51.4 mm
[2.025"]
141.4 mm
[5.568"]
>40 mm [1.57"]
NCS4
141.4 mm
[5.568"]
NCS-Montageschablone
Hinter der Ladestation Platz für
Kabel lassen.
NCS8
201.4 mm
[7.931"]
291.4 mm
[11.474"]
21.8 mm
[0.858"]
120.0 mm
[4.726"]
>40 mm [1.57"]
NCS2
51.1 mm
[2.013"]
