Reference conditions:
Container with a diameter of 1 meter
■
Central installation of the sensor
■
Minimum distance to built-in components > 300 mm
■
Distance from the end of probe to tank bottom > 15 mm
■
Air humidity 65% +/- 20%
■
Temperature: +20°C +/- 5°C
■
Pressure 1013 mbar abs. +/- 20 mbar.
■
Container parameterization undertaken
■
Medium: water, Dielectricity constante = 80
■
Accuracy diagram in water (dielectric constante 80)
Messgenauigkeit in mm
25
10
0
–10
–20
Accuracy diagram in oil (dielectric constante ~3)
Messgenauigkeit in mm
25
10
0
–10
Reference conditions for oil are different:
Cylindrical container with diameter of 110 mm, centric installation of the sensor,
Distance between the probe tip to tank bottom >15 mm, flush mounted to the tank top, Container
parameterization undertaken.
48 8014638/ZQ14/2017-08-25 © SICK AG • Level sensors • Germany • Subject to change without notice
0
40 180
Sondenlänge in mm
0
40 180
Sondenlänge in mm

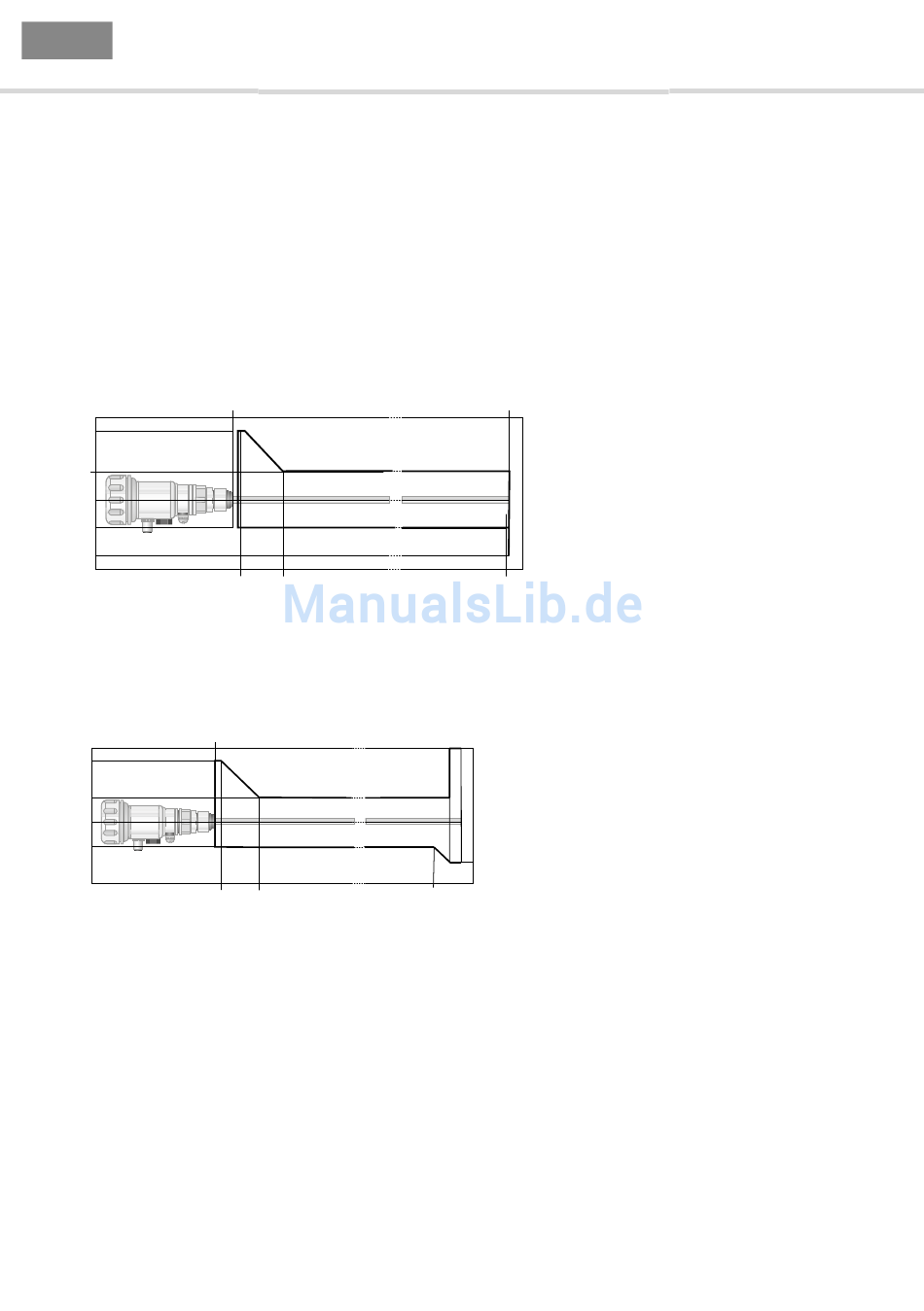

9 Technical data
L
L–10
L-60
L
+60
-40
L-80
LFP
