LFP

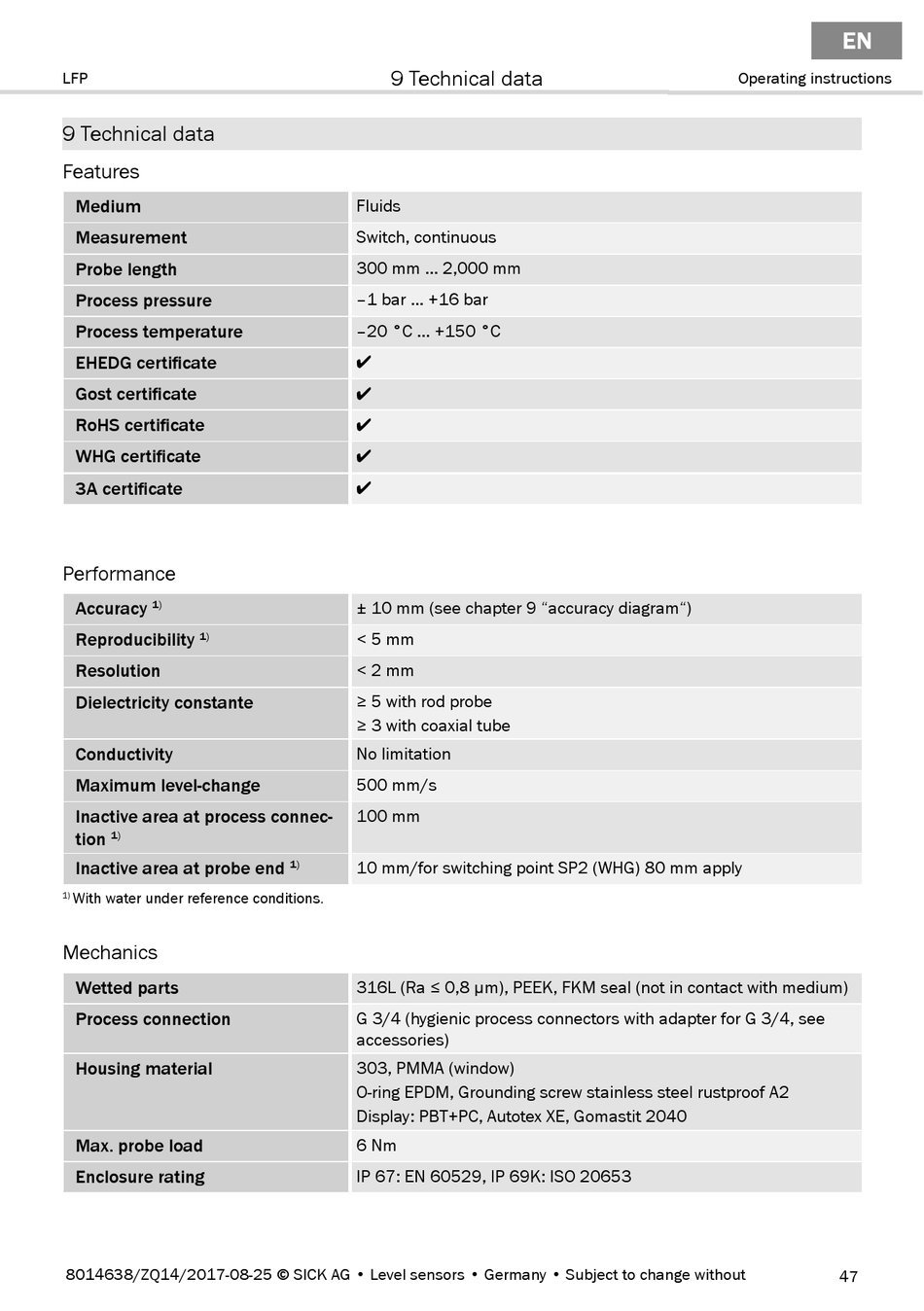

9 Technical data

Features
Medium
Measurement
Probe length
Process pressure
Process temperature
EHEDG certificate
Gost certificate
RoHS certificate
WHG certificate
3A certificate
Performance
Accuracy
1)
Reproducibility
1)
Resolution
Dielectricity constante
Conductivity
Maximum level-change
Inactive area at process connec-
tion
1)
Inactive area at probe end
With water under reference conditions.
1)
Mechanics
Wetted parts
Process connection
Housing material
Max. probe load
Enclosure rating
8014638/ZQ14/2017-08-25 © SICK AG • Level sensors • Germany • Subject to change without
9 Technical data
Fluids
Switch, continuous
300 mm ... 2,000 mm
–1 bar ... +16 bar
–20 °C ... +150 °C
l
l
l
l
l
± 10 mm (see chapter 9 "accuracy diagram")
< 5 mm
< 2 mm
≥ 5 with rod probe
≥ 3 with coaxial tube
No limitation
500 mm/s
100 mm
10 mm/for switching point SP2 (WHG) 80 mm apply
1)
316L (Ra ≤ 0,8 µm), PEEK, FKM seal (not in contact with medium)
G 3/4 (hygienic process connectors with adapter for G 3/4, see
accessories)
303, PMMA (window)
O-ring EPDM, Grounding screw stainless steel rustproof A2
Display: PBT+PC, Autotex XE, Gomastit 2040
6 Nm
IP 67: EN 60529, IP 69K: ISO 20653
EN
Operating instructions
47
