2 DESCRIPTION

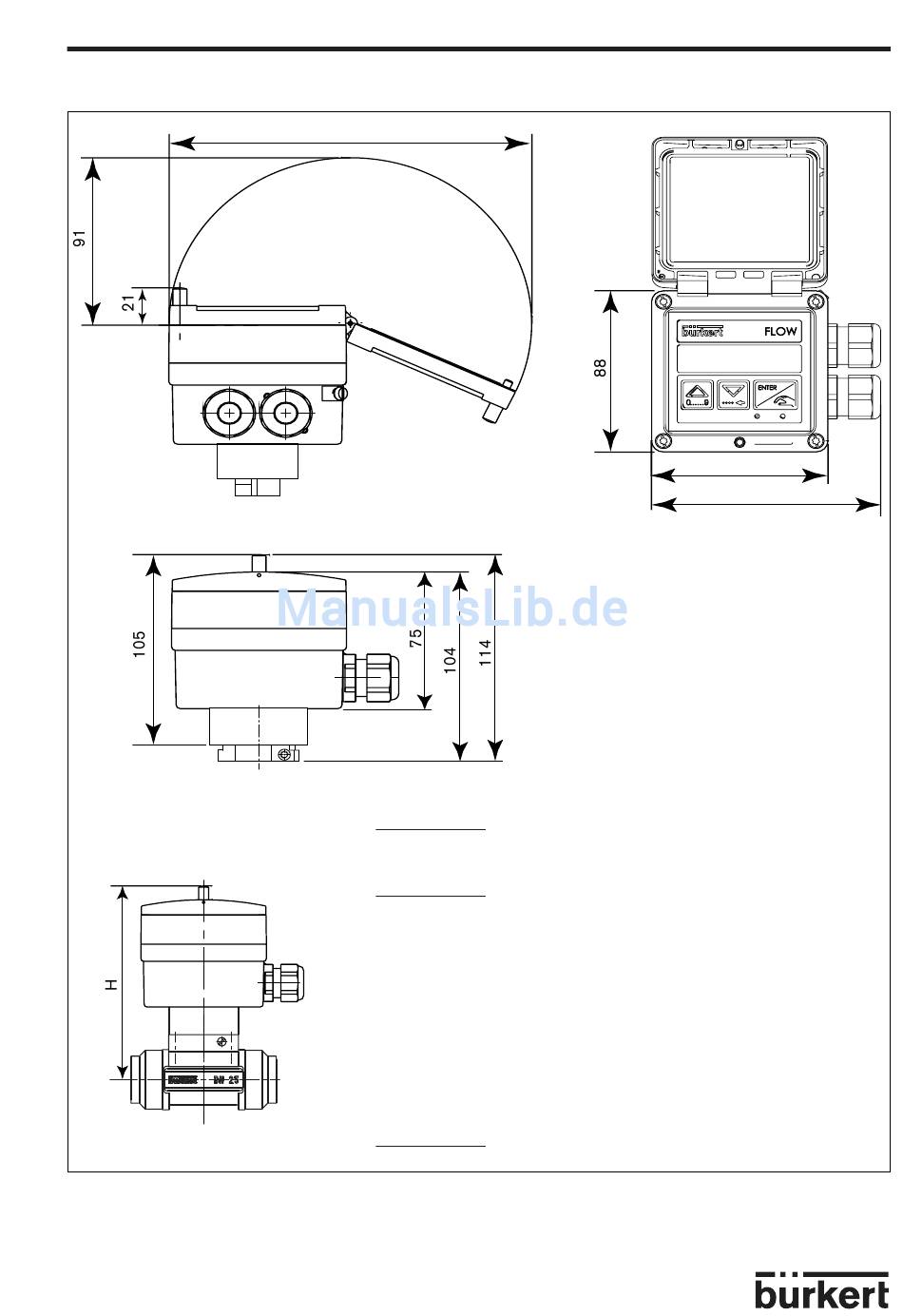

2.3 Batch Controler 8035 INLINE external dimensions (mm)
Fig. 1 Batch Controler 8035 INLINE external dimensions
BATCH CONTROLLER 8035
180
DN H
mm
06 134
08 134
15 139
20 137
25 137
32 140
40 144
50 151
65 151
E-5-
The height H is independant from the
connection type and material of the
fitting.
88
116
