MSA501-S(SSI)
24 Service mode (RS485 mode)
NOTICE

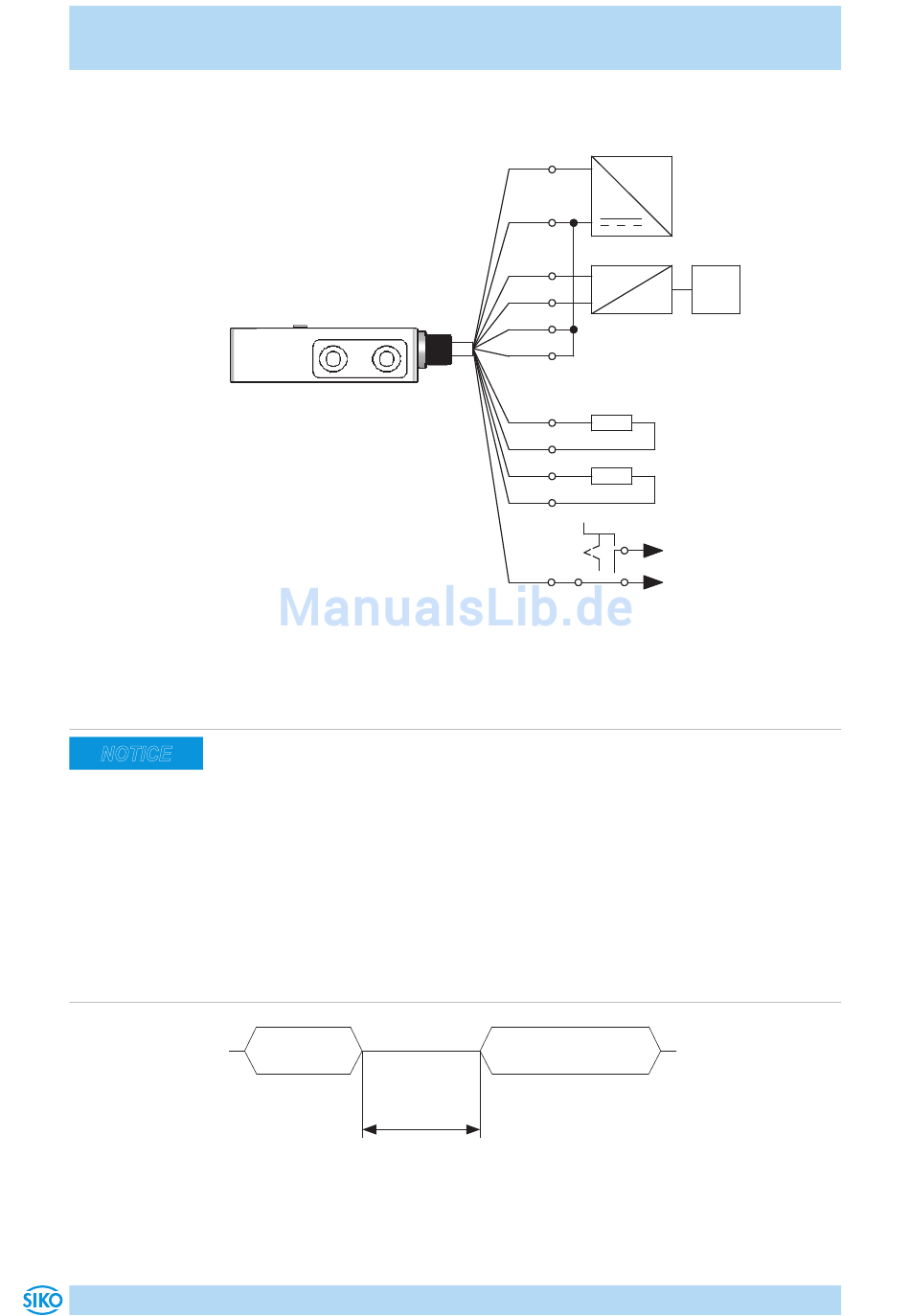

9.1 Application MSA501 with service mode

Fig. 2: Example with service mode

9.2 List of commands

Hint to the parameter "ResponseDelay": You can use this parameter to set
within defined limits the response time to a request received via the serial
interface. The numerical value to be entered is a multiple of the encoder-
internal cycle time (approx. 21 μs). The applicable value range parame-
ters will result in a range of (response) delay time of approx. 21 μs up to
5.25 ms.
With factory settings (or after executing the "S11100" command[Set
encoder to default values]) this value is set to 6 (corresponding to a delay
time of approx. 126 μs).
Example: With a numerical value of 5, the encoder will send its response
telegram only after approx. 105 μs.
Data telegram
to sensor
t
ResponseDelay
MSA501-S(SSI) · Date 06.06.2016 · Art. No. 85615 · Mod. status 152/16
+UB
~
GND
D+
D-
T+
RS485/RS232-
T-
converter
Terminating resistors
120 ... 150 Ohm
A
/A
B
/B
GND
Config
+UB
Response telegram
from sensor
English
PC
