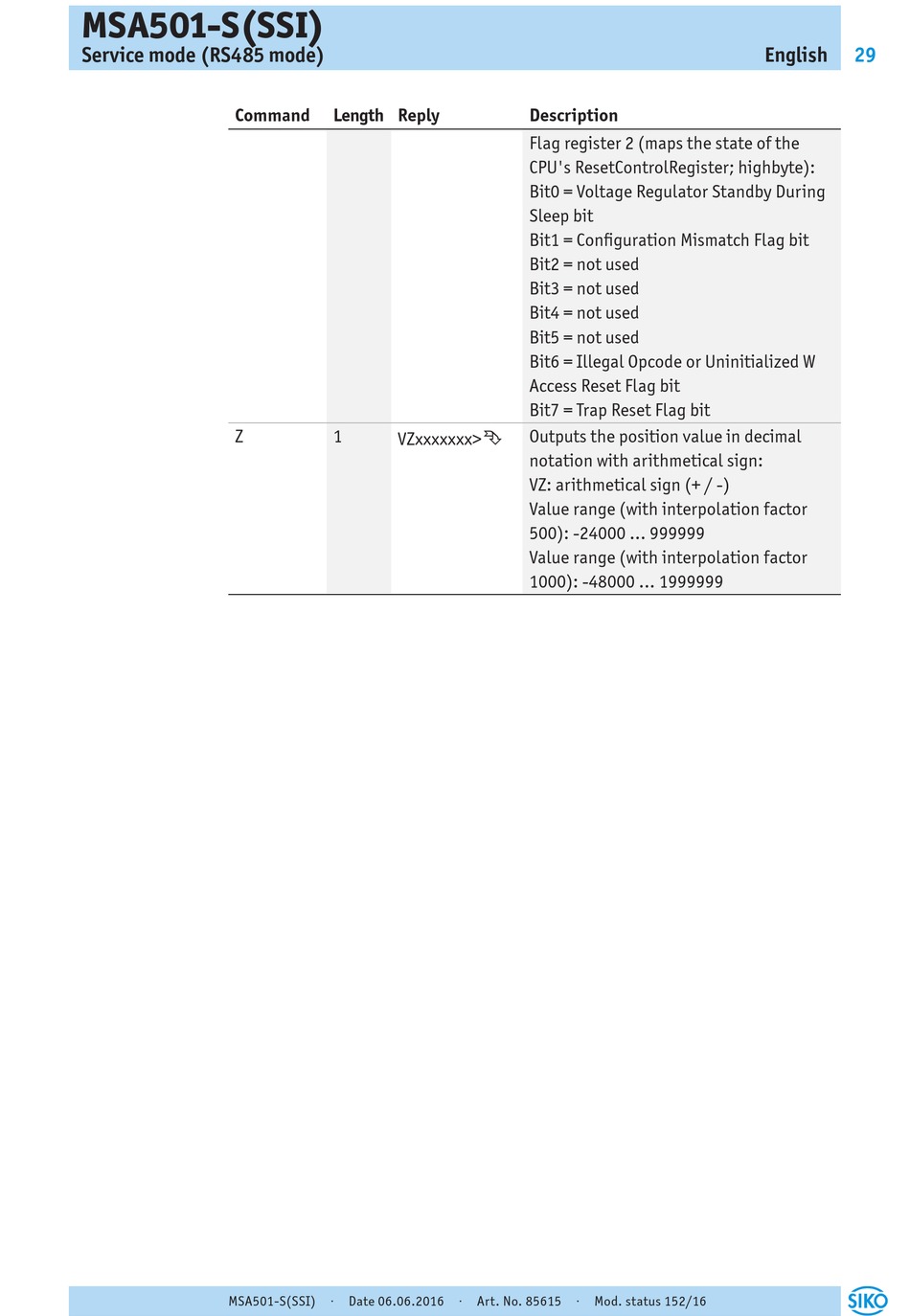

MSA501-S(SSI)
Service mode (RS485 mode)
Command
Z
MSA501-S(SSI) · Date 06.06.2016 · Art. No. 85615 · Mod. status 152/16
Length Reply
1
Ê
VZxxxxxxx>
Description
Flag register 2 (maps the state of the
CPU's ResetControlRegister; highbyte):
Bit0 = Voltage Regulator Standby During
Sleep bit
Bit1 = Configuration Mismatch Flag bit
Bit2 = not used
Bit3 = not used
Bit4 = not used
Bit5 = not used
Bit6 = Illegal Opcode or Uninitialized W
Access Reset Flag bit
Bit7 = Trap Reset Flag bit
Outputs the position value in decimal
notation with arithmetical sign:
VZ: arithmetical sign (+ / -)
Value range (with interpolation factor
500): -24000 ... 999999
Value range (with interpolation factor
1000): -48000 ... 1999999
