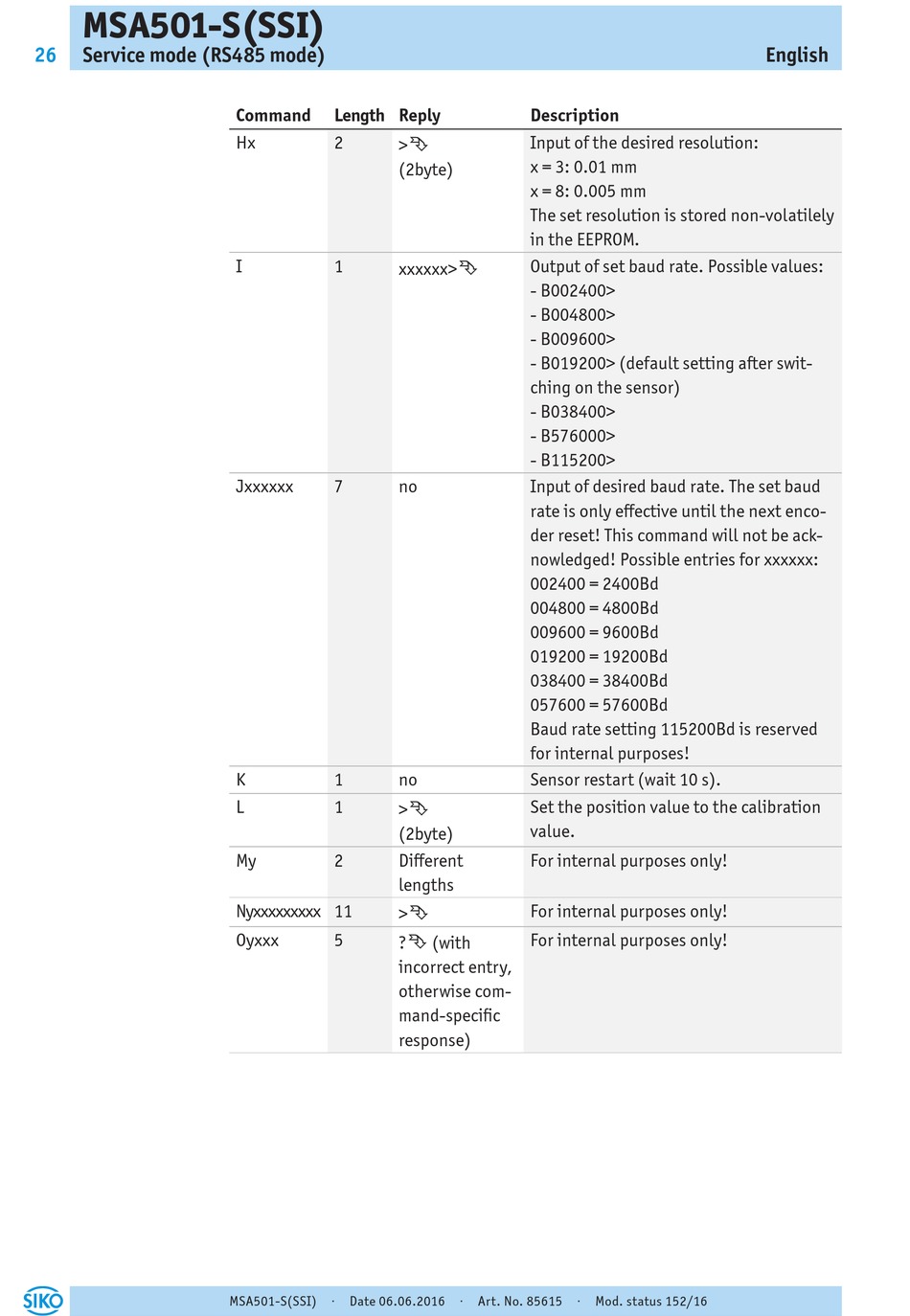

MSA501-S(SSI)
26 Service mode (RS485 mode)
Command Length Reply
Hx 2
>
(2byte)
I 1
xxxxxx>
Jxxxxxx 7 no
K 1 no
L 1
>
(2byte)
My 2 Different
lengths
Nyxxxxxxxxx 11
>
Oyxxx 5
?
incorrect entry,
otherwise com-
mand-specific
response)
MSA501-S(SSI) · Date 06.06.2016 · Art. No. 85615 · Mod. status 152/16
Description
Input of the desired resolution:
Ê
x = 3: 0.01 mm
x = 8: 0.005 mm
The set resolution is stored non-volatilely
in the EEPROM.
Output of set baud rate. Possible values:
Ê
- B002400>
- B004800>
- B009600>
- B019200> (default setting after swit-
ching on the sensor)
- B038400>
- B576000>
- B115200>
Input of desired baud rate. The set baud
rate is only effective until the next enco-
der reset! This command will not be ack-
nowledged! Possible entries for xxxxxx:
002400 = 2400Bd
004800 = 4800Bd
009600 = 9600Bd
019200 = 19200Bd
038400 = 38400Bd
057600 = 57600Bd
Baud rate setting 115200Bd is reserved
for internal purposes!
Sensor restart (wait 10 s).
Set the position value to the calibration
Ê
value.
For internal purposes only!
For internal purposes only!
Ê
For internal purposes only!
Ê
(with
