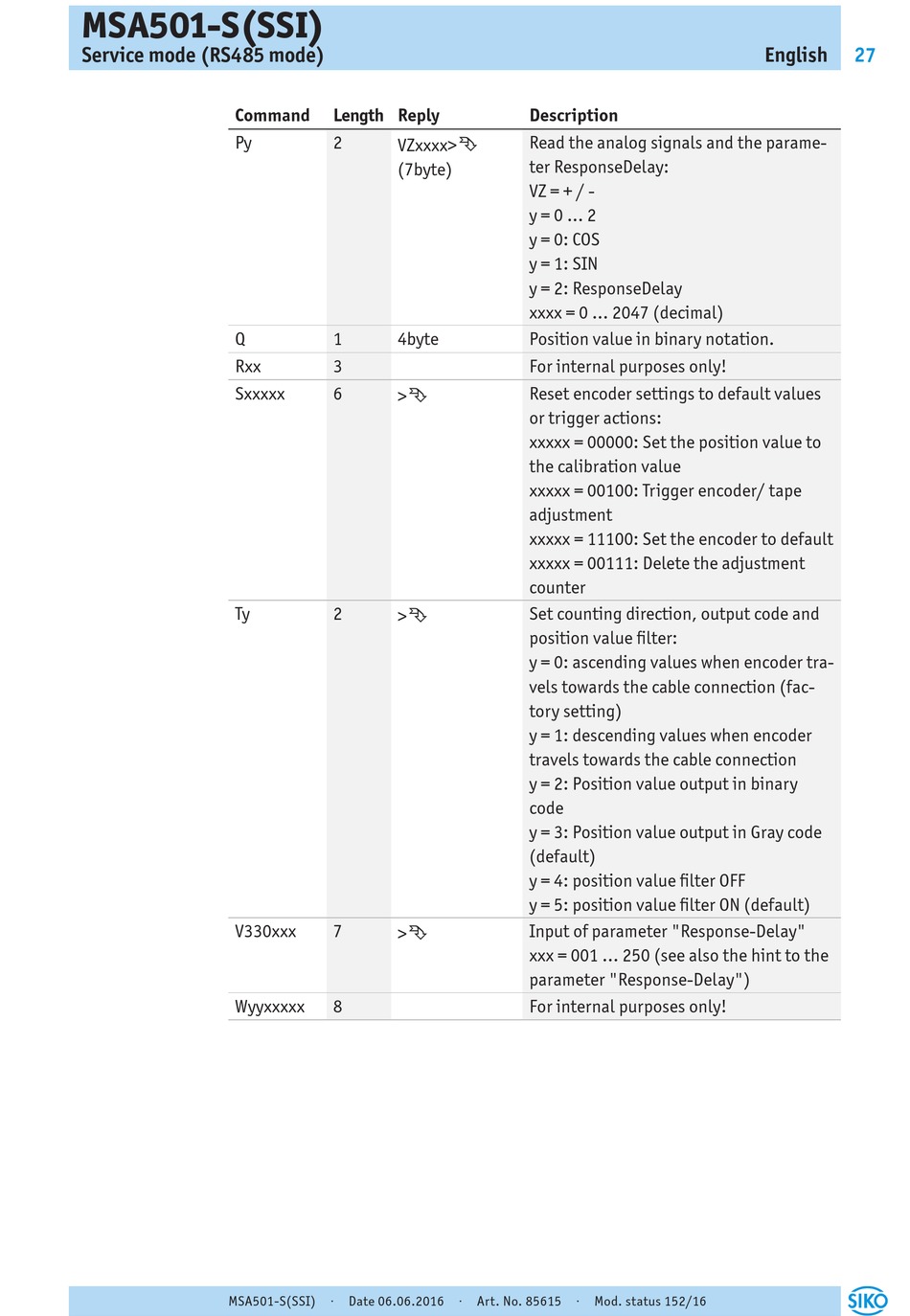

Siko MSA501 Originalmontageanleitung Seite 27

MSA501-S(SSI)
Service mode (RS485 mode)
Command
Py
Q
Rxx
Sxxxxx
Ty
V330xxx
Wyyxxxxx
MSA501-S(SSI) · Date 06.06.2016 · Art. No. 85615 · Mod. status 152/16
Length Reply
2
Ê
VZxxxx>
(7byte)
1 4byte
3
6
Ê
>
2
Ê
>
7
Ê
>
8
Description
Read the analog signals and the parame-
ter ResponseDelay:
VZ = + / -
y = 0 ... 2
y = 0: COS
y = 1: SIN
y = 2: ResponseDelay
xxxx = 0 ... 2047 (decimal)
Position value in binary notation.
For internal purposes only!
Reset encoder settings to default values
or trigger actions:
xxxxx = 00000: Set the position value to
the calibration value
xxxxx = 00100: Trigger encoder/ tape
adjustment
xxxxx = 11100: Set the encoder to default
xxxxx = 00111: Delete the adjustment
counter
Set counting direction, output code and
position value filter:
y = 0: ascending values when encoder tra-
vels towards the cable connection (fac-
tory setting)
y = 1: descending values when encoder
travels towards the cable connection
y = 2: Position value output in binary
code
y = 3: Position value output in Gray code
(default)
y = 4: position value filter OFF
y = 5: position value filter ON (default)
Input of parameter "Response-Delay"
xxx = 001 ... 250 (see also the hint to the
parameter "Response-Delay")
For internal purposes only!
English 27
