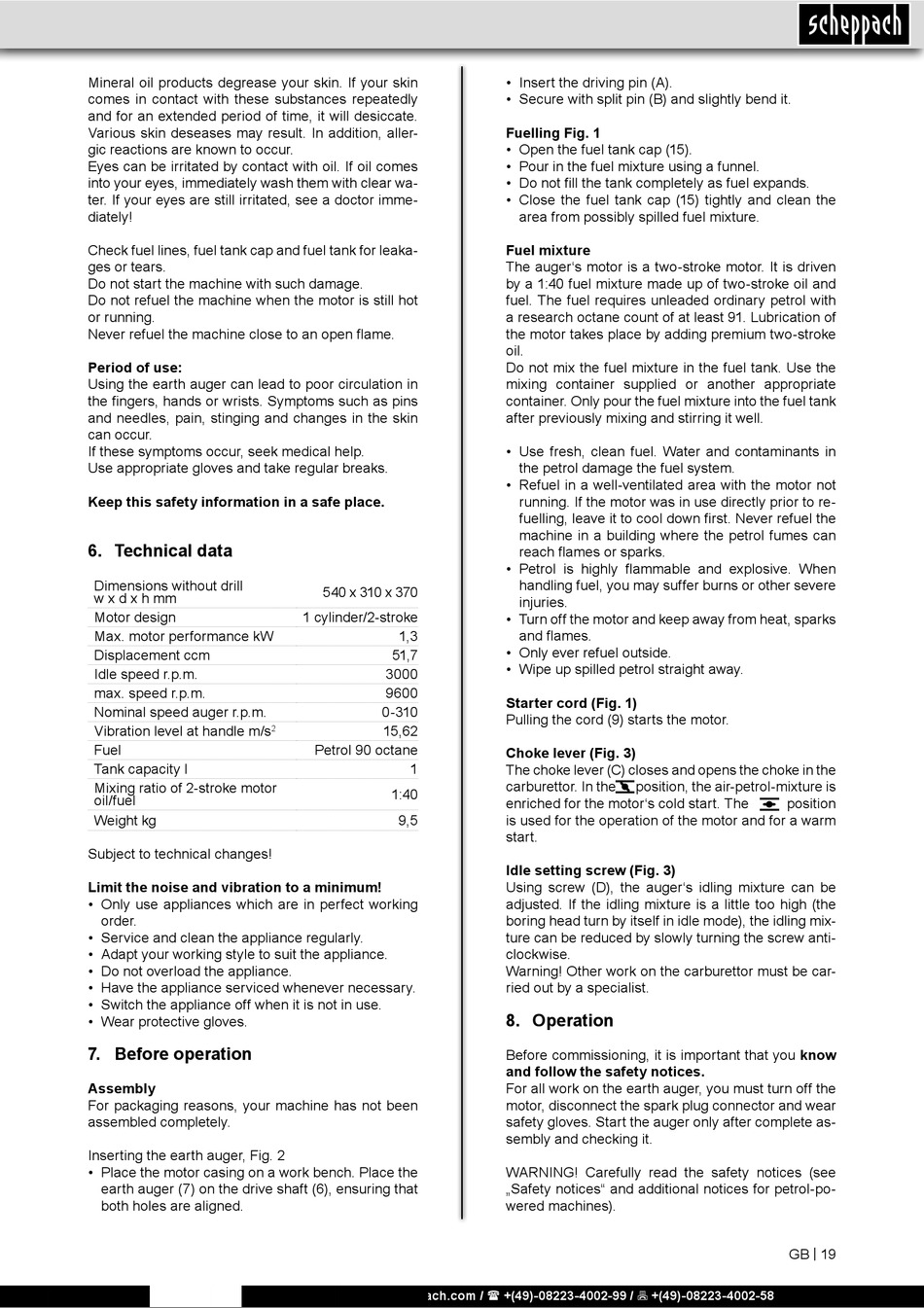

Mineral oil products degrease your skin. If your skin
comes in contact with these substances repeatedly
and for an extended period of time, it will desiccate.
Various skin deseases may result. In addition, aller-
gic reactions are known to occur.
Eyes can be irritated by contact with oil. If oil comes
into your eyes, immediately wash them with clear wa-
ter. If your eyes are still irritated, see a doctor imme-
diately!
Check fuel lines, fuel tank cap and fuel tank for leaka-
ges or tears.
Do not start the machine with such damage.
Do not refuel the machine when the motor is still hot
or running.
Never refuel the machine close to an open flame.
Period of use:
Using the earth auger can lead to poor circulation in
the fingers, hands or wrists. Symptoms such as pins
and needles, pain, stinging and changes in the skin
can occur.
If these symptoms occur, seek medical help.
Use appropriate gloves and take regular breaks.
Keep this safety information in a safe place.

6. Technical data

Dimensions without drill
w x d x h mm
Motor design
Max. motor performance kW
Displacement ccm
Idle speed r.p.m.
max. speed r.p.m.
Nominal speed auger r.p.m.
Vibration level at handle m/s
Fuel
Tank capacity l
Mixing ratio of 2-stroke motor
oil/fuel
Weight kg
Subject to technical changes!
Limit the noise and vibration to a minimum!
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

7. Before operation

Assembly
For packaging reasons, your machine has not been
assembled completely.
Inserting the earth auger, Fig. 2
• Place the motor casing on a work bench. Place the
earth auger (7) on the drive shaft (6), ensuring that
both holes are aligned.
