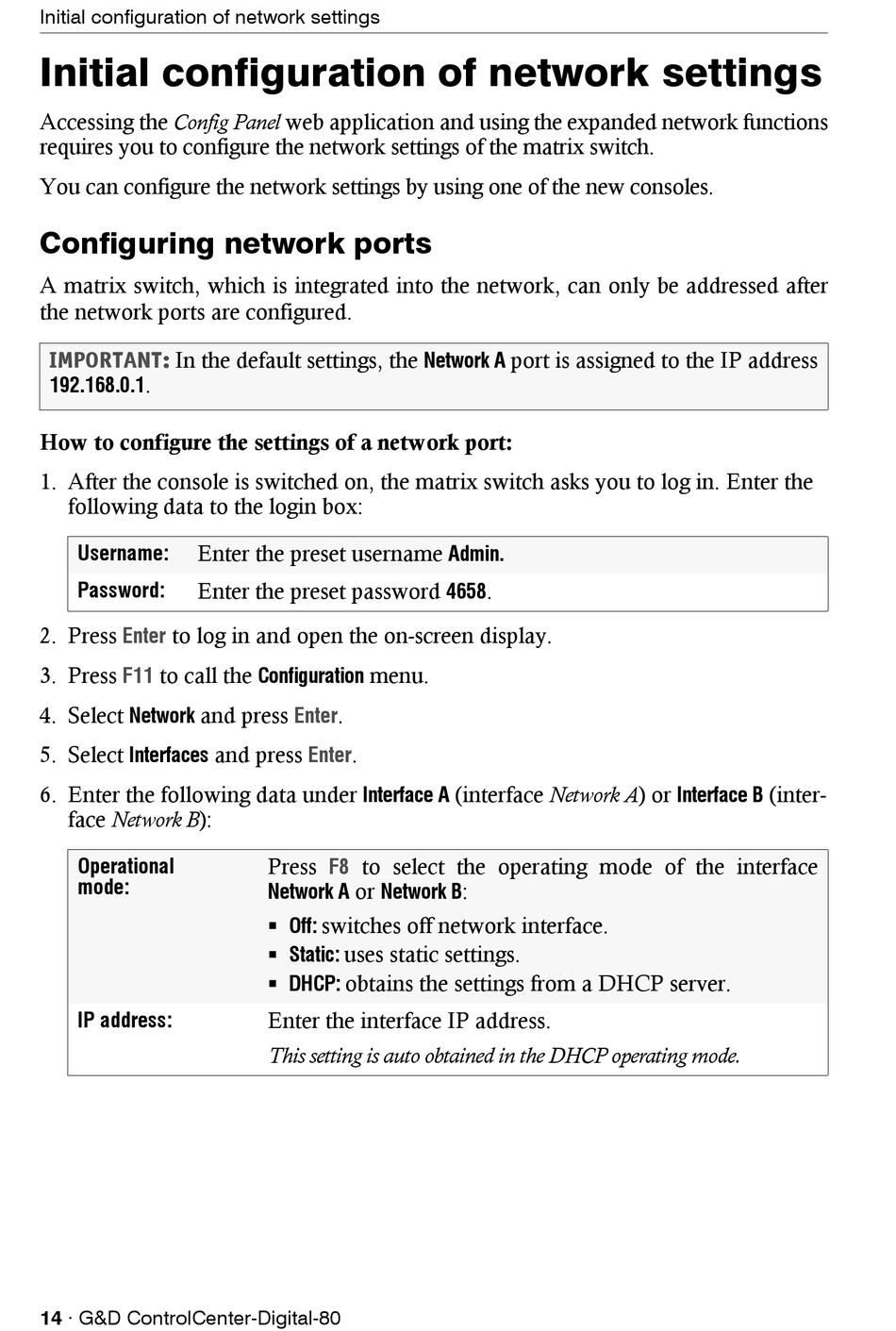

Initial configuration of network settings

Initial configuration of network settings
Accessing the Config Panel web application and using the expanded network functions
requires you to configure the network settings of the matrix switch.
You can configure the network settings by using one of the new consoles.

Configuring network ports

A matrix switch, which is integrated into the network, can only be addressed after
the network ports are configured.
IMPORTANT:
In the default settings, the
192.168.0.1 .
How to configure the settings of a network port:
1. After the console is switched on, the matrix switch asks you to log in. Enter the
following data to the login box:
Username: Enter the preset username
Password: Enter the preset password
2. Press Enter to log in and open the on-screen display.
3. Press F11 to call the
4. Select Network and press
5. Select Interfaces
6. Enter the following data under
face Network B):
Operational
mode:
IP address:
14 · G&D ControlCenter-Digital-80
Configuration menu.
Enter .
and press Enter .
Interface A
Press to select the operating mode of the interface
F8
Network A or Network B
 Off: switches off network interface.
uses static settings.
 Static:
 DHCP: obtains the settings from a DHCP server.
Enter the interface IP address.
This setting is auto obtained in the DHCP operating mode.
Network A port is assigned to the IP address
Admin.
.
4658
(interface Network A) or
:
Interface B (inter-
