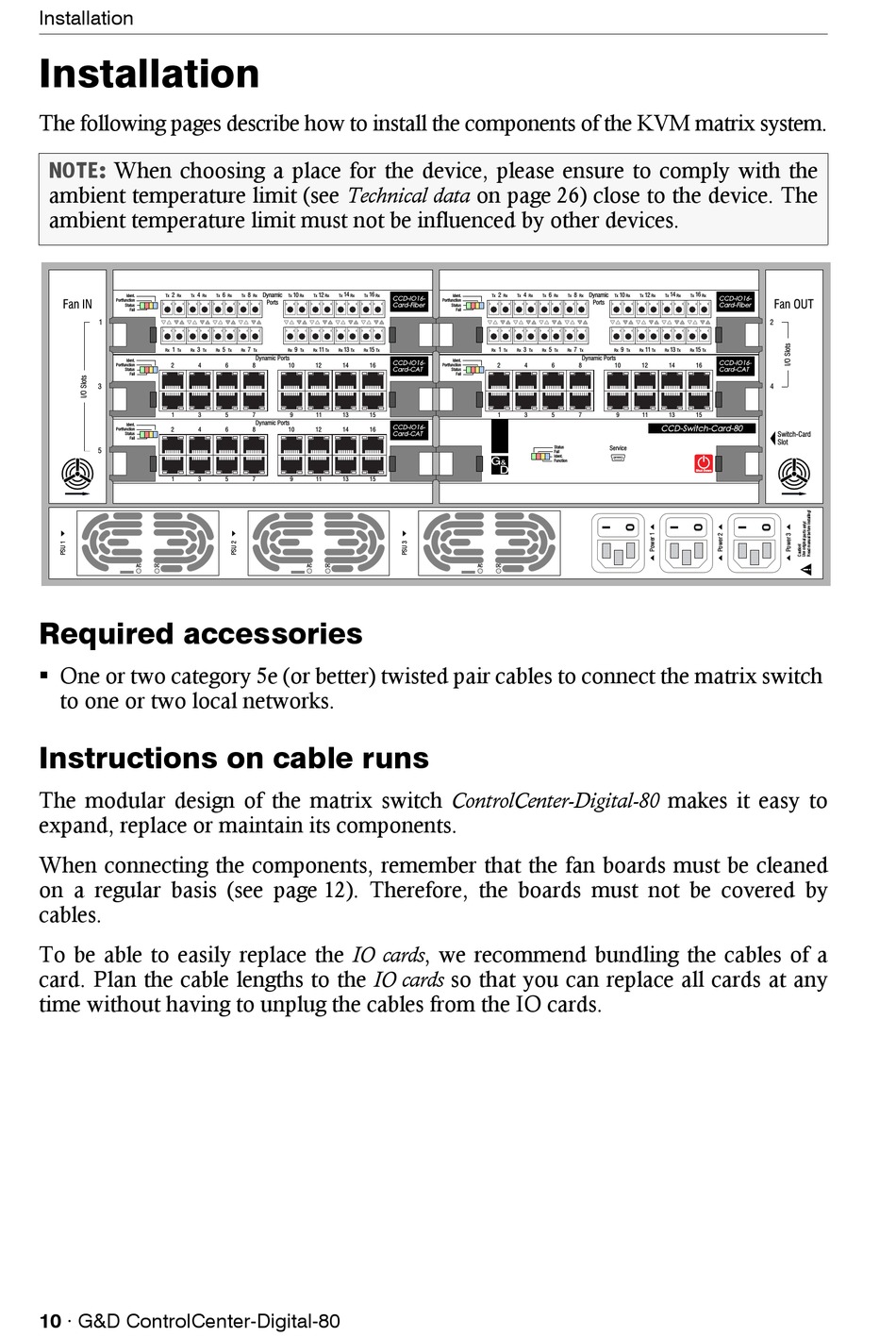

Installation

Installation
The following pages describe how to install the components of the KVM matrix system.
NOTE: When choosing a place for the device, please ensure to comply with the
ambient temperature limit (see Technical data on page 26) close to the device. The
ambient temperature limit must not be influenced by other devices.
2 4
Ident. Tx Rx Tx Rx
Portfunction
Status
Fail
1
1 3
Rx Tx Rx Tx
Ident.
Portfunction 2 4
Status
Fail
3
1 3
Ident.
Portfunction 2 4
Status
Fail
5
1 3
AC DC

Required accessories

 One or two category 5e (or better) twisted pair cables to connect the matrix switch
to one or two local networks.

Instructions on cable runs

The modular design of the matrix switch ControlCenter-Digital-80 makes it easy to
expand, replace or maintain its components.
When connecting the components, remember that the fan boards must be cleaned
on a regular basis (see page 12). Therefore, the boards must not be covered by
cables.
To be able to easily replace the IO cards, we recommend bundling the cables of a
card. Plan the cable lengths to the IO cards so that you can replace all cards at any
time without having to unplug the cables from the IO cards.
10 · G&D ControlCenter-Digital-80
6 8 Dynamic 10 12 14 16
Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx
Ports
5 7 9 11 13 15
Rx Tx Rx Tx Rx Tx Rx Tx Rx Tx Rx Tx
Dynamic Ports
6 8 10 12 14 16
5 7 9 11 13 15
Dynamic Ports
6 8 10 12 14 16
5 7 9 11 13 15
AC DC
2 4 6 8 Dynamic
Ident. Tx Rx Tx Rx Tx Rx Tx Rx
Portfunction
Ports
Status
Fail
1 3 5 7
Rx Tx Rx Tx Rx Tx Rx Tx
Dynamic Ports
Ident.
Portfunction 2 4 6 8
Status
Fail
1 3 5 7
Status Service
Fail
Ident.
Function
AC DC
10 12 14 16
Tx Rx Tx Rx Tx Rx Tx Rx
2
9 11 13 15
Rx Tx Rx Tx Rx Tx Rx Tx
10 12 14 16
4
9 11 13 15
Switch-Card
Slot
Shut Down
