Matrix switch »ControlCenter-Digital«

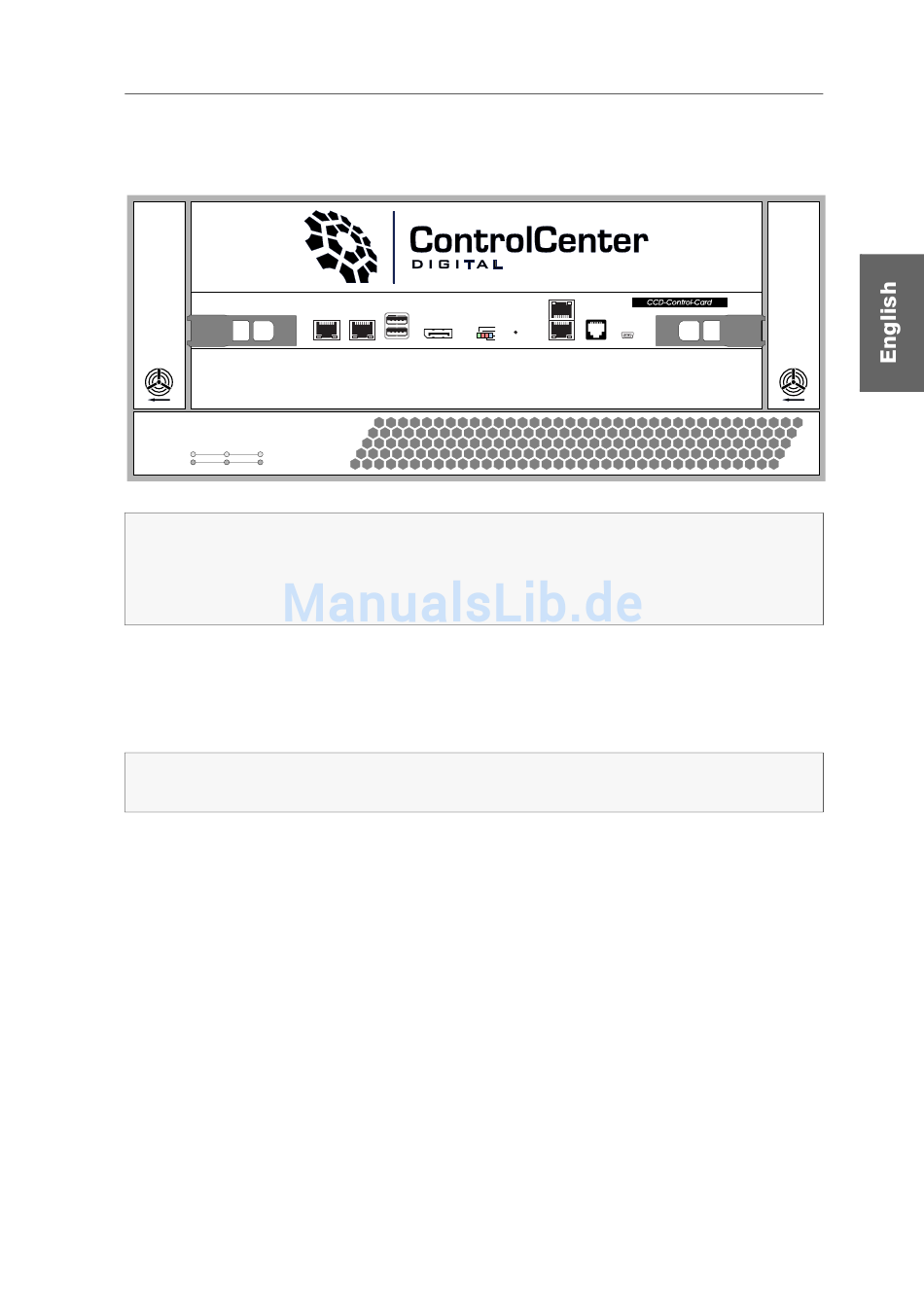

The matrix switch ControlCenter-Digital-80 is the central part of a KVM matrix system.
Fan OUT
1 2 3
AC ok
DC ok
NOTE:
A KVM matrix system lets you switch the KVM signals of a connected com-
puter (target) to a console within the system.
The video image of the accessed computer is displayed on the console monitor.
You can operate the computer with keyboard and mouse of the console.
You can equip the matrix switch ControlCenter-Digital-80 with up to 5 IO cards. Each
IO card provides 16 Dynamic Ports to connect user modules or target modules.
You can use the 80 dynamic ports of a fully equipped matrix switch to connect
either user modules or target modules.
NOTE: The chapter Modular design of the matrix switch on page 9 provides detailed
information about the modular setup.
The matrix switch ControlCenter-Digital-80 is compatible with the matrix switches,
user modules and target modules of the DVICenter series. You can combine any
components of both series.
USB
Network A Network B DisplayPort
Matrix switch »ControlCenter-Digital«
Bus IN
RS232 Service
Status
Fail Ctrl
Ident.
Fail Comm.
Bus OUT
G&D ControlCenter-Digital-80 · 3
