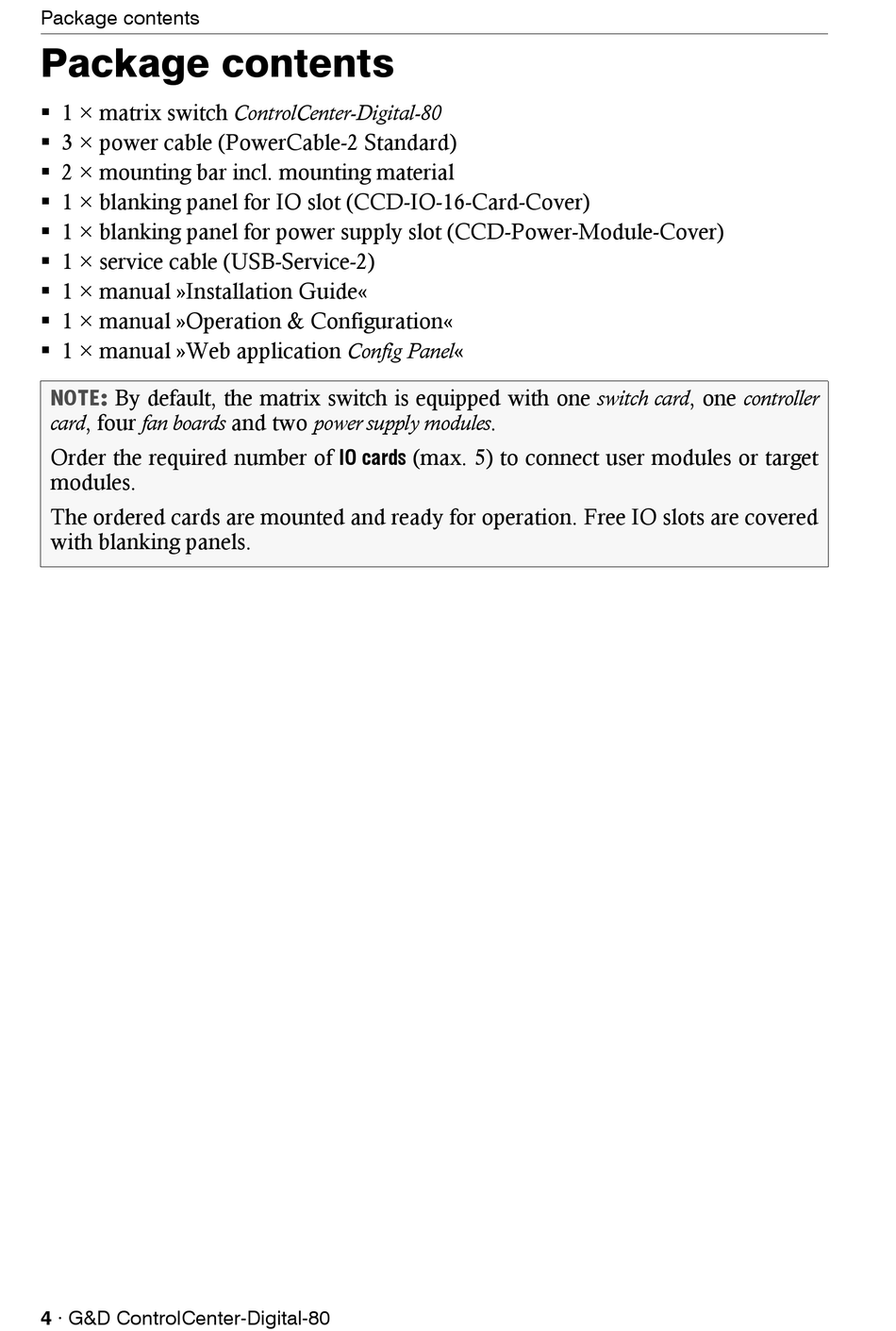

Package contents

Package contents
 1 × matrix switch ControlCenter-Digital-80
 3 × power cable (PowerCable-2 Standard)
 2 × mounting bar incl. mounting material
 1 × blanking panel for IO slot (CCD-IO-16-Card-Cover)
 1 × blanking panel for power supply slot (CCD-Power-Module-Cover)
 1 × service cable (USB-Service-2)
 1 × manual »Installation Guide«
 1 × manual »Operation & Configuration«
 1 × manual »Web application Config Panel«
NOTE: By default, the matrix switch is equipped with one switch card, one controller
card, four fan boards and two power supply modules.
Order the required number of
modules.
The ordered cards are mounted and ready for operation. Free IO slots are covered
with blanking panels.
4 · G&D ControlCenter-Digital-80
(max. 5) to connect user modules or target
IO cards
