Technical Data - G&D ControlCenter-Digital-80 Installationsanleitung

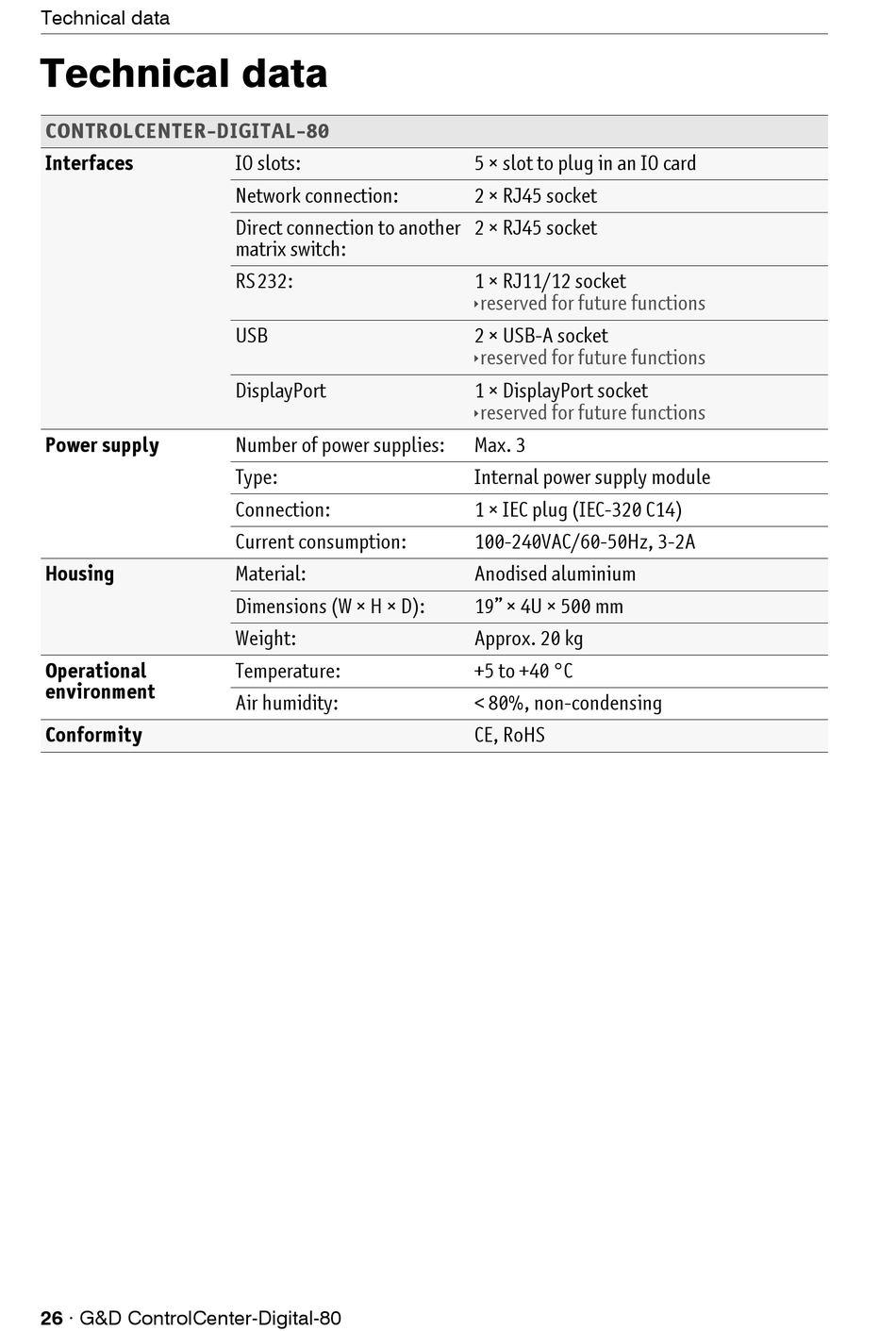

Technical data

Technical data
CONTROLCENTER-DIGITAL-80
Interfaces
Power supply
Housing
Operational
environment
Conformity
26 · G&D ControlCenter-Digital-80
IO slots:
Network connection:
Direct connection to another
matrix switch:
RS 232:
USB
DisplayPort
Number of power supplies:
Type:
Connection:
Current consumption:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
5 × slot to plug in an IO card
2 × RJ45 socket
2 × RJ45 socket
1 × RJ11/12 socket
reserved for future functions
2 × USB-A socket
reserved for future functions
1 × DisplayPort socket
reserved for future functions
Max. 3
Internal power supply module
1 × IEC plug (IEC-320 C14)
100-240VAC/60-50Hz, 3-2A
Anodised aluminium
19" × 4U × 500 mm
Approx. 20 kg
+5 to +40 °C
< 80%, non-condensing
CE, RoHS
