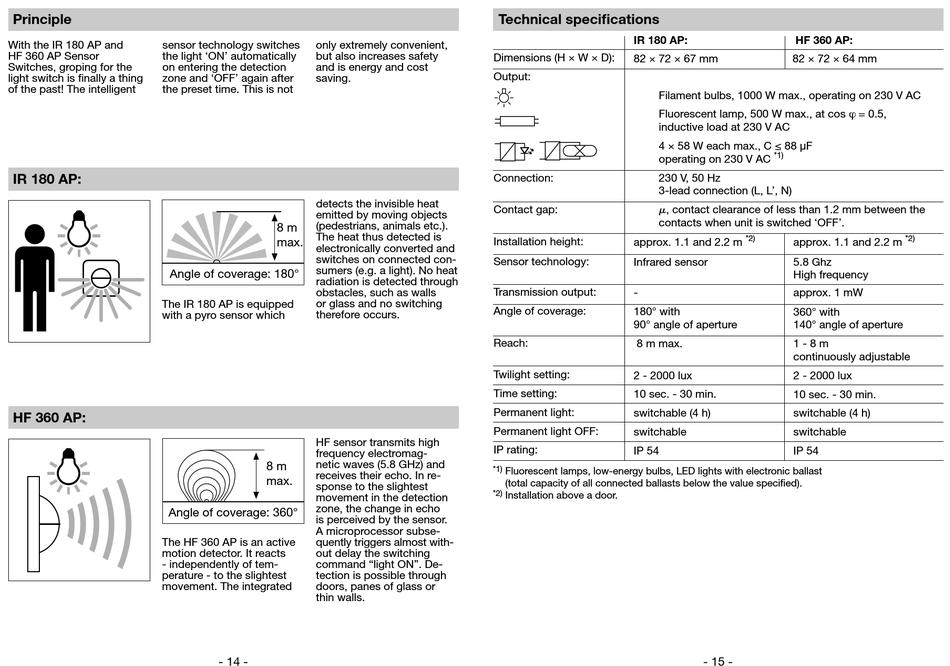

Principle
With the IR 180 AP and sensor technology switches
HF 360 AP Sensor the light 'ON' automatically
Switches, groping for the on entering the detection
light switch is finally a thing zone and 'OFF' again after
of the past! The intelligent the preset time. This is not
IR 180 AP:
Angle of coverage: 180°
The IR 180 AP is equipped
with a pyro sensor which
HF 360 AP:
Angle of coverage: 360°
The HF 360 AP is an active
motion detector. It reacts
- independently of tem-
perature - to the slightest
movement. The integrated
only extremely convenient,
but also increases safety
and is energy and cost
saving.
detects the invisible heat
emitted by moving objects
(pedestrians, animals etc.).
8 m
The heat thus detected is
max.
electronically converted and
switches on connected con-
sumers (e.g. a light). No heat
radiation is detected through
obstacles, such as walls
or glass and no switching
therefore occurs.
HF sensor transmits high
frequency electromag-
netic waves (5.8 GHz) and
8 m
receives their echo. In re-
max.
sponse to the slightest
movement in the detection
zone, the change in echo
is perceived by the sensor.
A microprocessor subse-
quently triggers almost with-
out delay the switching
command "light ON". De-
tection is possible through
doors, panes of glass or
thin walls.
- 14 -

Technical specifications

IR 180 AP:
Dimensions (H × W × D):
82 × 72 × 67 mm
Output:
Filament bulbs, 1000 W max., operating on 230 V AC
Fluorescent lamp, 500 W max., at cos j = 0.5,
inductive load at 230 V AC
4 × 58 W each max., C ≤ 88 µF
operating on 230 V AC
Connection: 230 V, 50 Hz
3-lead connection (L, L', N)
Contact gap: e, contact clearance of less than 1.2 mm between the
contacts when unit is switched 'OFF'.
Installation height: approx. 1.1 and 2.2 m
Sensor technology: Infrared sensor
Transmission output:
-
Angle of coverage:
180° with
90° angle of aperture
Reach:
8 m max.
Twilight setting:
2 - 2000 lux
Time setting: 10 sec. - 30 min.
Permanent light:
switchable (4 h)
Permanent light OFF:
switchable
IP rating:
IP 54
*1)
Fluorescent lamps, low-energy bulbs, LED lights with electronic ballast
(total capacity of all connected ballasts below the value specified).
*2)
Installation above a door.
HF 360 AP:
82 × 72 × 64 mm
*1)
*2)
approx. 1.1 and 2.2 m
5.8 Ghz
High frequency
approx. 1 mW
360° with
140° angle of aperture
1 - 8 m
continuously adjustable
2 - 2000 lux
10 sec. - 30 min.
switchable (4 h)
switchable
IP 54
- 15 -
*2)
