9. Electrolysis cell installation

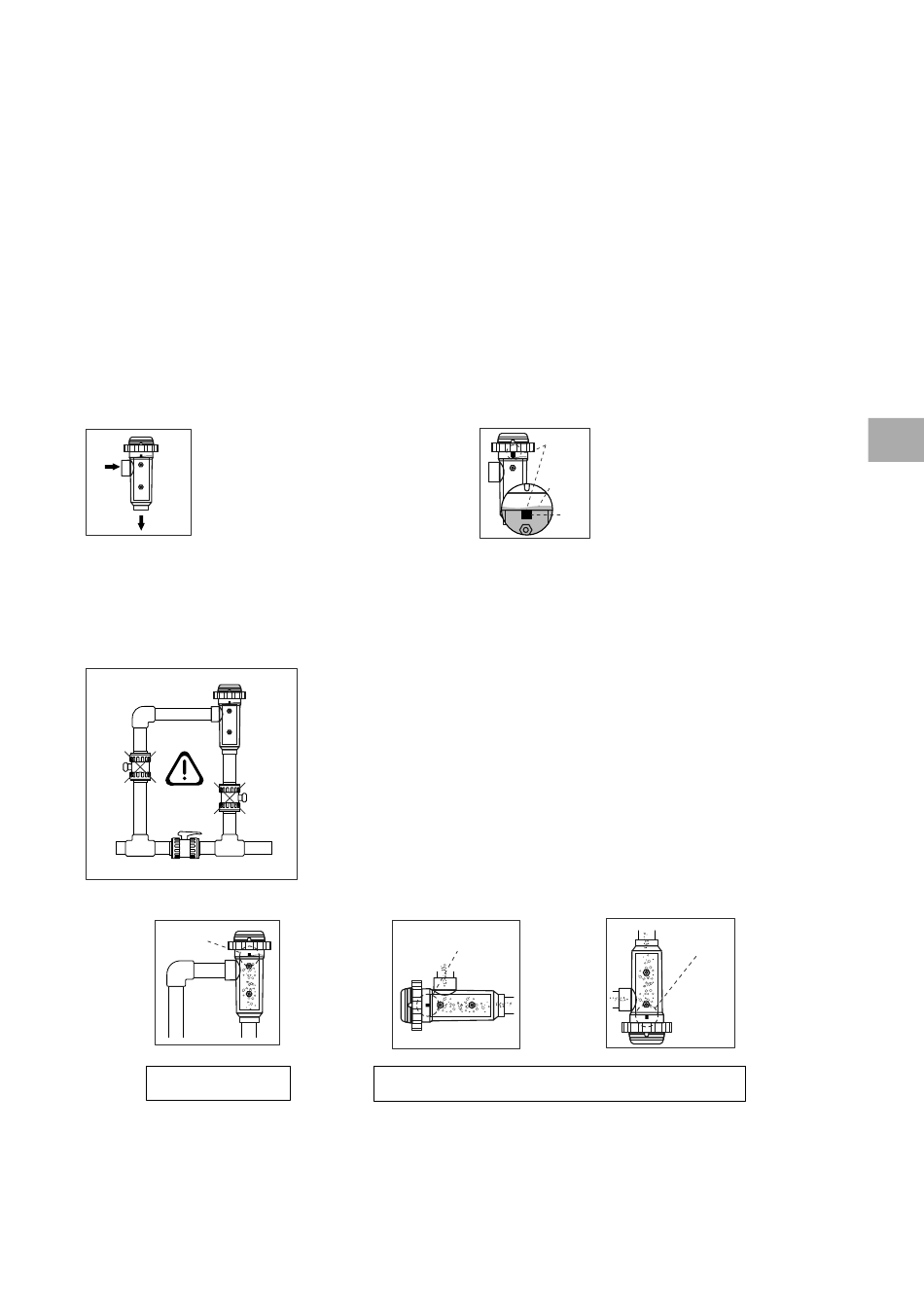

The electrolysis cell is made of a transparent polymer inside which the electrodes are housed. The electrolysis cell should be
installed in a weather-protected location and always behind the filtration system and any other devices in the installation
such as heat pumps, control systems, etc.
The installation should allow the user easy access to the installed electrodes. The electrolysis cell must always be located in
a place in the pipe that can be isolated from the rest of the installation by means of two valves, so that maintenance work can
be carried out without the need to empty the pool completely or partially.
When the cell is installed in bypass (recommended), there must be a valve to regulate the flow through the cell. Before
proceeding with the final installation of the system, the following points should be taken into account:
The direction of flow marked on the cell
must be respected. The recirculation
system must guarantee the minimum
flow rate specified in the Technical
Data Sheet.
FLOW
DETECTOR
(GAS)
RECOMMENDED
installation
WARNING: if the inlet and outlet valves to the pipe where the electrolysis
cell is installed are closed simultaneously, the flow detector (gas
detector) will not work properly, leading to risk of rupture of the cell.
Although this is an unusual situation, it can be avoided by blocking
the return valve to the pool once the device has been installed, so that
it cannot be tampered with accidentally.
FLOW
DETECTOR
(GAS)
UNACCEPTABLE installation
134
The
flow
detector
FLOW
DETECTOR
detector) is activated in the event of
(GAS)
zero or very low recirculation (flow) of
water through the cell. Non-evacuation
CRITICAL
WATER LEVEL
of the electrolysis gas generates
a bubble that electrically isolates
GAS
WATER
the auxiliary electrode (electronic
detection). Therefore, when inserting
the electrodes into the cell, the gas
detector (auxiliary electrode) must
be placed at the top of the cell. The
safest layout is as shown in the
recommended installation diagram.
FLOW
DETECTOR (GAS)
EN
system
(gas
loading
