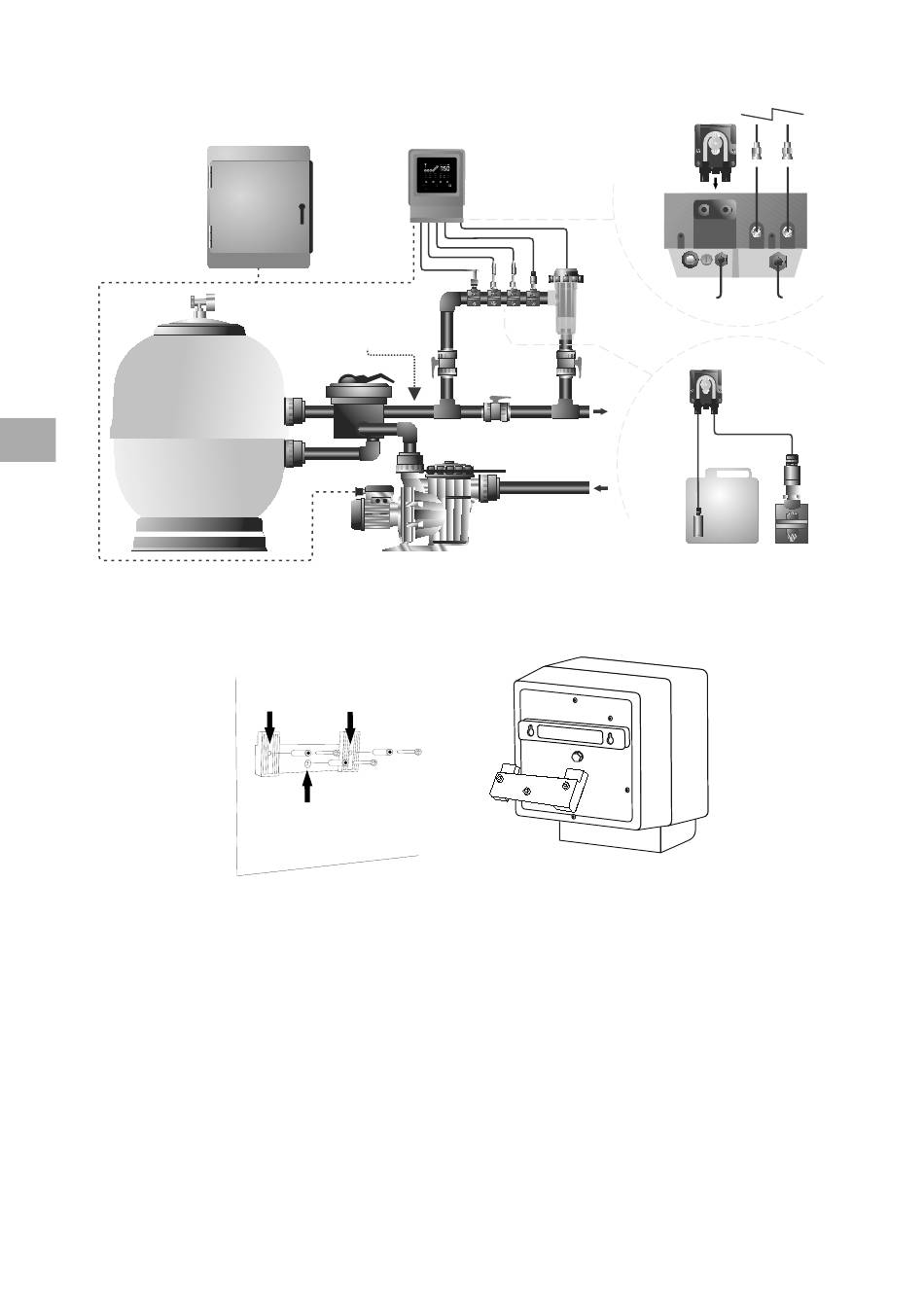

8. Installation diagram
EN
Note: This schematic represents an installation of a scalable model with all options installed. This schematic may vary depending on the model purchased.
7. Device installation on a wall
- The control unit must always be installed VERTICALLY and on a smooth wall surface. It must also be far enough away from
the cell so that it cannot be accidentally splashed with water.
- The cell should always be installed VERTICALLY and on the floor as shown in the recommended installation diagram.
- To ensure that the device is kept in good condition, it should always be installed in a dry and well-ventilated part of the
machine room. Installing the control unit outdoors is not recommended.
- The control unit must be connected to the mains power supply at the control panel of the purifier in such a way that the pump
and the system are switched on at the same time.
In particular, avoid the formation of corrosive atmospheres due to solutions that lower pH (especially those formulated
with hydrochloric acid "HCl"). Do not install the salt chlorinator near where these products are stored. To this end, we
strongly recommend the use of sodium bisulphate or dilute sulphuric acid based products.
Electrical panel
Filter
other
equipment
Anchor: 8x50mm
Screw: 5x50mm
Control unit
Injector
ORP
pH
Cell
Flow switch
Outlet
Inlet
133
ORP sensor
pH sensor
pH
pump
Cell
230V
pH
pump
Injector
pH
minus
