VEVOR RC-9002F Originalanleitung Seite 16

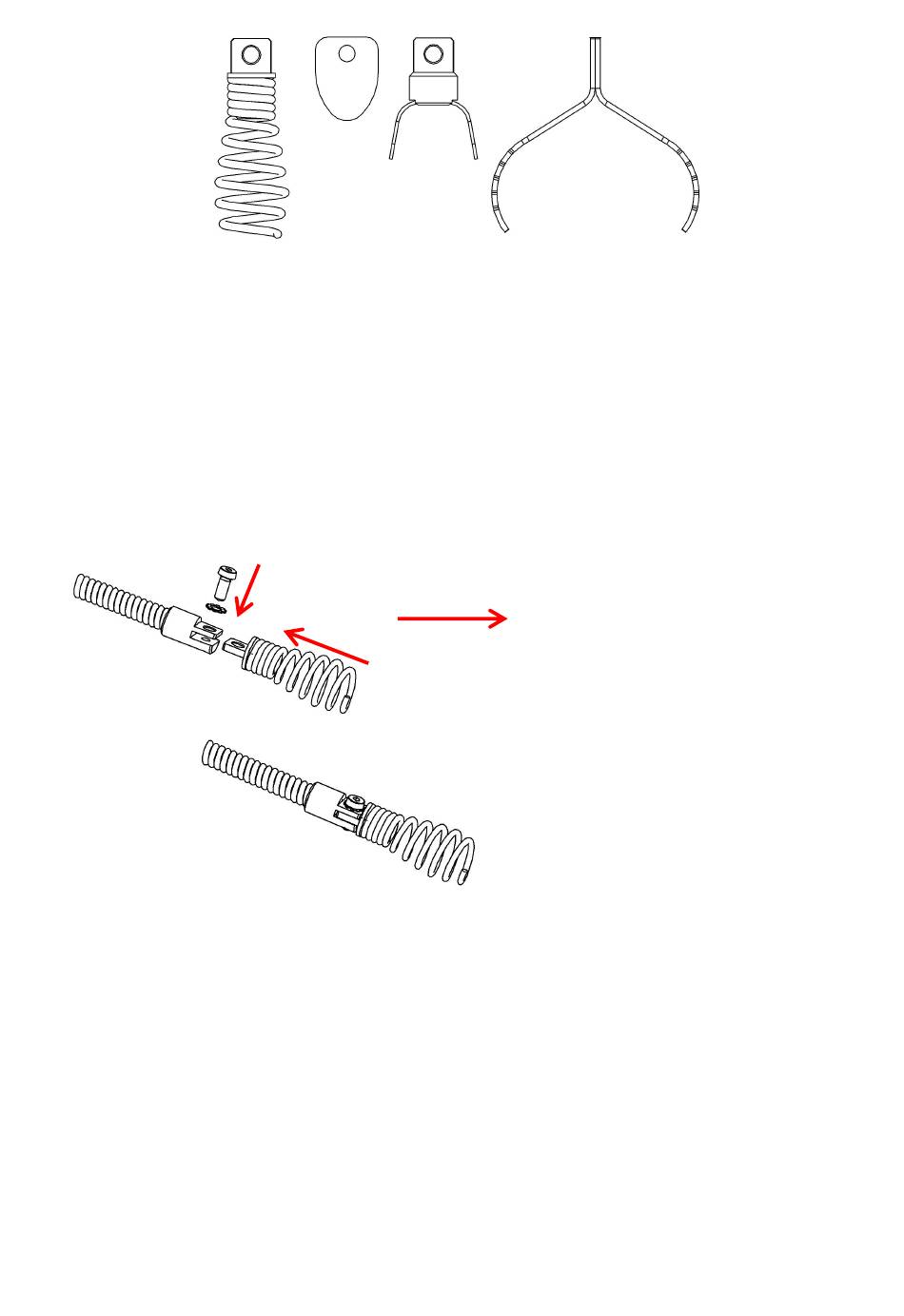

The dredging head includes:
• Olive-type rotary drill
• Spade cutting drill
• C- type cutting drill
• Arrow cutting drill
The choice of dredging head depends on the condition of the pipe to be
dredged and the judgment of the operator.
11. Install the dredging head.
Insert the cleaning head into the spring connector slot and screw in the M6
screws to install the effect.
12. Place the foot switch for easy operation and the CW /OFF/ CCW switch
for easy operation.
13. Make sure the CW /OFF/ CCW switch is in the OFF position.
14. Insert the plug of the drain cleaner into the socket and check that the
place where the wire passes through has been checked according to the
above method.
If it is not long enough, you can use a terminal block that meets the
requirements.
- 15 -
