1.3.3 Cooling System

1.3.4 Control Cabinet Instal-
lation
8
In the following the water-cooled through-mount version is described. At this design
the heat sink is moved through a cutout in the control cabinet to the outside and is
designed for the connection to an existing cooling system. The dissipation of the
power loss must be ensured by the machine builder.

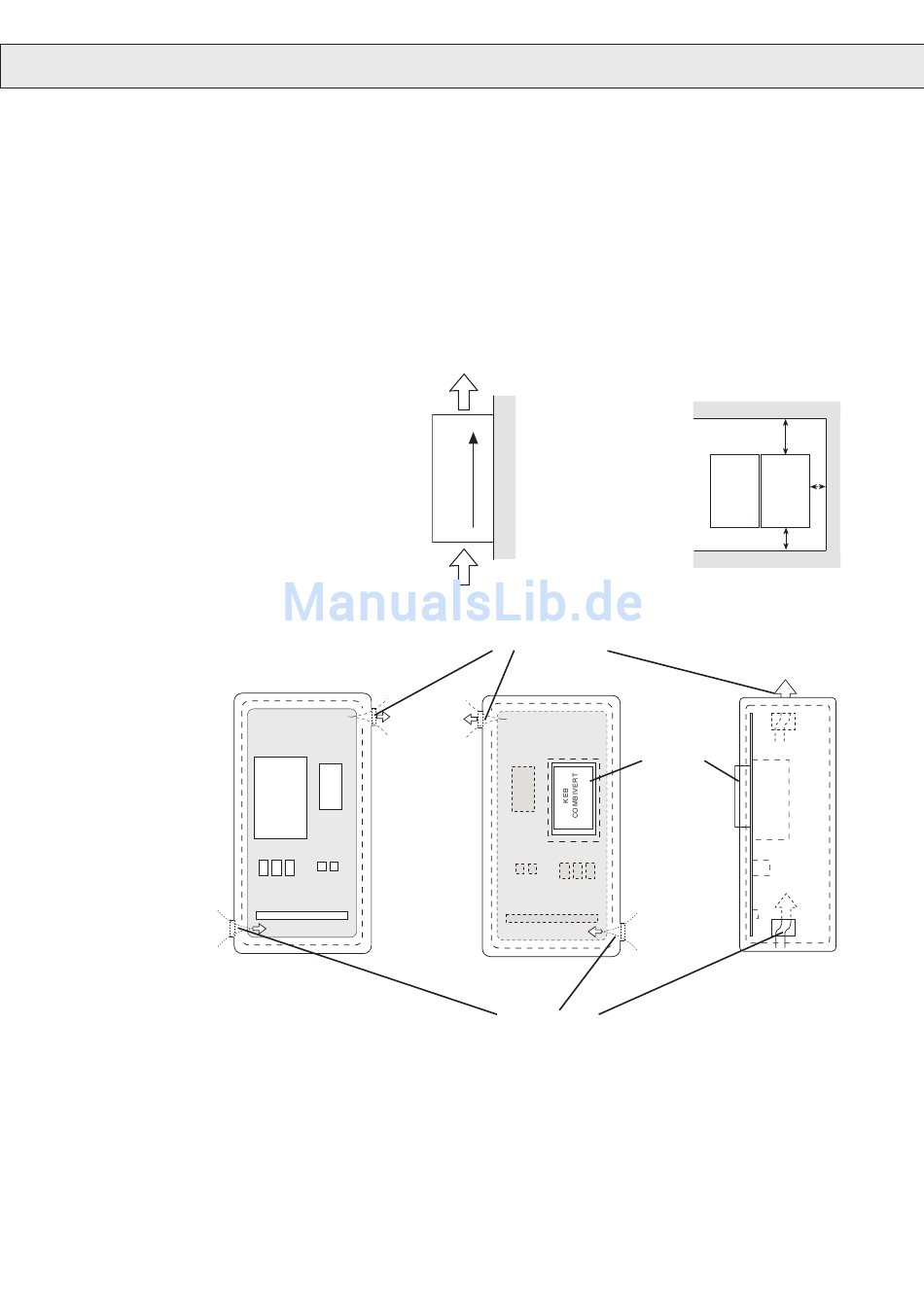

Direction of cooling
KEB
COMBIVERT
Warm air outlet
Cabinet outcut
on the back-
side
Cool air inlet
150
F5 F5
F4 F4
30
100
Minimum dis-
tances
