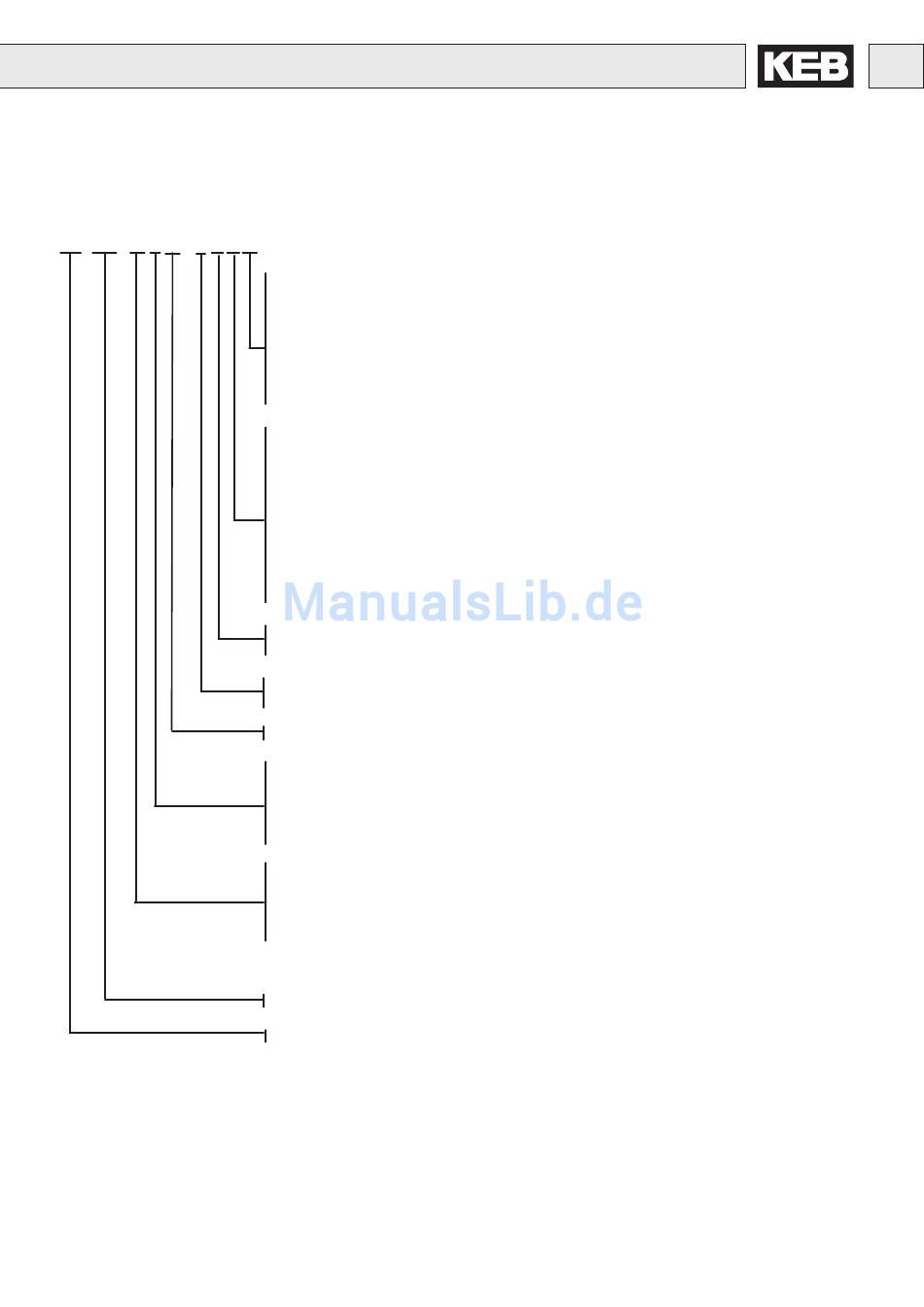

1.2 Unit Identification
27.F5.MBU–YV12
1) GTR 7: braking transistor
2) PFC: Power Factor Control
Interface type
0: no interface A. Inc.-Input a. Inc.-I/O
1: Inc.-Input a. Inc.-I/O
2: Resolver-Input a. Inc.-Input Hiperface a. Inc.-Output
3: Hiperface a. Inc.-Input
4: HTL-Input a. Inc.-Input
5: SIN/COS-Input a. Inc.-Input
S...Z: Special numbers
at FI: Cooling
0: standard water-cooled through-mount version + standard motor protection
1: standard water-cooled through-mount version + KTY motor protection
2: standard water-cooled motorFI + standard motor protection
3: standard water-cooled motorFI + KTY-motor protection
A: 2standard water-cooled through-mount version + standard motor protection
B: 2standard water-cooled through-mount version + KTY motor protection
G: through-mount version Flat Rear, removable water-heat sink + standard motor protection
H: through-mount version Flat Rear, removable water-heat sink + KTY motor protection
S...X + Z: Special numbers
U: Customized special units
V: New extrusion casting heat sink (UL/ UR)
Input identification
Y: 400V AC or AC/DC
Housing type
Accessory
0: without GTR7
1: GTR 7 1)
A: no GTR 7 , with Option EN954/3
1)
B: GTR 7 , with Option EN954/3
1)
Control type
G: GENERAL (controlled frequency inverter)
M: MULTI (regulated, field-oriented frequency inverter for three-phase asynchronous motors)
S: SERVO (regulated frequency inverter for synchronous motors)
A: APPLICATION (special software, regulated open loop for three-phase asynchronous
motors)
Series
Inverter size
B: Resolver (input.) a. Inc.-Output
D: HTL-Input a. Inc.-Output.
E: SIN / COS - Encoder (Input) a. Inc. Output
F: EnDat - Encoder (Input) a. Inc.-Output
E, G, H, P, R, U,W
F5
