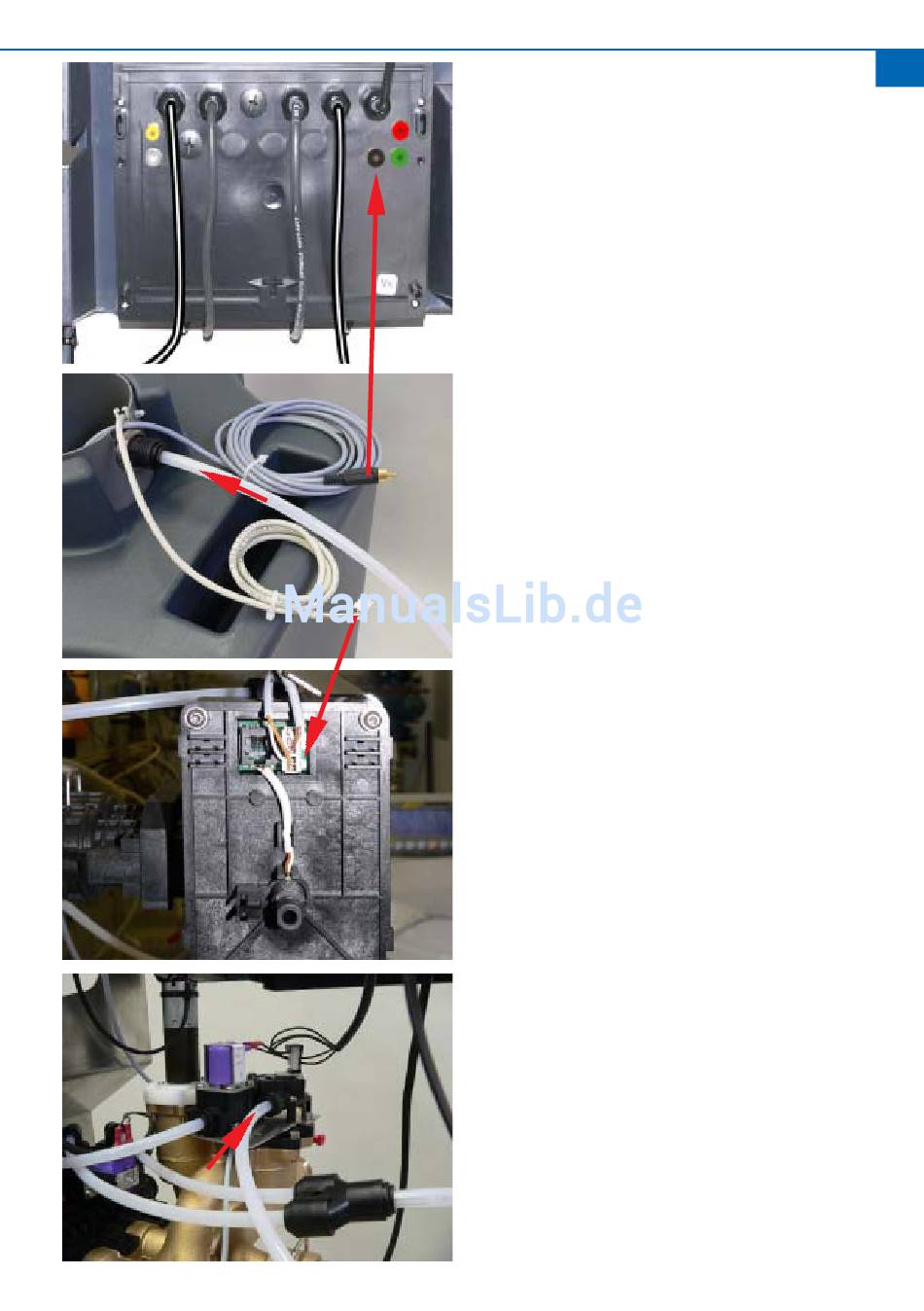

Insert the black plug from the floating switch into
the black socket (float).
The following functions can be connected to the
control unit of the Soft-control if necessary.
Error alarm contact CCT (red socket) Error alarm contact CCT (red socket)
Error alarm contact CCT (red socket) Error alarm contact CCT (red socket) Error alarm contact CCT (red socket)
Error closed during power failure, salt deficiency,
short circuit or excess current from the
electrolytic cells and solenoids and electronic
errors.
Max. 230 V / 2 A AC.
Dosing outlet (green socket) Dosing outlet (green socket)
Dosing outlet (green socket) Dosing outlet (green socket) Dosing outlet (green socket)
The outlet pulse of the water meter has the same
form as the inlet pulse. Max. 5 V, 5 mA DC.
Insert brine hose approx. 17 mm into the
connection and check the for the correct
positioning by pulling it back gently.
Insert the white plug from the brine valve onto
the right-hand control valve.
Insert the left-hand control valve into the brine
meter.
