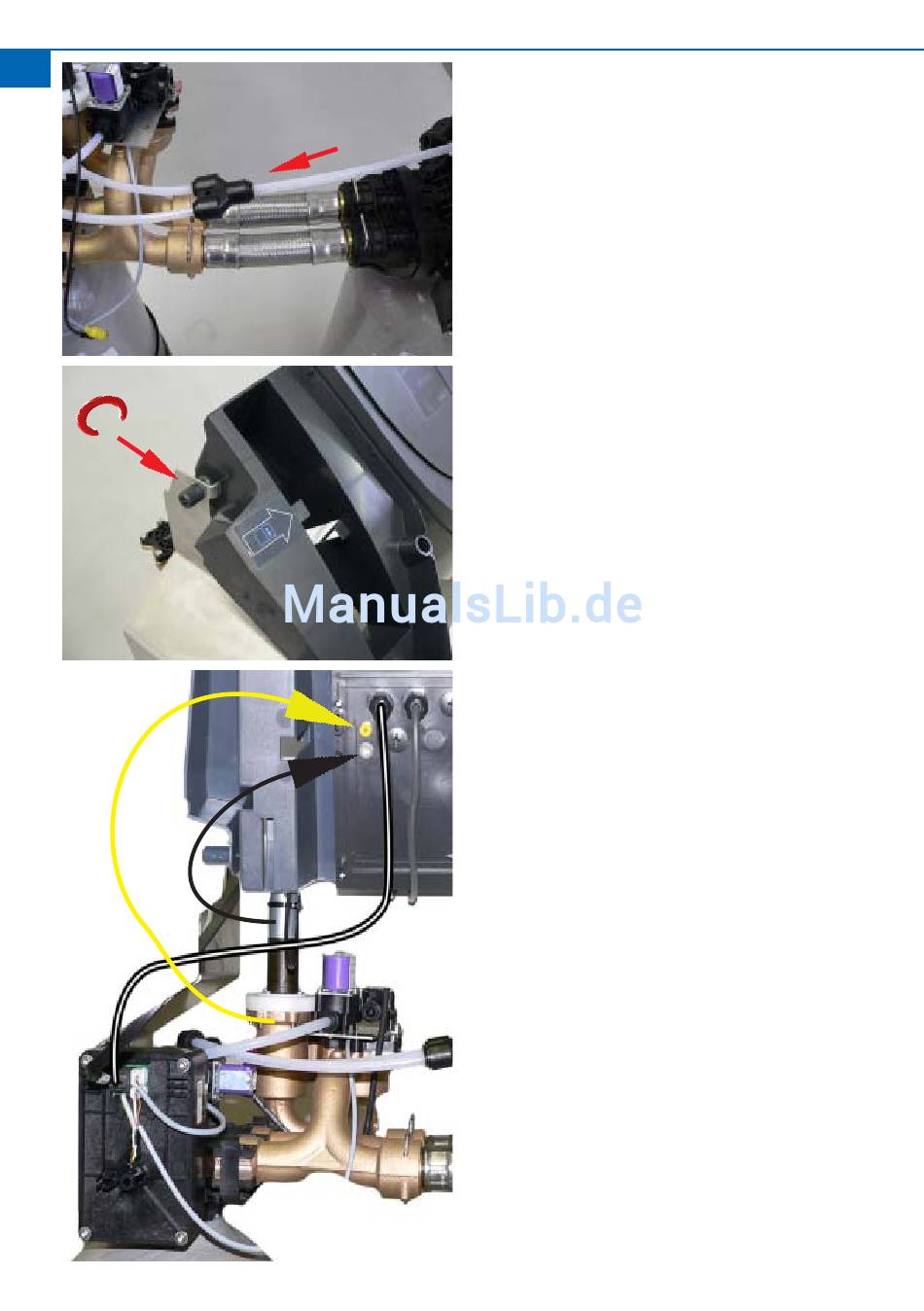

Make a hose connection.
Insert approx. 17 mm and check the for the correct
positioning by pulling it back gently.
Insert the technical lid into the holding bracket.
Secure on both sides using the red clip
Insert the yellow cinch from the bypass water
meter into the yellow socket of the technical lid.
Insert the black-silver plug from the motor blending
valve into the silver socket.
