Cable K3 Cable K3 Cable K3
Cable K3 Cable K3

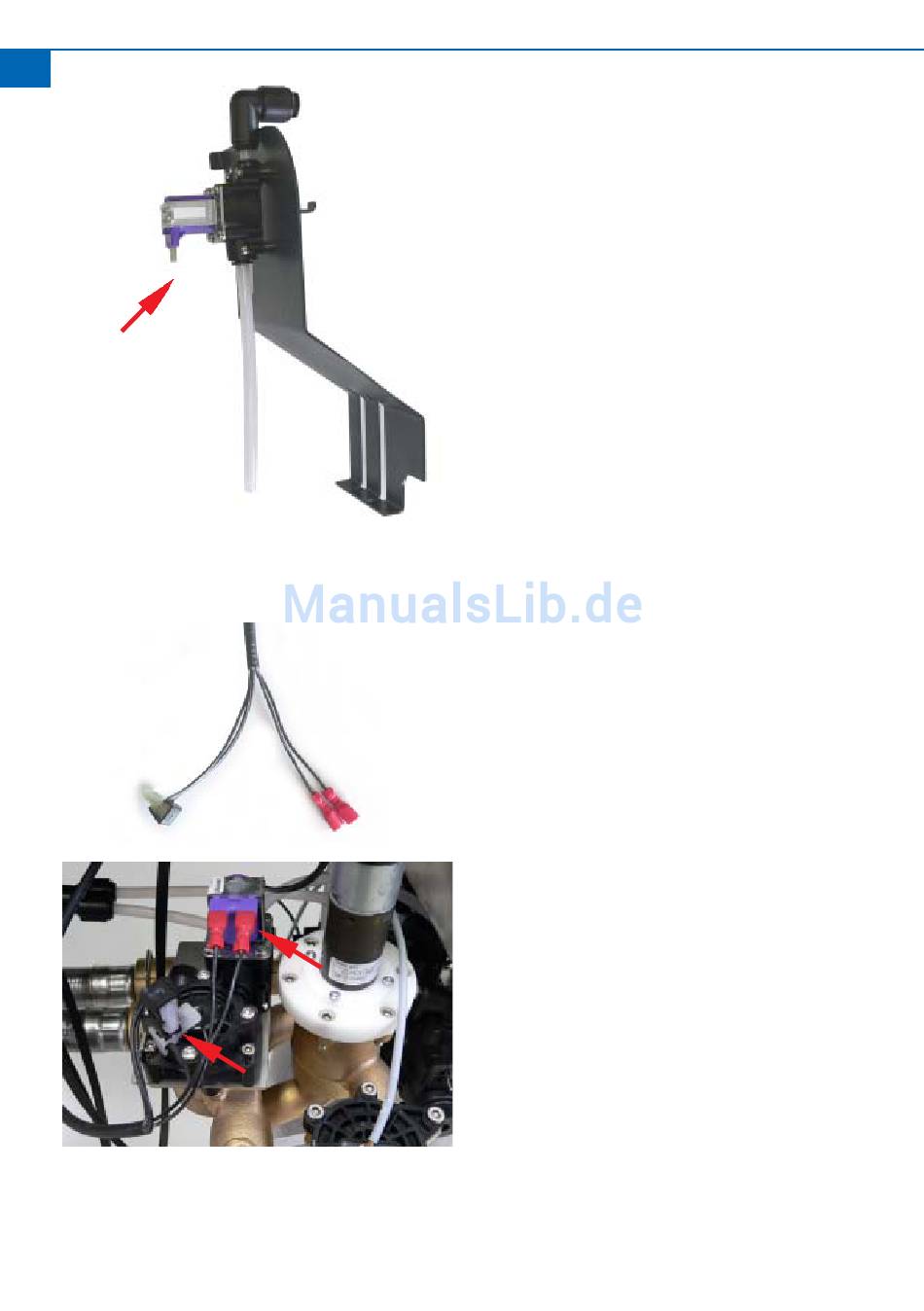

Insert the red flat male tab (lead No. 5, 6) onto the
AQA-Safe-Valve (polarity in any order).
cable 4 cable 4 cable 4
cable 4 cable 4
Cable K4 Cable K4 Cable K4 Cable K4 Cable K4
Insert the red flat male tab (lead 4, 5) onto the
solenoid (polarity in any order).
Push the three-conductor plug (lead 1, 2, 3) onto
the brine meter (observe the housing) until the snap
connection clicks into place.
