HOMCOM FDP20-2024R5 Bedienungsanleitung Seite 17

EN

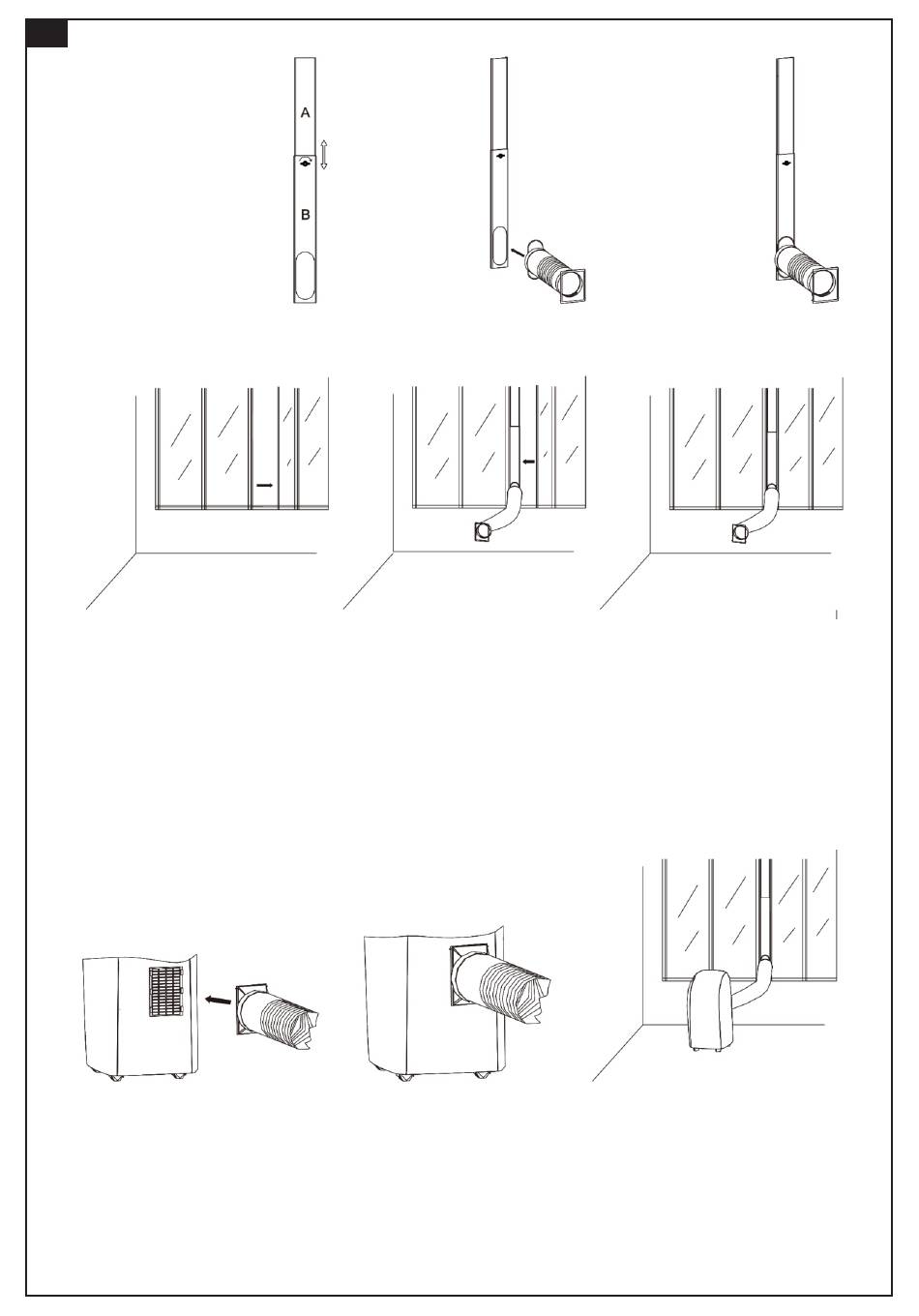

4. Assembly
finished, you can
adjust A board up
or down,
according to
height of the
window. Screw it
unit it is tight.
Fig.6
7. Open the window where
need install exhaust air
duct, window kit and
their accessories.
Fig.9
10.Connect another end of
exhaust air duct and its
accessories onto
portable air conditioner.
5. Install
exhaust air
duct & its
accessories
into window
kit according
to arrowhead
direction.
Fig.3
Fig.7
8.Install exhaust air duct,
window kit and their
accessories onto
window, then close the
window according to
arrowhead direction in
Fig7 drawing to press
window kit tightly.
Fig.10
11.Exhaust air duct & its
accessories assembly
finished as Fig10
drawing illustrated.
16
6. Assembly
finished.
Fig.4
9.Install exhaust air duct,
window kit and their
accessories onto
window according to
Fig8 drawing illustrated.
12.Whole unit assembly
well as Fig11 drawing
illustrated.
Fig.5
Fig.8
Fig.11
