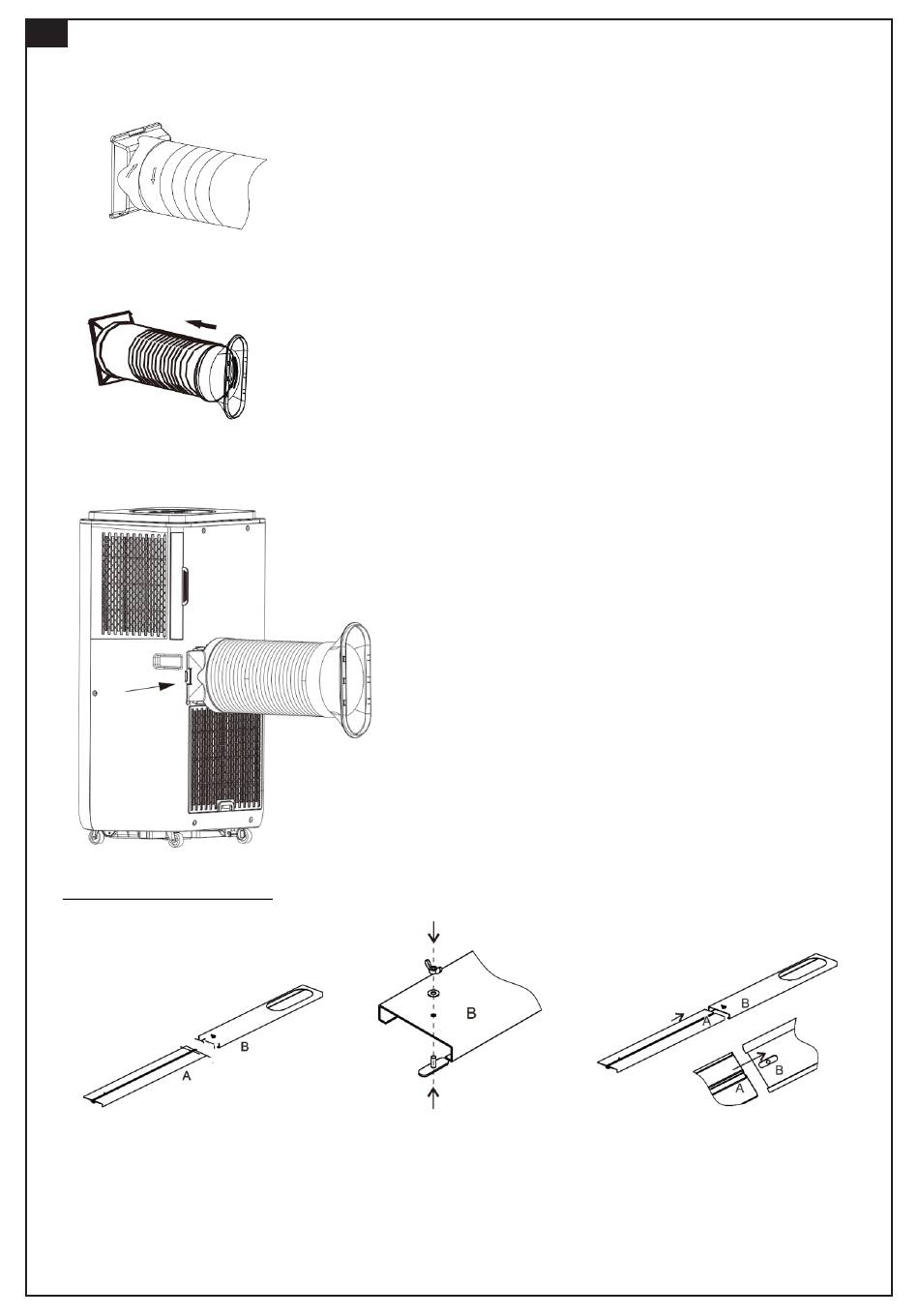

2.Screw the air exhaust duct into the connector of air exhaust duct.
3.Screw the connector of window into the plastic connector.
4.Connect the connector of air exhaust duct to the unit.
Install Window Kit
1. Separate both boards A
board and B board.
Fig.1
2. Screw the wing nut
through the B board.
Leave 2/3 mm of free
space.
3. Insert A board into B
15
Fig.2
board according to
arrowhead direction.
