Inserting/removing the telescoping tube

Adjusting the length of the telescoping tube

Mounting/removing suction nozzles

• Insert the open end of the telescoping tube in one of the enclosed suction nozzles
up to the stop. Turn the nozzle back and forth slightly in the process.
• The suction nozzles can also be attached directly to the suction hose without the
telescoping tube for more fl exibility.
• To remove a suction nozzle pull it off.
• You can put the suction nozzles onto the holder supplied for convenient storage.
Clip the holder on the telescoping tube.

Removing/inserting the dust bin

09271_DE-GB-FR-NL_V1_1.indb 24 09271_DE-GB-FR-NL_V1_1.indb 24

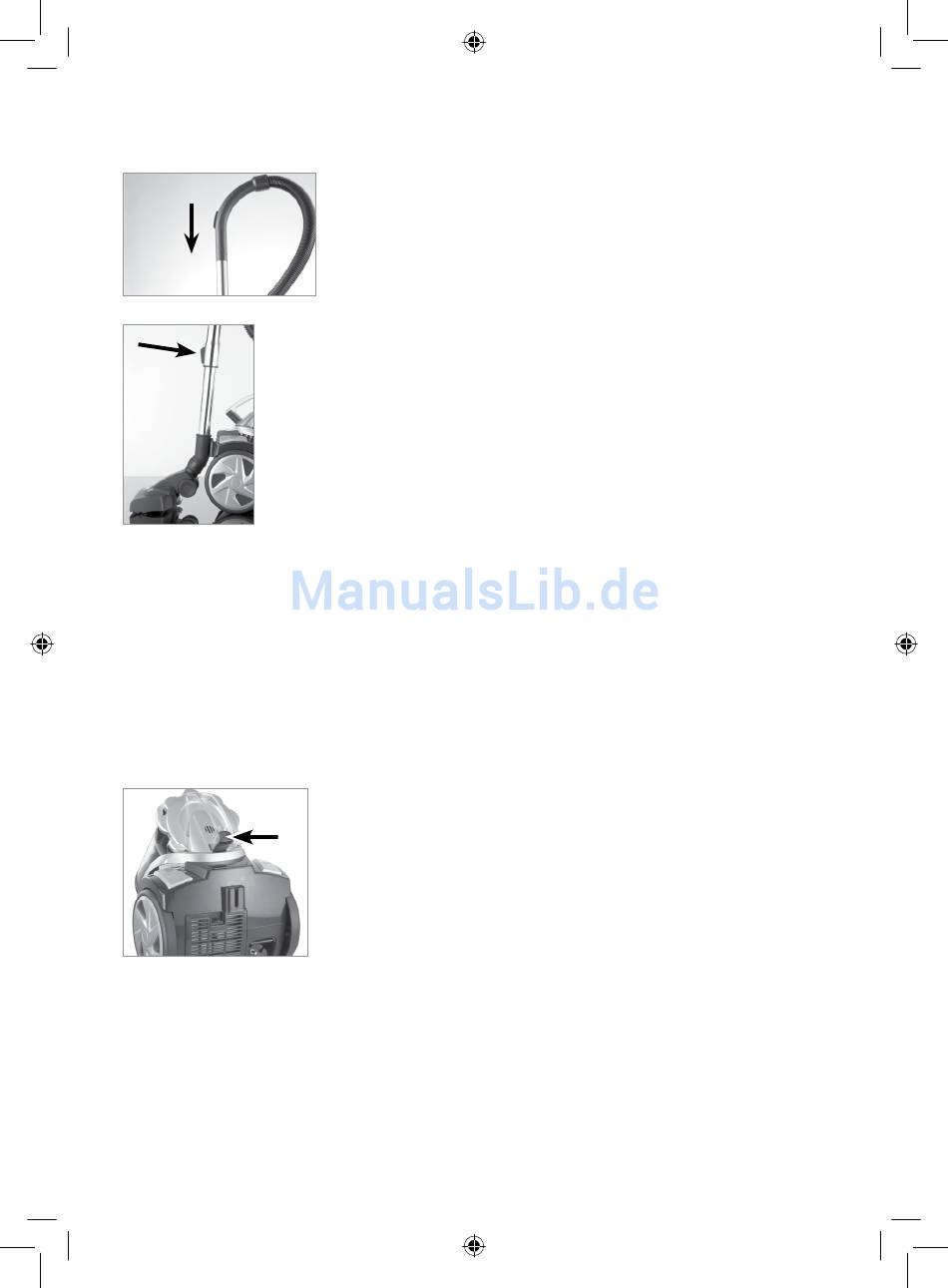

• Insert the open end of the handle into the corresponding
opening on the telescoping tube. In the process, turn the
handle back and forth somewhat. Check to make sure
that the connection is secure.
• To remove the telescoping tube pull it off of the handle.
• Push the slider on the telescopic tube downwards and
then pull the telescopic tube out to the required length.
• Release the slider and move the tube slightly up or down
until it engages.
• Removal: Push the release button on the dust bin and
take it out of the device by the handle.
• Insertion: Take the dust bin by the handle and fi rst place
the bottom of the bin in the device (the bottom is facing
down and handle is facing up). Then push the hand-
le against the device housing until the dust bin audibly
locks into place. Hold the device by the handle and lift it to
check whether the dust bin is properly seated.
