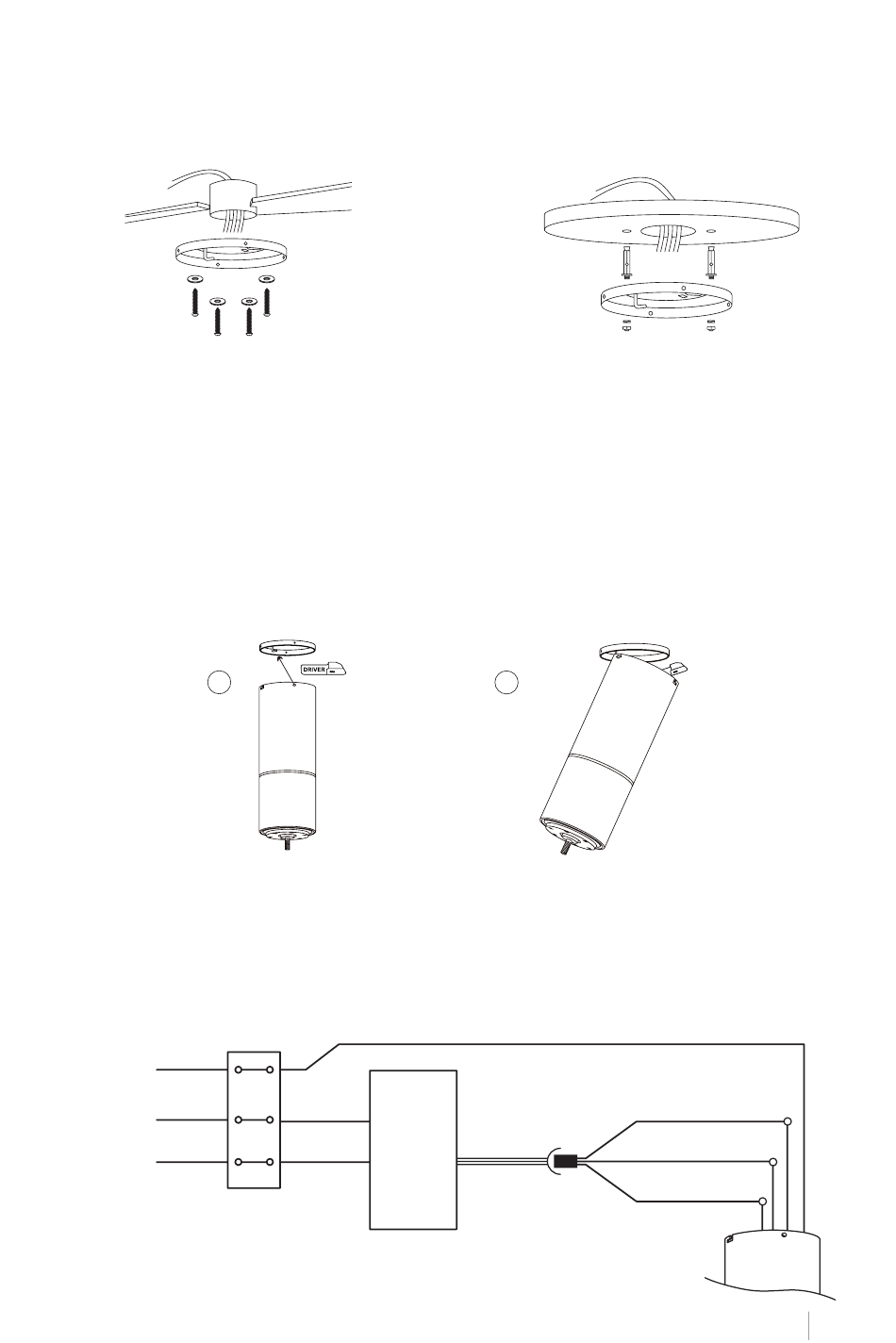

FIX I NG THE MOUNT I NG B R ACKE T
The mounting bracket must be securely mounted and able to safely support at least the
weight of the fan. Do not attach the mounting bracket directly to ceilings less than 10mm to
avoid the risk of the screw loosening and coming out.
Wood roof
Secure the mounting bracket with the wood
screws and washers to the ceiling joints.
concrete roof
NOTE: This fan can also be installed in a false ceiling, for this you must use fixing screws
with a spring lever (not included).
R ECE IVE R CON NECT IO N
Connect the motor to the bracket hook and then connect the wiring.
1
W IR ING CON N ECT IO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Take
ground
L
N
Ground (green/yellow)
L input
(black)
Remote
control
receiver
Input N
(white)
Drill holes with an 8mm drill bit, accord-
ing to the length of the expansion screws.
Next, secure the mounting bracket to the
ceiling with the expansion screws.
2
DC L motor (gray)
DC L motor (pink)
DC L motor (red)
