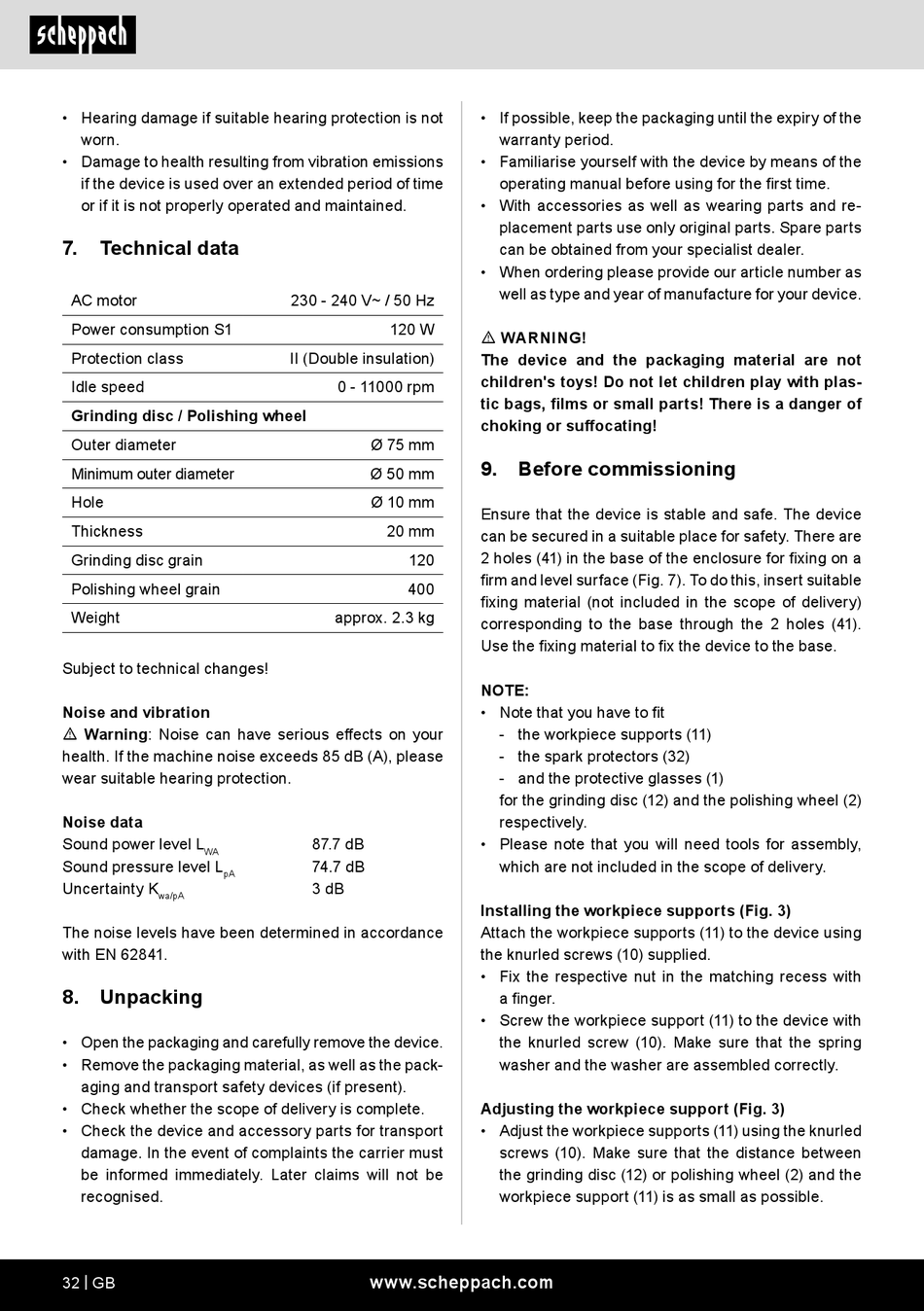

• Hearing damage if suitable hearing protection is not
worn.
• Damage to health resulting from vibration emissions
if the device is used over an extended period of time
or if it is not properly operated and maintained.
7. Technical data
AC motor
Power consumption S1
Protection class
Idle speed
Grinding disc / Polishing wheel
Outer diameter
Minimum outer diameter
Hole
Thickness
Grinding disc grain
Polishing wheel grain
Weight
Subject to technical changes!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
The noise levels have been determined in accordance
with EN 62841.
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
32 | GB
230 - 240 V~ / 50 Hz
120 W
II (Double insulation)
0 - 11000 rpm
Ø 75 mm
Ø 50 mm
Ø 10 mm
20 mm
120
400
approx. 2.3 kg
87.7 dB
74.7 dB
3 dB
www.scheppach.com
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your device.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Before commissioning
Ensure that the device is stable and safe. The device
can be secured in a suitable place for safety. There are
2 holes (41) in the base of the enclosure for fixing on a
firm and level surface (Fig. 7). To do this, insert suitable
fixing material (not included in the scope of delivery)
corresponding to the base through the 2 holes (41).
Use the fixing material to fix the device to the base.
NOTE:
• Note that you have to fit
- the workpiece supports (11)
- the spark protectors (32)
- and the protective glasses (1)
for the grinding disc (12) and the polishing wheel (2)
respectively.
• Please note that you will need tools for assembly,
which are not included in the scope of delivery.
Installing the workpiece supports (Fig. 3)
Attach the workpiece supports (11) to the device using
the knurled screws (10) supplied.
• Fix the respective nut in the matching recess with
a finger.
• Screw the workpiece support (11) to the device with
the knurled screw (10). Make sure that the spring
washer and the washer are assembled correctly.
Adjusting the workpiece support (Fig. 3)
• Adjust the workpiece supports (11) using the knurled
screws (10). Make sure that the distance between
the grinding disc (12) or polishing wheel (2) and the
workpiece support (11) is as small as possible.
