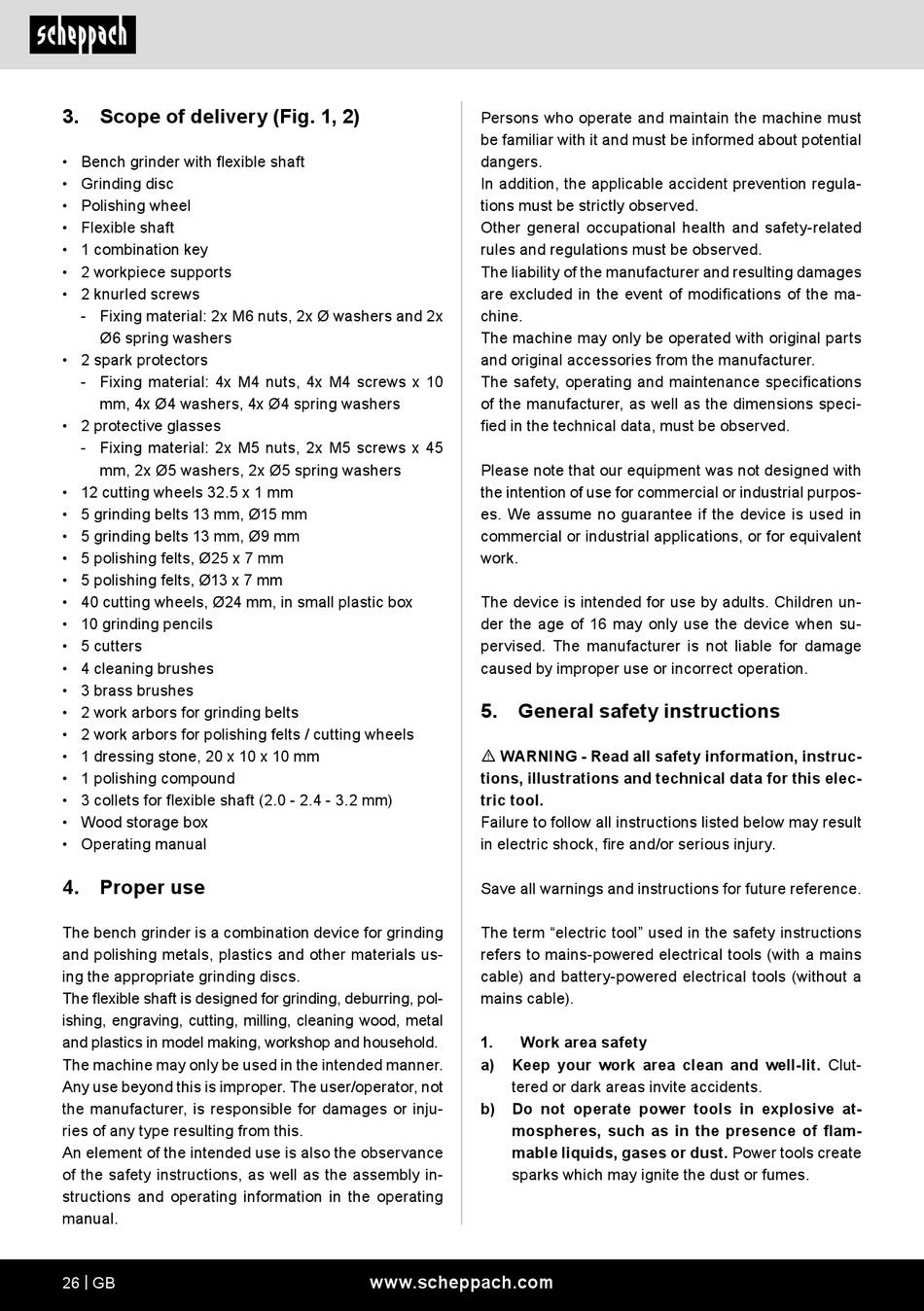

Scheppach HG35 Originalbetriebsanleitung Seite 26

3. Scope of delivery (Fig. 1, 2)
• Bench grinder with flexible shaft
• Grinding disc
• Polishing wheel
• Flexible shaft
• 1 combination key
• 2 workpiece supports
• 2 knurled screws
- Fixing material: 2x M6 nuts, 2x Ø washers and 2x
Ø6 spring washers
• 2 spark protectors
- Fixing material: 4x M4 nuts, 4x M4 screws x 10
mm, 4x Ø4 washers, 4x Ø4 spring washers
• 2 protective glasses
- Fixing material: 2x M5 nuts, 2x M5 screws x 45
mm, 2x Ø5 washers, 2x Ø5 spring washers
• 12 cutting wheels 32.5 x 1 mm
• 5 grinding belts 13 mm, Ø15 mm
• 5 grinding belts 13 mm, Ø9 mm
• 5 polishing felts, Ø25 x 7 mm
• 5 polishing felts, Ø13 x 7 mm
• 40 cutting wheels, Ø24 mm, in small plastic box
• 10 grinding pencils
• 5 cutters
• 4 cleaning brushes
• 3 brass brushes
• 2 work arbors for grinding belts
• 2 work arbors for polishing felts / cutting wheels
• 1 dressing stone, 20 x 10 x 10 mm
• 1 polishing compound
• 3 collets for flexible shaft (2.0 - 2.4 - 3.2 mm)
• Wood storage box
• Operating manual
4. Proper use
The bench grinder is a combination device for grinding
and polishing metals, plastics and other materials us-
ing the appropriate grinding discs.
The flexible shaft is designed for grinding, deburring, pol-
ishing, engraving, cutting, milling, cleaning wood, metal
and plastics in model making, workshop and household.
The machine may only be used in the intended manner.
Any use beyond this is improper. The user/operator, not
the manufacturer, is responsible for damages or inju-
ries of any type resulting from this.
An element of the intended use is also the observance
of the safety instructions, as well as the assembly in-
structions and operating information in the operating
manual.
26 | GB
Persons who operate and maintain the machine must
be familiar with it and must be informed about potential
dangers.
In addition, the applicable accident prevention regula-
tions must be strictly observed.
Other general occupational health and safety-related
rules and regulations must be observed.
The liability of the manufacturer and resulting damages
are excluded in the event of modifications of the ma-
chine.
The machine may only be operated with original parts
and original accessories from the manufacturer.
The safety, operating and maintenance specifications
of the manufacturer, as well as the dimensions speci-
fied in the technical data, must be observed.
Please note that our equipment was not designed with
the intention of use for commercial or industrial purpos-
es. We assume no guarantee if the device is used in
commercial or industrial applications, or for equivalent
work.
The device is intended for use by adults. Children un-
der the age of 16 may only use the device when su-
pervised. The manufacturer is not liable for damage
caused by improper use or incorrect operation.
5. General safety instructions
m WARNING - Read all safety information, instruc-
tions, illustrations and technical data for this elec-
tric tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "electric tool" used in the safety instructions
refers to mains-powered electrical tools (with a mains
cable) and battery-powered electrical tools (without a
mains cable).
1. Work area safety
a) Keep your work area clean and well-lit. Clut-
tered or dark areas invite accidents.
b) Do not operate power tools in explosive at-
mospheres, such as in the presence of flam-
mable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
