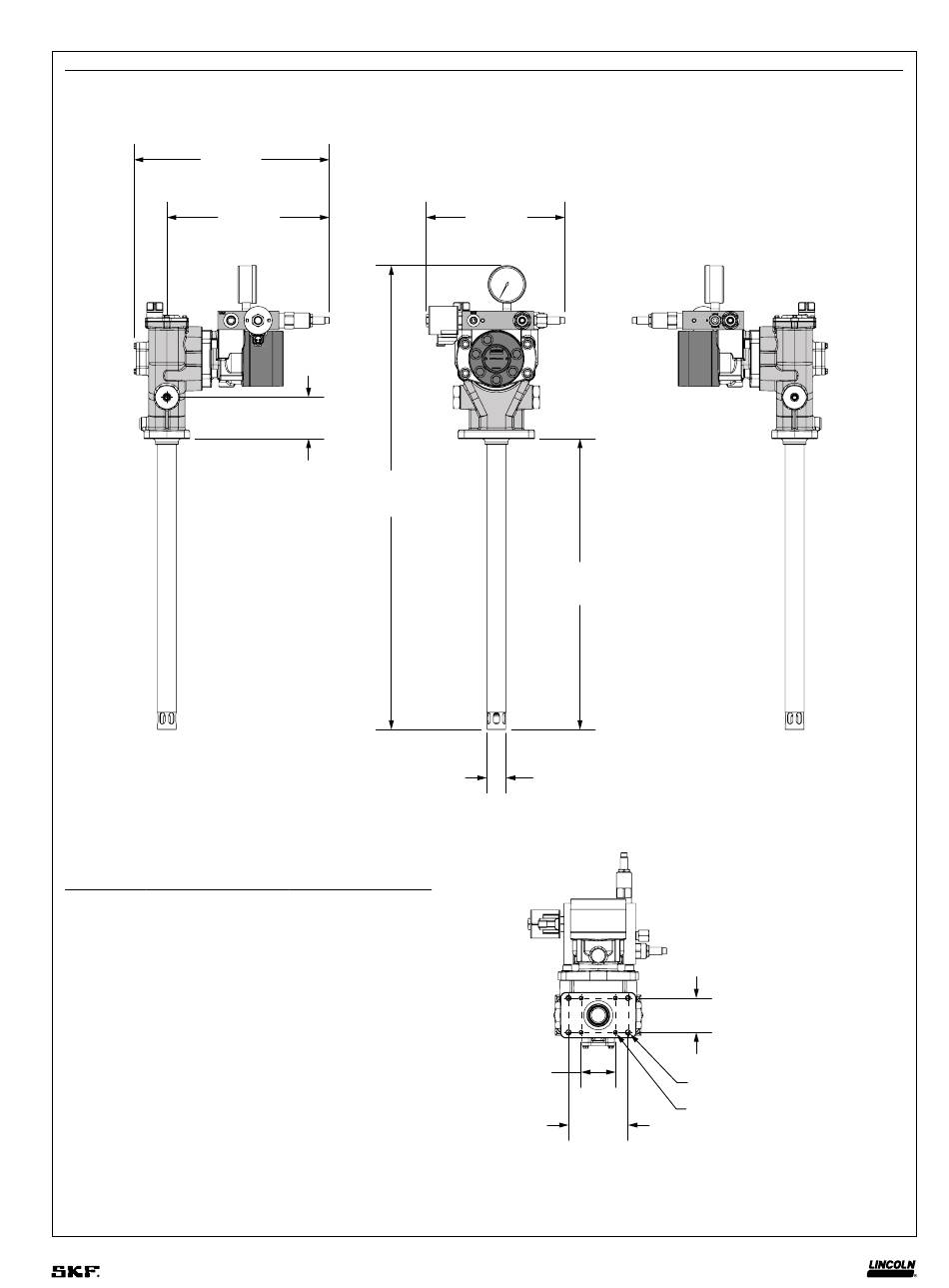

Pumpenabmessungen
11.53 in
(293 mm)
9.37 in
(238 mm)
Modell Maß A
85731 25.08 in (637 mm)
85732 30.39 in (722 mm)
85733 38.90 in (988 mm)
85734 45.40 in (1 153 mm)
85138 45.40 in (1 153 mm)
85144 25.08 in (637 mm)
2.72 in
(69 mm)
A
Maß B
13.74 in (349 mm)
19.05 in (484 mm)
27.56 in (700 mm)
34.06 in (865 mm)
34.06 in (865 mm)
13.74 in (349 mm)
9.09 in
(231 mm)
B
∅ 1.25 in
(32 mm)
2.25 in
(57 mm)
3.90 in
(99 mm)
9
Bild. 3
2.25 in
(57 mm)
(4×) ∅ 0.28 in (7 mm)
(4×) 1 / -20
