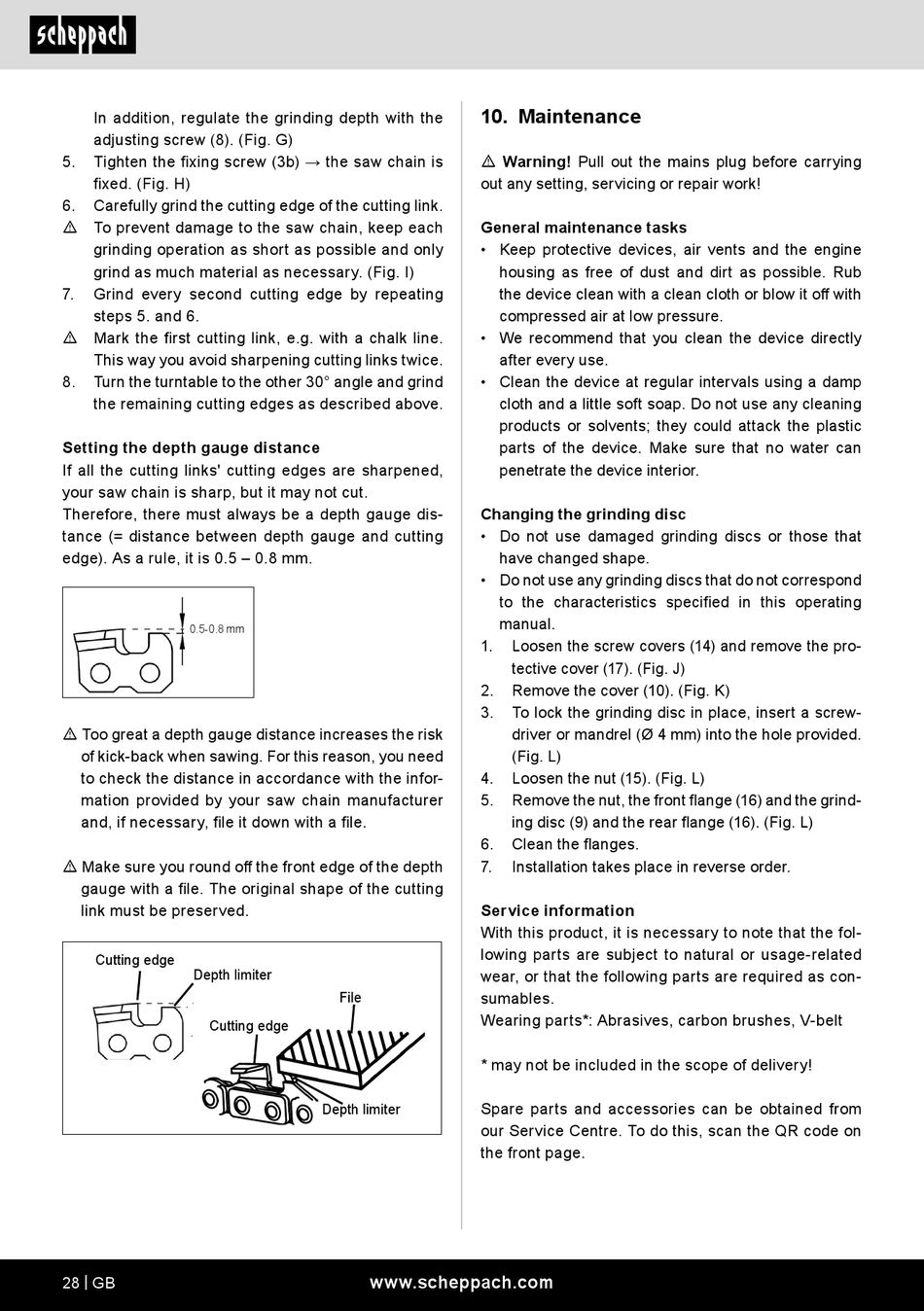

In addition, regulate the grinding depth with the
adjusting screw (8). (Fig. G)
5. Tighten the fixing screw (3b) → the saw chain is
fixed. (Fig. H)
6. Carefully grind the cutting edge of the cutting link.
m To prevent damage to the saw chain, keep each
grinding operation as short as possible and only
grind as much material as necessary. (Fig. I)
7. Grind every second cutting edge by repeating
steps 5. and 6.
m Mark the first cutting link, e.g. with a chalk line.
This way you avoid sharpening cutting links twice.
8. Turn the turntable to the other 30° angle and grind
the remaining cutting edges as described above.

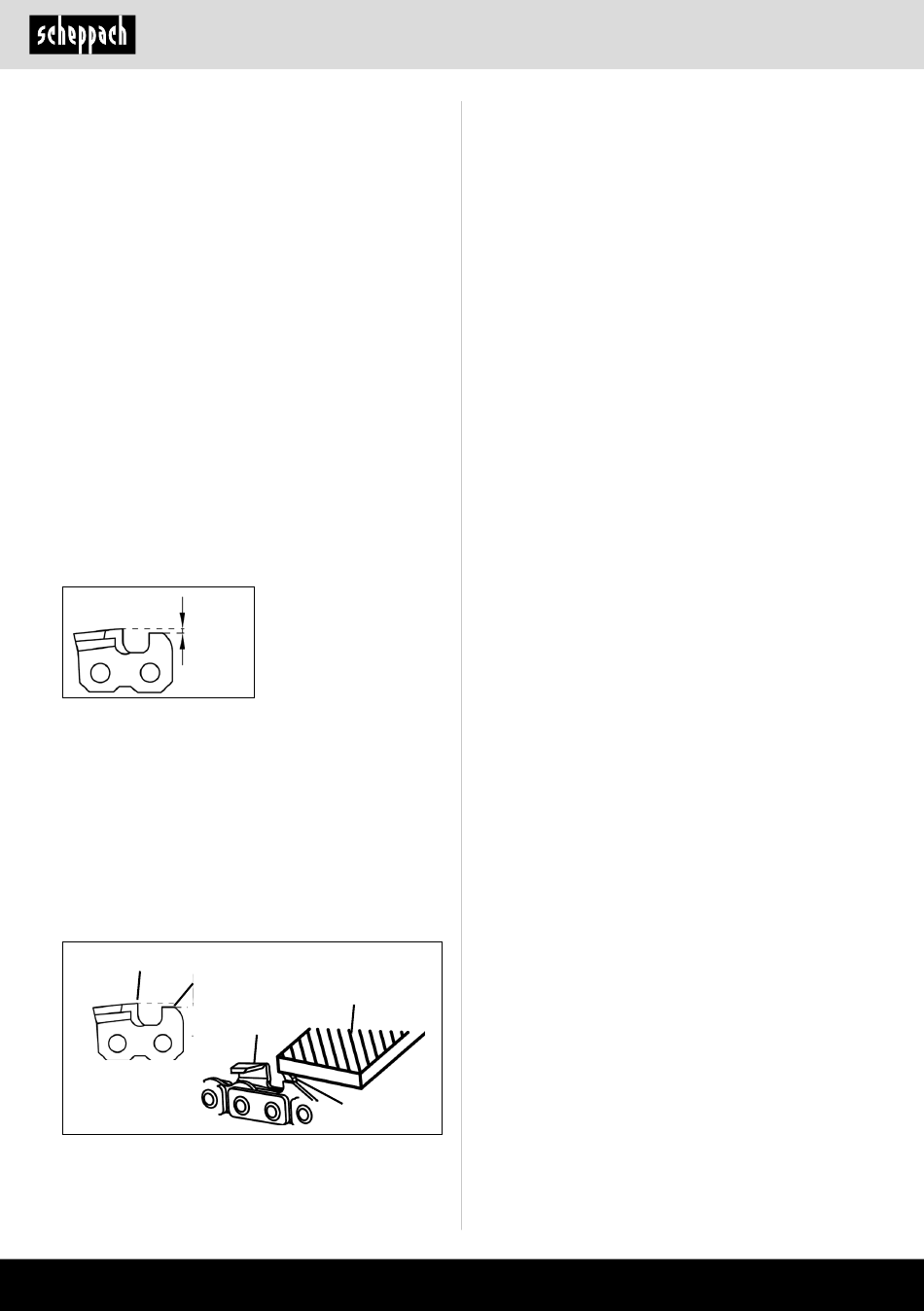

Setting the depth gauge distance
If all the cutting links' cutting edges are sharpened,
your saw chain is sharp, but it may not cut.
Therefore, there must always be a depth gauge dis-
tance (= distance between depth gauge and cutting
edge). As a rule, it is 0.5 – 0.8 mm.
0.5-0.8 mm
m Too great a depth gauge distance increases the risk
of kick-back when sawing. For this reason, you need
to check the distance in accordance with the infor-
mation provided by your saw chain manufacturer
and, if necessary, file it down with a file.
m Make sure you round off the front edge of the depth
gauge with a file. The original shape of the cutting
link must be preserved.
Cutting edge
Depth limiter
Cutting edge
28 | GB
10. Maintenance
m Warning! Pull out the mains plug before carrying
out any setting, servicing or repair work!
General maintenance tasks
• Keep protective devices, air vents and the engine
• We recommend that you clean the device directly
• Clean the device at regular intervals using a damp
Changing the grinding disc
• Do not use damaged grinding discs or those that
• Do not use any grinding discs that do not correspond
1.
2.
3.
4.
5.
6.
7.
Service information
With this product, it is necessary to note that the fol-
lowing parts are subject to natural or usage-related
wear, or that the following parts are required as con-
File sumables.
Wearing parts*: Abrasives, carbon brushes, V-belt
* may not be included in the scope of delivery!
Spare parts and accessories can be obtained from
Depth limiter
our Service Centre. To do this, scan the QR code on
the front page.
www.scheppach.com
housing as free of dust and dirt as possible. Rub
the device clean with a clean cloth or blow it off with
compressed air at low pressure.
after every use.
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic
parts of the device. Make sure that no water can
penetrate the device interior.
have changed shape.
to the characteristics specified in this operating
manual.
Loosen the screw covers (14) and remove the pro-
tective cover (17). (Fig. J)
Remove the cover (10). (Fig. K)
To lock the grinding disc in place, insert a screw-
driver or mandrel (Ø 4 mm) into the hole provided.
(Fig. L)
Loosen the nut (15). (Fig. L)
Remove the nut, the front flange (16) and the grind-
ing disc (9) and the rear flange (16). (Fig. L)
Clean the flanges.
Installation takes place in reverse order.
