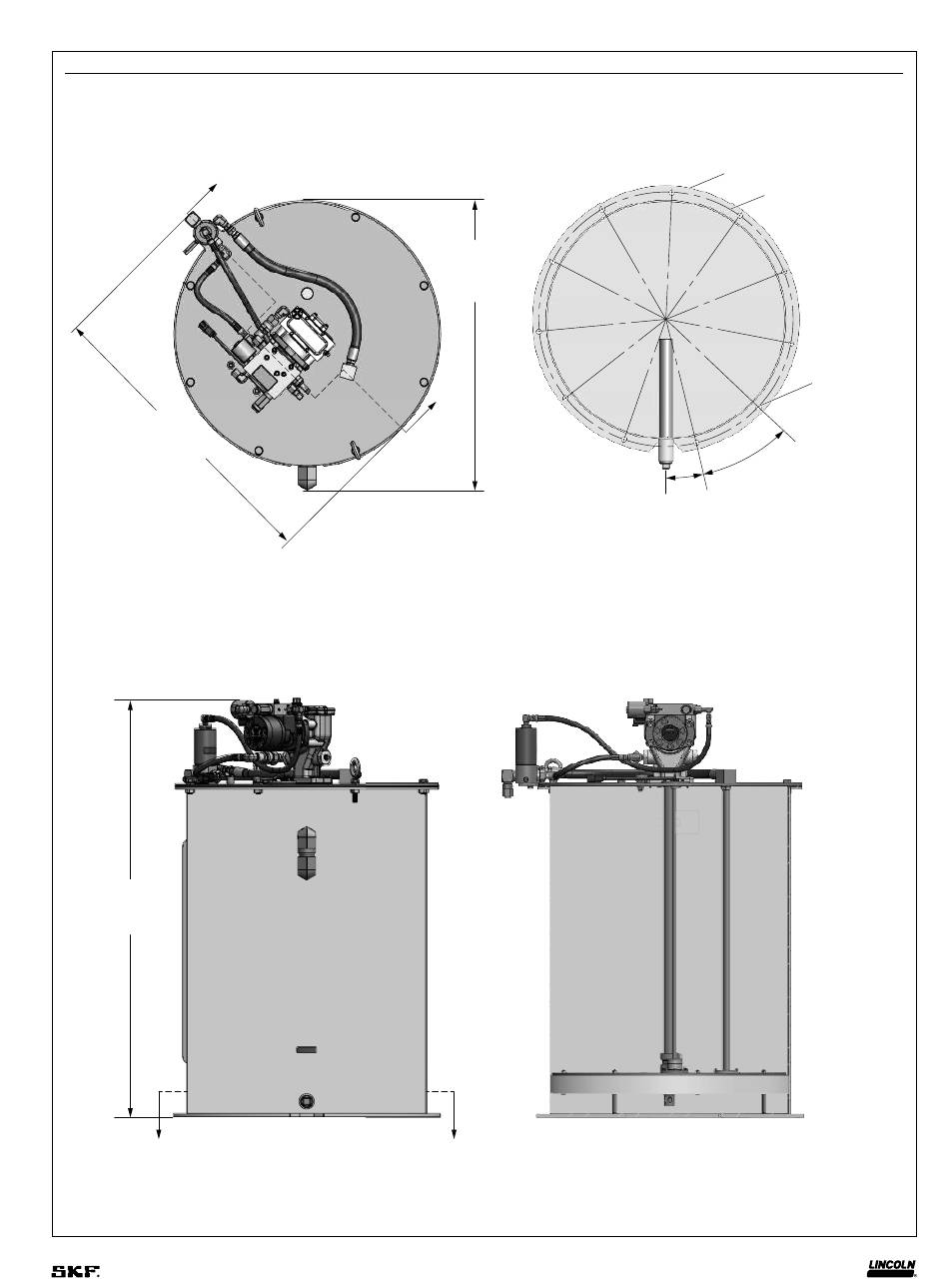

Dimensions
Model 434-3370 shown
A
31.7 in.
(805 mm)
43.9 in.
(1 115 mm)
B
30.5 in.
(775 mm)
A
B
7
∅ 28.1 in. (714 mm)
∅ 26.8 in.
(681 mm)
∅ 0.54 in.
32.7°
13.8°
B–B
A–A
Fig. 1
(14 mm)
