OSOTEK Linear 101 Benutzerhandbuch Seite 7

Now roll your sleeves UP. When it's done it's done!
Now that you have planned the installation in every detail, you are ready to take action. Before
starting, you may want to use your old mower for the last time to clean up your lawn and make
the installation easier.

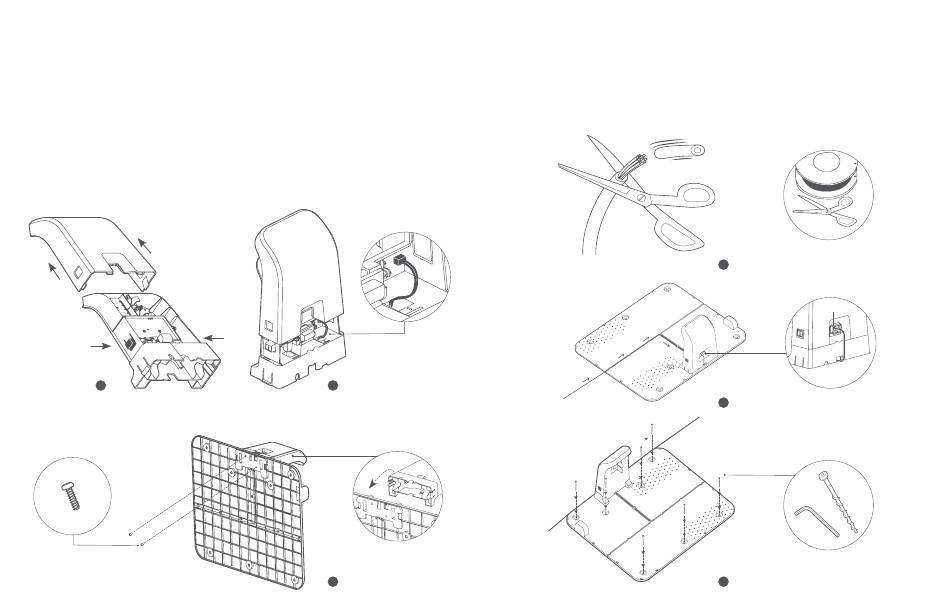

Fix the charging station in the selected location
• Press the buttons on both sides of the charging station handle cover and lift the handle cover
upwards to remove it, as shown in fig 1.
• Thread the signal wire through the hole on the right. Then insert the signal wire into the
corresponding terminal on the circuit board, as shown in fig 2.
• Insert the handle into the charging station plate. Then secure the charging station handle to the
charging station plate by means of two phillips screws, using screwdriver, as shown in fig 3.
1
Connect one end of the boundary wire to the charging station
• Strip the end of the wire with a pair of scissors, as shown in fig 1.
• Open the plastic. Then thread the boundary wire through the bottom of the handle.
• Press the black left clamp. Insert the boundary wire end into the hole above the clamp, as shown
• Pass the boundary wire through the guide of the plate. Then secure the boundary wire in the slot.
• Secure the charging station to the ground by means of the supplied screws, using wrench, as
2
3
6
in fig 2.
shown in fig 3.
1
BLACK
2
3
