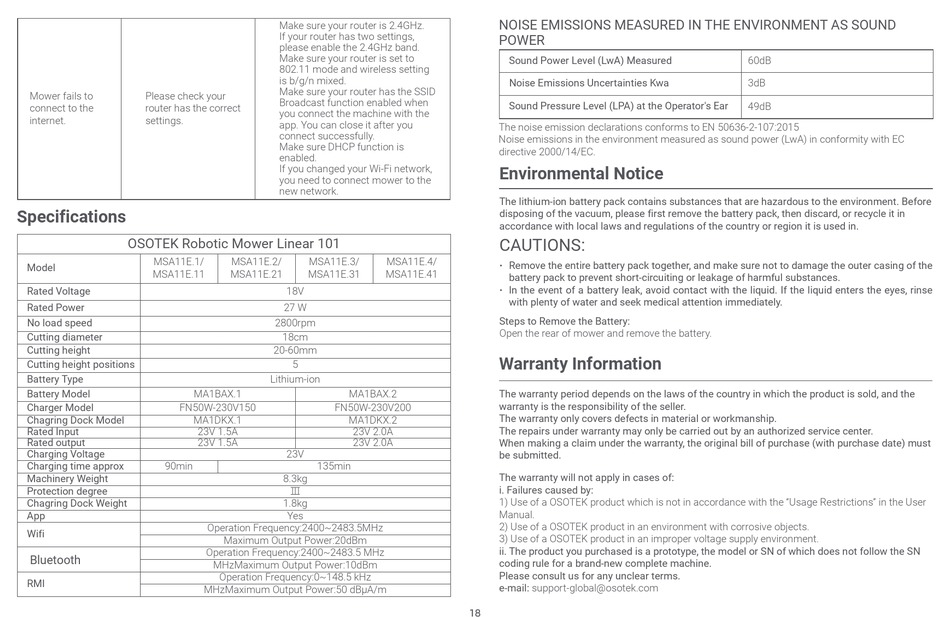

OSOTEK Linear 101 Benutzerhandbuch Seite 19

Mower fails to Please check your
connect to the router has the correct
internet. settings.
Specifications
OSOTEK Robotic Mower Linear 101
MSA11E.1/
Model
MSA11E.11
Rated Voltage
Rated Power
No load speed
Cutting diameter
Cutting height
Cutting height positions
Battery Type
Battery Model MA1BAX.1
Charger Model FN50W-230V150
Chagring Dock Model MA1DKX.1
Rated Input
Rated output
Charging Voltage
Charging time approx 90min
Machinery Weight
Protection degree
Chagring Dock Weight
App
Wifi
Bluetooth
RMI
Make sure your router is 2.4GHz.
If your router has two settings,
please enable the 2.4GHz band.
Make sure your router is set to
802.11 mode and wireless setting
is b/g/n mixed.
Make sure your router has the SSID
Broadcast function enabled when
you connect the machine with the
app. You can close it after you
connect successfully.
Make sure DHCP function is
enabled.
If you changed your Wi-Fi network,
you need to connect mower to the
new network.
MSA11E.2/ MSA11E.3/
MSA11E.21 MSA11E.31
18V
27 W
2800rpm
18cm
20-60mm
5
Lithium-ion
MA1BAX.2
FN50W-230V200
MA1DKX.2
23V 1.5A 23V 2.0A
23V 1.5A 23V 2.0A
23V
135min
8.3kg
Ⅲ
1.8kg
Yes
Operation Frequency:2400~2483.5MHz
Maximum Output Power:20dBm
Operation Frequency:2400~2483.5 MHz
MHzMaximum Output Power:10dBm
Operation Frequency:0~148.5 kHz
MHzMaximum Output Power:50 dBµA/m
NOISE EMISSIONS MEASURED IN THE ENVIRONMENT AS SOUND
POWER
Sound Power Level (LwA) Measured
Noise Emissions Uncertainties Kwa
Sound Pressure Level (LPA) at the Operator's Ear
The noise emission declarations conforms to EN 50636-2-107:2015
Noise emissions in the environment measured as sound power (LwA) in conformity with EC
directive 2000/14/EC.
Environmental Notice
The lithium-ion battery pack contains substances that are hazardous to the environment. Before
disposing of the vacuum, please first remove the battery pack, then discard, or recycle it in
accordance with local laws and regulations of the country or region it is used in.
CAUTIONS:
MSA11E.4/
• Remove the entire battery pack together, and make sure not to damage the outer casing of the
MSA11E.41
battery pack to prevent short-circuiting or leakage of harmful substances.
• In the event of a battery leak, avoid contact with the liquid. If the liquid enters the eyes, rinse
with plenty of water and seek medical attention immediately.
Steps to Remove the Battery:
Open the rear of mower and remove the battery.
Warranty Information
The warranty period depends on the laws of the country in which the product is sold, and the
warranty is the responsibility of the seller.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service center.
When making a claim under the warranty, the original bill of purchase (with purchase date) must
be submitted.
The warranty will not apply in cases of:
i. Failures caused by:
1) Use of a OSOTEK product which is not in accordance with the "Usage Restrictions" in the User
Manual.
2) Use of a OSOTEK product in an environment with corrosive objects.
3) Use of a OSOTEK product in an improper voltage supply environment.
ii. The product you purchased is a prototype, the model or SN of which does not follow the SN
coding rule for a brand-new complete machine.
Please consult us for any unclear terms.
e-mail: support-global@osotek.com
18
60dB
3dB
49dB
