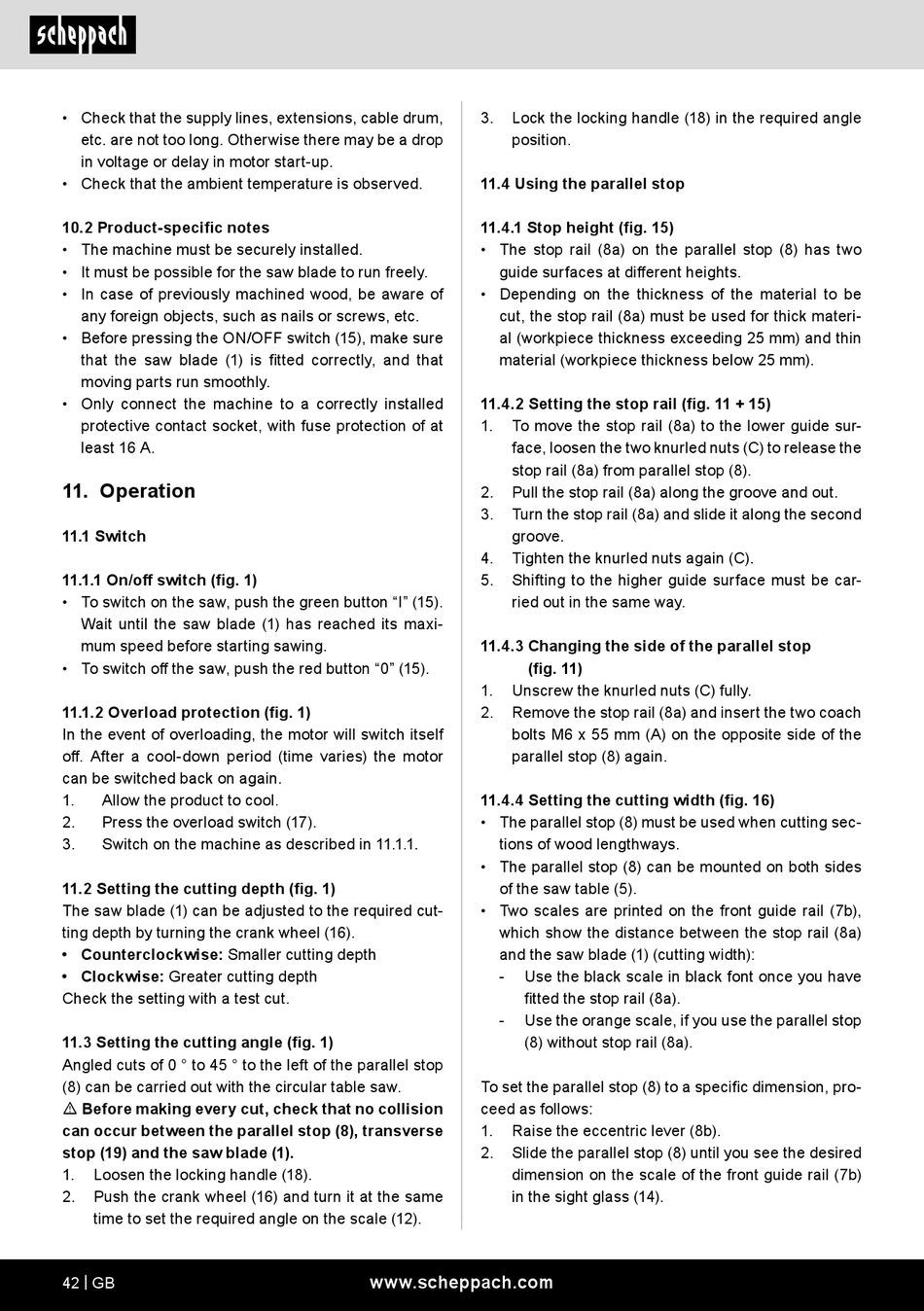

• Check that the supply lines, extensions, cable drum,
etc. are not too long. Otherwise there may be a drop
in voltage or delay in motor start-up.
• Check that the ambient temperature is observed.
10.2 Product-specific notes
• The machine must be securely installed.
• It must be possible for the saw blade to run freely.
• In case of previously machined wood, be aware of
any foreign objects, such as nails or screws, etc.
• Before pressing the ON/OFF switch (15), make sure
that the saw blade (1) is fitted correctly, and that
moving parts run smoothly.
• Only connect the machine to a correctly installed
protective contact socket, with fuse protection of at
least 16 A.
11. Operation
11.1 Switch
11.1.1 On/off switch (fig. 1)
• To switch on the saw, push the green button "I" (15).
Wait until the saw blade (1) has reached its maxi-
mum speed before starting sawing.
• To switch off the saw, push the red button "0" (15).
11.1.2 Overload protection (fig. 1)
In the event of overloading, the motor will switch itself
off. After a cool-down period (time varies) the motor
can be switched back on again.
1. Allow the product to cool.
2. Press the overload switch (17).
3. Switch on the machine as described in 11.1.1.
11.2 Setting the cutting depth (fig. 1)
The saw blade (1) can be adjusted to the required cut-
ting depth by turning the crank wheel (16).
• Counterclockwise: Smaller cutting depth
• Clockwise: Greater cutting depth
Check the setting with a test cut.
11.3 Setting the cutting angle (fig. 1)
Angled cuts of 0 ° to 45 ° to the left of the parallel stop
(8) can be carried out with the circular table saw.
m Before making every cut, check that no collision
can occur between the parallel stop (8), transverse
stop (19) and the saw blade (1).
1. Loosen the locking handle (18).
2. Push the crank wheel (16) and turn it at the same
time to set the required angle on the scale (12).
42 | GB
3. Lock the locking handle (18) in the required angle
position.
11.4 Using the parallel stop
11.4.1 Stop height (fig. 15)
• The stop rail (8a) on the parallel stop (8) has two
guide surfaces at different heights.
• Depending on the thickness of the material to be
cut, the stop rail (8a) must be used for thick materi-
al (workpiece thickness exceeding 25 mm) and thin
material (workpiece thickness below 25 mm).
11.4.2 Setting the stop rail (fig. 11 + 15)
1. To move the stop rail (8a) to the lower guide sur-
face, loosen the two knurled nuts (C) to release the
stop rail (8a) from parallel stop (8).
2. Pull the stop rail (8a) along the groove and out.
3. Turn the stop rail (8a) and slide it along the second
groove.
4. Tighten the knurled nuts again (C).
5. Shifting to the higher guide surface must be car-
ried out in the same way.
11.4.3 Changing the side of the parallel stop
(fig. 11)
1. Unscrew the knurled nuts (C) fully.
2. Remove the stop rail (8a) and insert the two coach
bolts M6 x 55 mm (A) on the opposite side of the
parallel stop (8) again.
11.4.4 Setting the cutting width (fig. 16)
• The parallel stop (8) must be used when cutting sec-
tions of wood lengthways.
• The parallel stop (8) can be mounted on both sides
of the saw table (5).
• Two scales are printed on the front guide rail (7b),
which show the distance between the stop rail (8a)
and the saw blade (1) (cutting width):
- Use the black scale in black font once you have
fitted the stop rail (8a).
- Use the orange scale, if you use the parallel stop
(8) without stop rail (8a).
To set the parallel stop (8) to a specific dimension, pro-
ceed as follows:
1. Raise the eccentric lever (8b).
2. Slide the parallel stop (8) until you see the desired
dimension on the scale of the front guide rail (7b)
in the sight glass (14).
