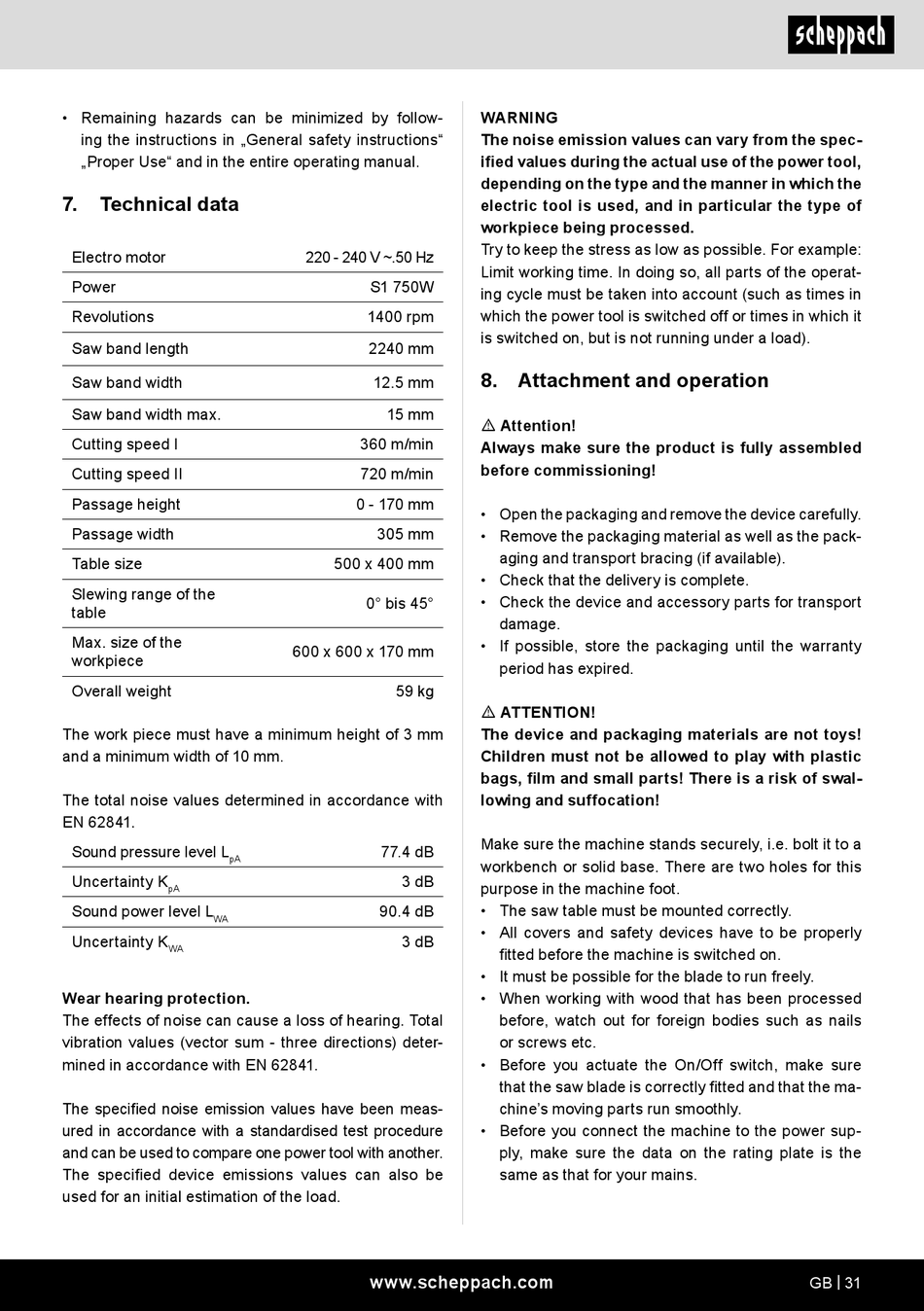

Scheppach HBS400 Originalbetriebsanleitung Seite 31

• Remaining hazards can be minimized by follow-
ing the instructions in „General safety instructions"
„Proper Use" and in the entire operating manual.
7. Technical data
Electro motor
Power
Revolutions
Saw band length
Saw band width
Saw band width max.
Cutting speed I
Cutting speed II
Passage height
Passage width
Table size
Slewing range of the
table
Max. size of the
workpiece
Overall weight
The work piece must have a minimum height of 3 mm
and a minimum width of 10 mm.
The total noise values determined in accordance with
EN 62841.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing. Total
vibration values (vector sum - three directions) deter-
mined in accordance with EN 62841.
The specified noise emission values have been meas-
ured in accordance with a standardised test procedure
and can be used to compare one power tool with another.
The specified device emissions values can also be
used for an initial estimation of the load.
220 - 240 V ~.50 Hz
S1 750W
1400 rpm
2240 mm
12.5 mm
15 mm
360 m/min
720 m/min
0 - 170 mm
305 mm
500 x 400 mm
0° bis 45°
600 x 600 x 170 mm
59 kg
77.4 dB
3 dB
90.4 dB
3 dB
www.scheppach.com
WARNING
The noise emission values can vary from the spec-
ified values during the actual use of the power tool,
depending on the type and the manner in which the
electric tool is used, and in particular the type of
workpiece being processed.
Try to keep the stress as low as possible. For example:
Limit working time. In doing so, all parts of the operat-
ing cycle must be taken into account (such as times in
which the power tool is switched off or times in which it
is switched on, but is not running under a load).
8. Attachment and operation
m Attention!
Always make sure the product is fully assembled
before commissioning!
• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
purpose in the machine foot.
• The saw table must be mounted correctly.
• All covers and safety devices have to be properly
fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the ma-
chine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
