INSTALLATION GUIDE

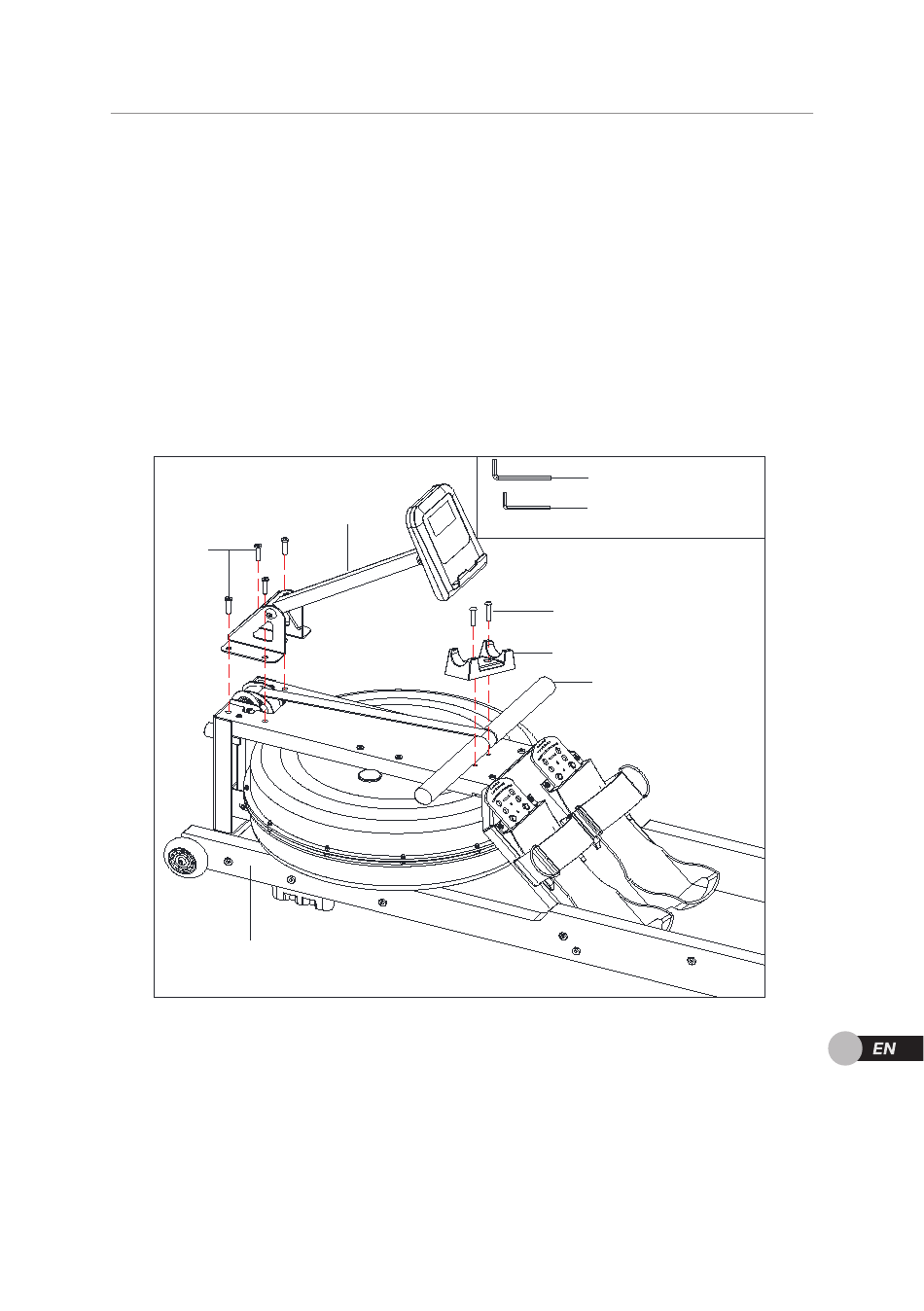

Step 4: Install the Monitor
A. Use the Allen Wrench (27) to remove the pre-installed Hexagonal Pan Head Screw
(69) from the Main Frame (A).
B. Use the Allen Wrench (90) to remove the pre-installed Hexagonal Flat Head Screw
(83) from the Main Frame (A).
C. Use the Allen Wrench (27) and the Hexagonal Pan Head Screws (69) to install the
Handle Seat (29) on the Main Frame (A), and place the Handle Tube (12) on the Handle
Seat (29).
D. Use the Allen Wrench (90) and Hexagonal Flat Head Screws (83) to install the Monitor
(E) on the Main Frame (A).
83
A
E
#27 Allen Wrench S5
1PC
#90 Allen Wrench S4
1PC
69
29
12
