INSTALLATION GUIDE

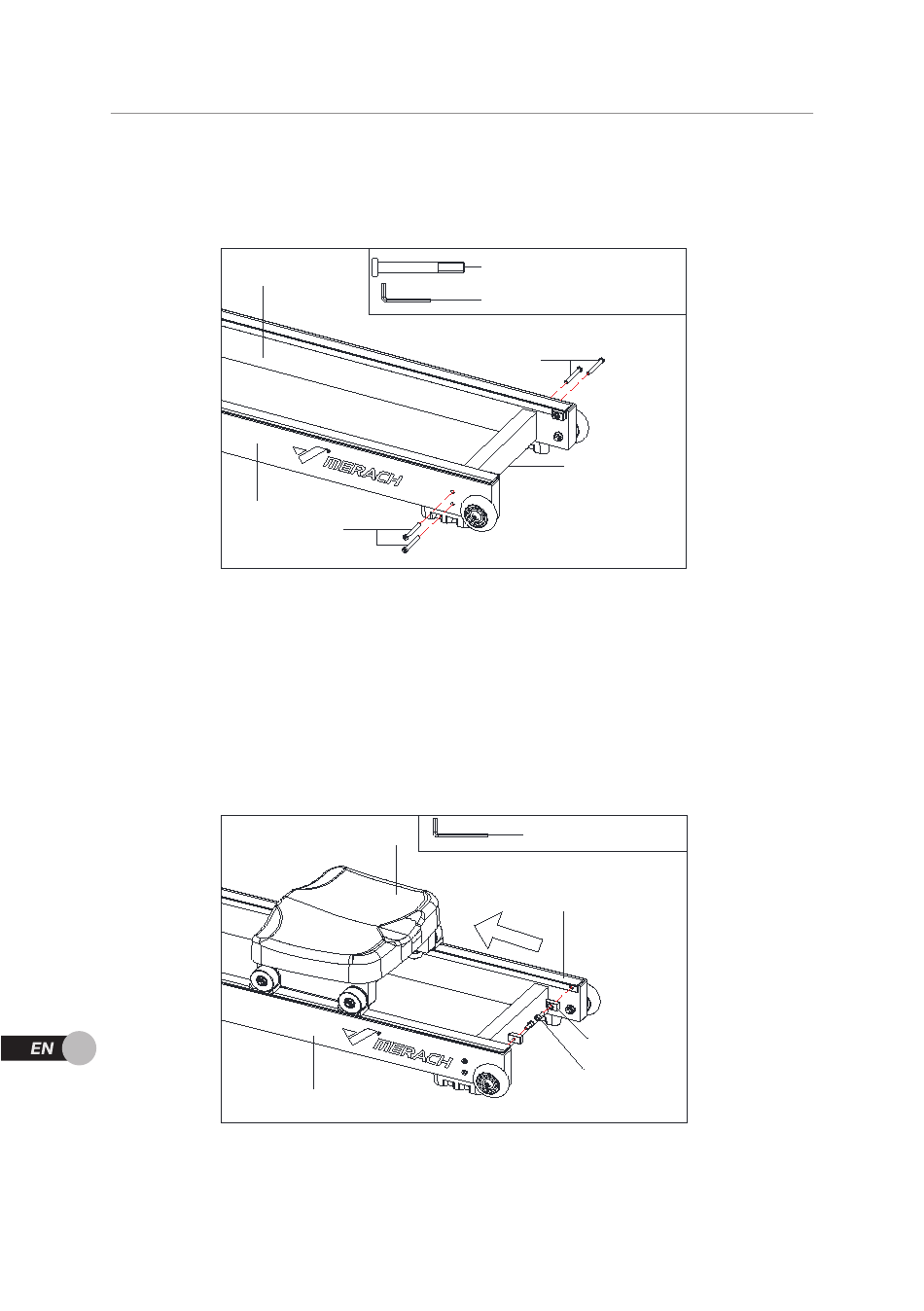

Step 2: Assemble the Track Connecting Plate
Use the Allen Wrench (90) and Hexagonal Flat Head Screw (62) to assemble the Left
Slide Rail (B), the Right Slide Raily (C) and the Track Connecting Plate (4).
Step 3: Installing the Seat Cushion Assembly
A. Use an Allen Wrench (27) to remove the pre-installed Seat Stopper (30) and the He-
xagon Socket Head Screw (68) from the Left Slide Rail (B) and the Right Slide Raily (C).
B. Push the Seat Cushion Assembly (D) in the direction of the arrow, and then tighten
the Seat Stopper (30) and the Hexagon Socket Head Screw (68).
08
C
B
62
D
B
#62 Hexagonal Flat Head Screw
M6*50 4PCS
#90 Allen Wrench S4 1PCS
62
0 4
#27 Allen Wrench S5 1 PCS
C
30
68
