INSTALLATION GUIDE

INSTALLATION GUIDE

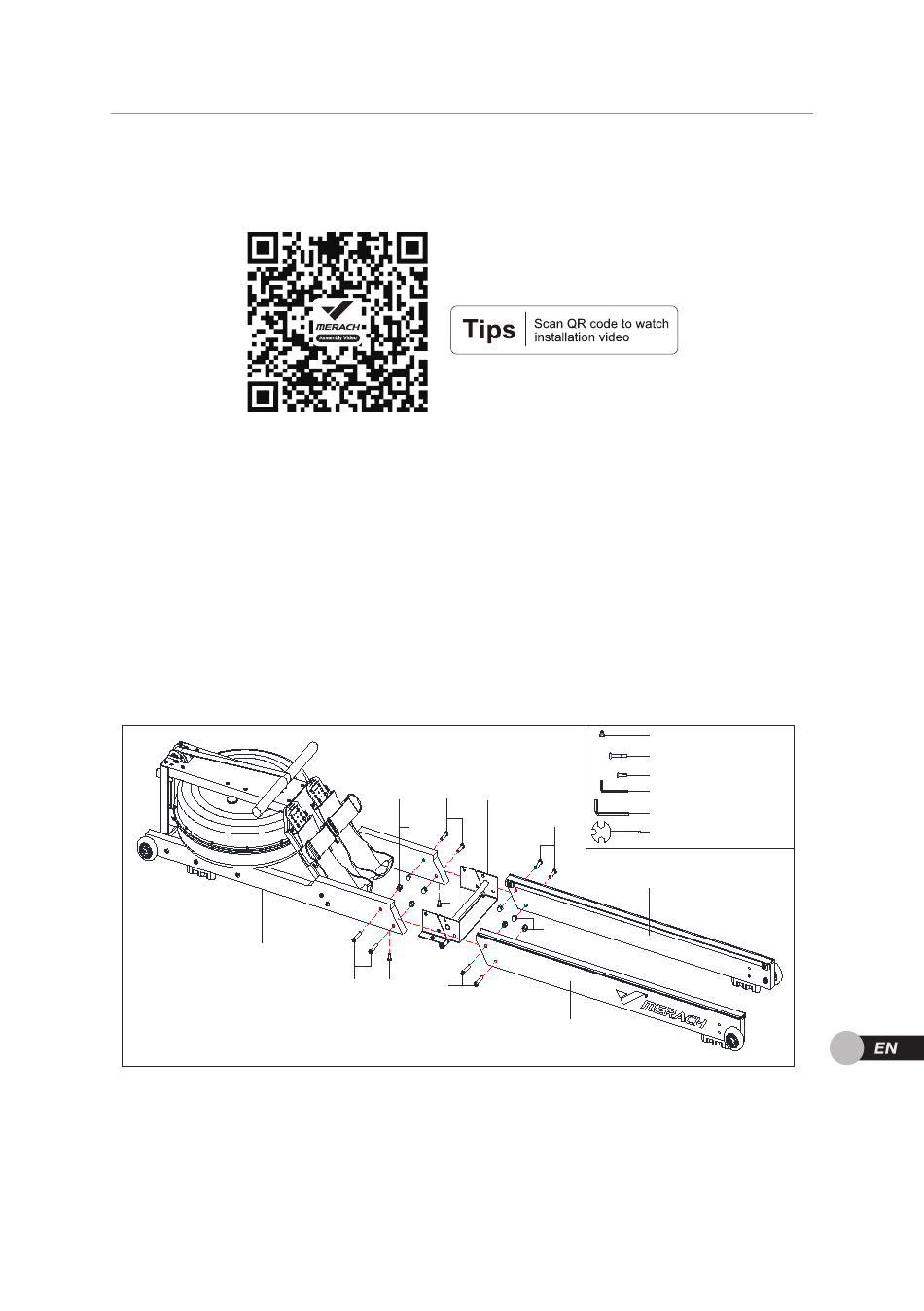

Step 1: Connecting Rails
A. Use the Allen Wrench (27), Cross Wrench (91), Hexagonal Flat Head Screw (67), and
Cap Nut (86) to tighten the Main Frame (A), the Rear Connecting Plate Assembly (F),
the Left Slide Rail (B), and the Right Slide Rail (C).
B. Use the Allen Wrench (90) and Hexagonal Flat Head Screw (63) to tighten the Main
Frame (A) and the Rear Connecting Plate Assembly (F).
C. Tighten all nuts.
Note: When connect the rails, lift the Main Frame (A) up for easy to align the screws
hole of Slide Rail.
A
67 F
86
63
67
67 63
#86 Cap Nut M8 8PCS
#67 Hexagonal Flat Head Screw
M8*40 8PCS
#63 Hexagonal Flat Head Screw
M6*15 2PCS
#90 Allen Wrench S4 1PCS
#27 Allen Wrench S5 1PC
67
#91 Cross Wrench S13 S14 S17
1PCS
C
86
B
07
