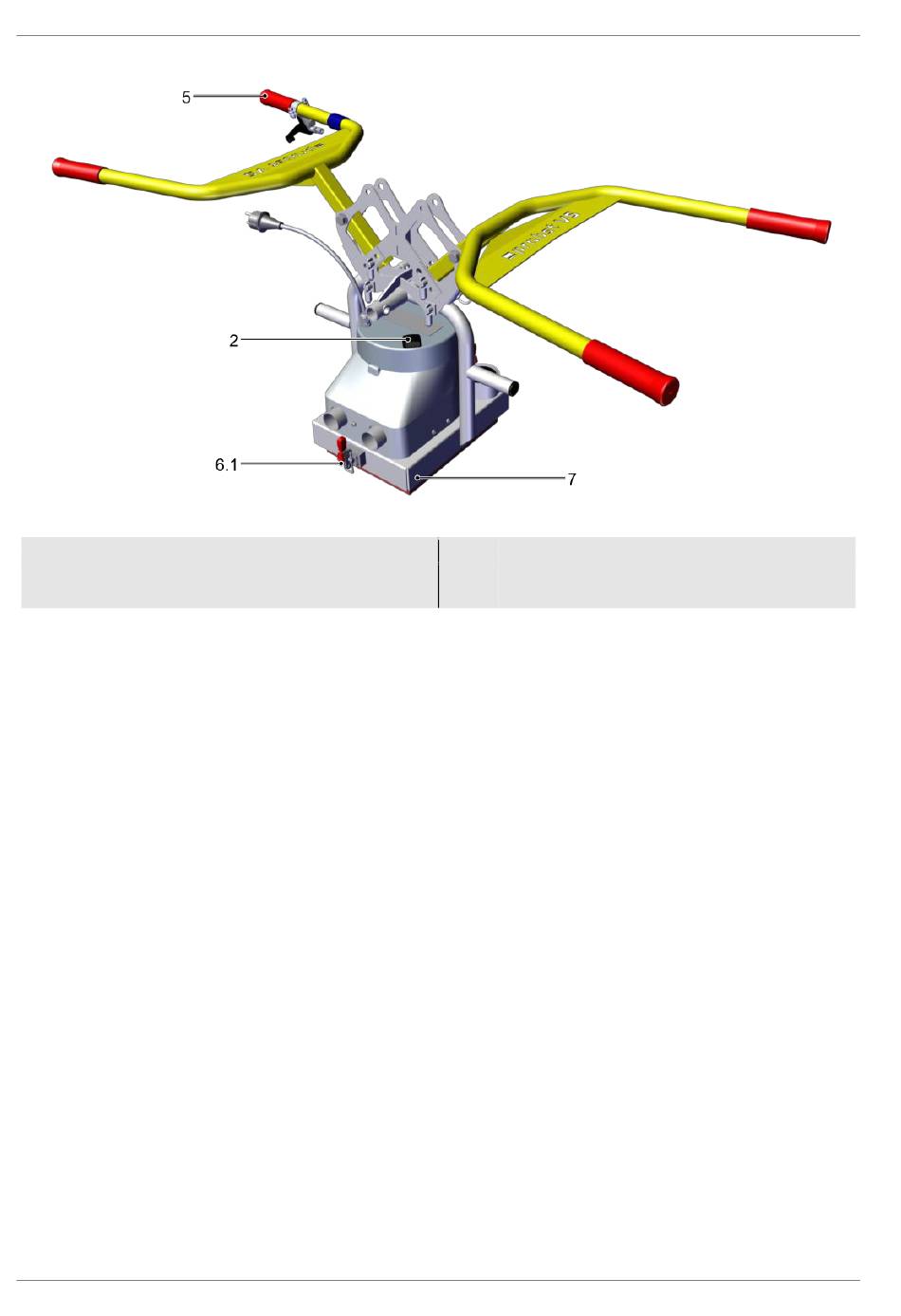

Product description
2 Main switch
6.1 Quick-release clamp for fastening the suc-
tion plate
3.2 Operating Elements
• The main switch (2) is used to switch the vacuum generator on and off.
•
The control lever (8) is used to release the load. The control lever can only be pulled with the lock(8.2) is
pressed down.
3.3 Vacuum Generator
The vacuum is generated by an electrical vacuum blower (3). The vacuum generator is designed for airtight
loads.
3.4 Suction Plates
The suction plate is not included in the scope of delivery. It is used to pick up the load. The suction plate to be
used depends on the load (weight, geometry and surface properties).
Use only suction plates from the manufacturer Probst with carrying capacity labels that indicate without a doubt
a maximum carrying capacity at a vacuum of -0,2 bar. If the situation is unclear, the lifting device and suction
plate may not be put into operation. Contact Probst GmbH.
Standard suction plates are not suitable for handling glass sheets.
14
5 Operator handle
7 Main body
