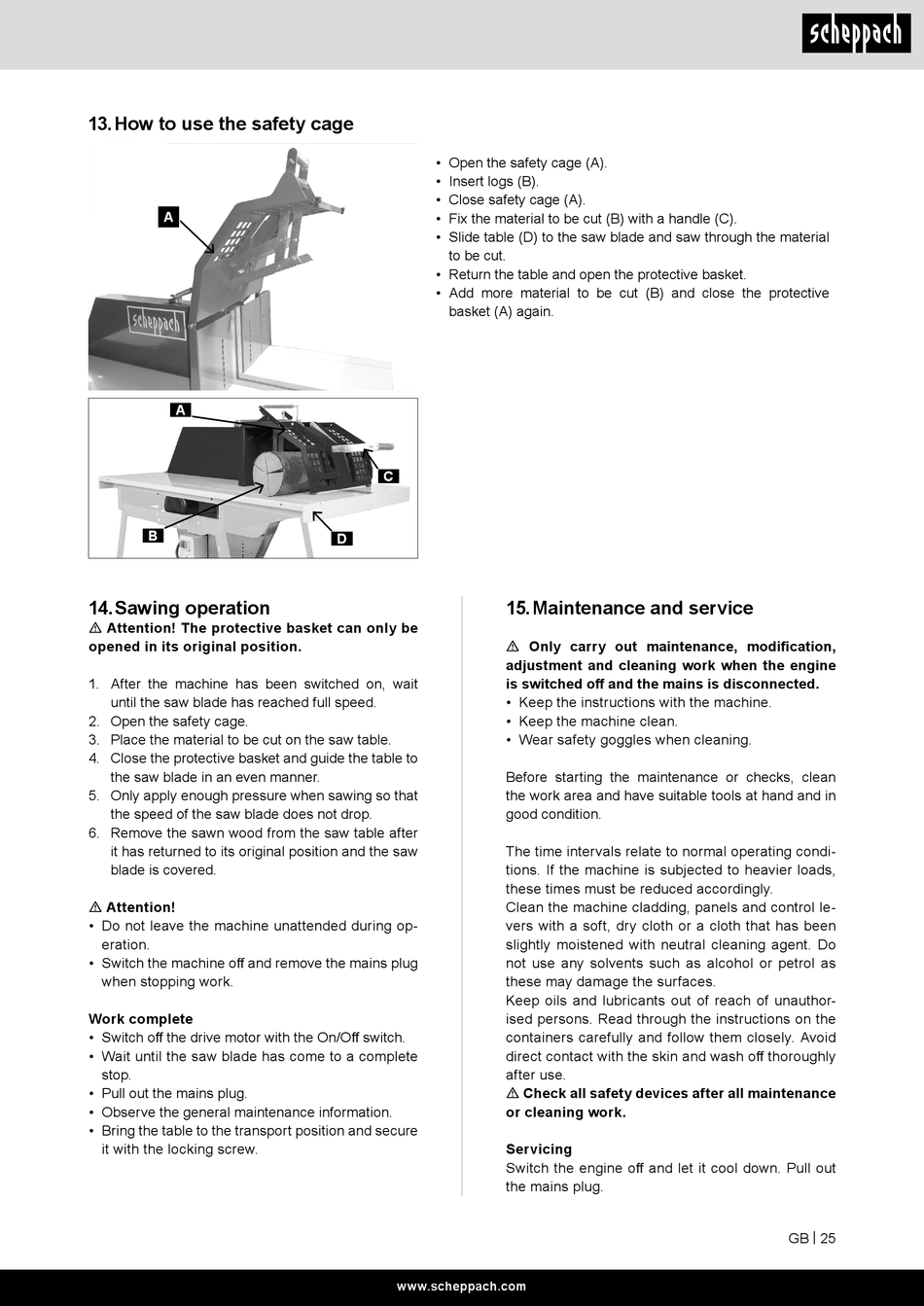

13. How to use the safety cage
A
A
B
14. Sawing operation
m Attention! The protective basket can only be
opened in its original position.
1. After the machine has been switched on, wait
until the saw blade has reached full speed.
2. Open the safety cage.
3. Place the material to be cut on the saw table.
4. Close the protective basket and guide the table to
the saw blade in an even manner.
5. Only apply enough pressure when sawing so that
the speed of the saw blade does not drop.
6. Remove the sawn wood from the saw table after
it has returned to its original position and the saw
blade is covered.
m Attention!
• Do not leave the machine unattended during op-
eration.
• Switch the machine off and remove the mains plug
when stopping work.
Work complete
• Switch off the drive motor with the On/Off switch.
• Wait until the saw blade has come to a complete
stop.
• Pull out the mains plug.
• Observe the general maintenance information.
• Bring the table to the transport position and secure
it with the locking screw.
• Open the safety cage (A).
• Insert logs (B).
• Close safety cage (A).
• Fix the material to be cut (B) with a handle (C).
• Slide table (D) to the saw blade and saw through the material
to be cut.
• Return the table and open the protective basket.
• Add more material to be cut (B) and close the protective
basket (A) again.
C
D
15. Maintenance and service
m Only carry out maintenance, modification,
adjustment and cleaning work when the engine
is switched off and the mains is disconnected.
• Keep the instructions with the machine.
• Keep the machine clean.
• Wear safety goggles when cleaning.
Before starting the maintenance or checks, clean
the work area and have suitable tools at hand and in
good condition.
The time intervals relate to normal operating condi-
tions. If the machine is subjected to heavier loads,
these times must be reduced accordingly.
Clean the machine cladding, panels and control le-
vers with a soft, dry cloth or a cloth that has been
slightly moistened with neutral cleaning agent. Do
not use any solvents such as alcohol or petrol as
these may damage the surfaces.
Keep oils and lubricants out of reach of unauthor-
ised persons. Read through the instructions on the
containers carefully and follow them closely. Avoid
direct contact with the skin and wash off thoroughly
after use.
m Check all safety devices after all maintenance
or cleaning work.
Servicing
Switch the engine off and let it cool down. Pull out
the mains plug.
