Warning: Three adults in good physical condition are needed for the following steps. Wear sturdy shoes to avoid falls.
Failure to observe the following instructions and warnings can result in accidents.

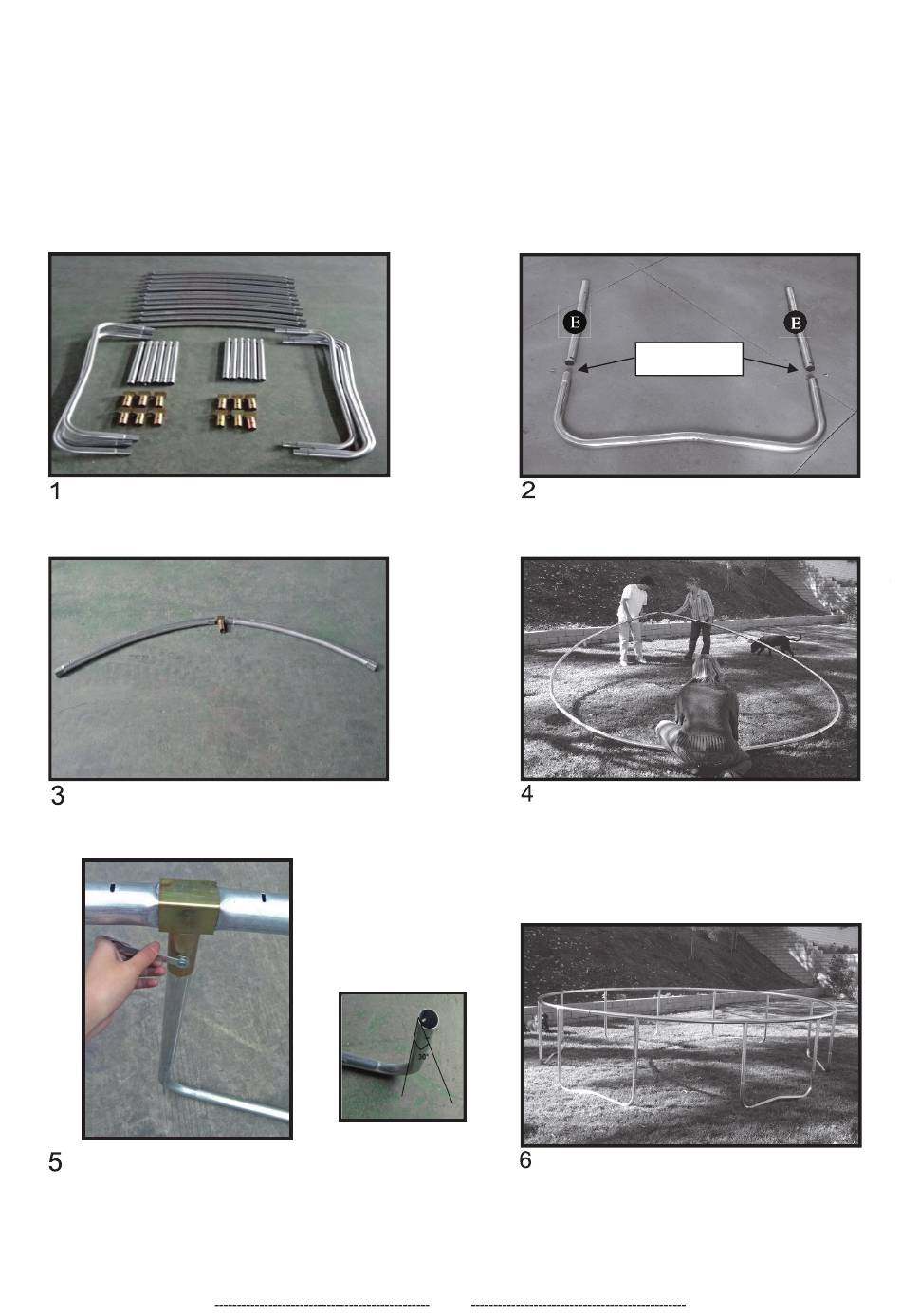

Place the individual parts into groups (see figure).
Assemble the frame by inserting all frame parts into
each other and secure them with the bolts provided.
Connect the w-shaped legs to the frame and secure
them with the supplied legs.
Please noted that this angle is outwards.
Frame Assembly
Please refer to the parts list for identification.
12
Rail Screws
Start by assembling the w-shaped support leg. Insert
the right leg extension (R) on the right side and the
left leg extension on the left side.
Continue until the frame parts form a large circle.
Three adults are required for assembling the last
frame part, among other things. Two of them are to
put the last frame parts firmly together while the third
attaches the frame on the opposite side.
When assembling both the legs please make sure
that one leg E and one leg E are each side by side
alternately
