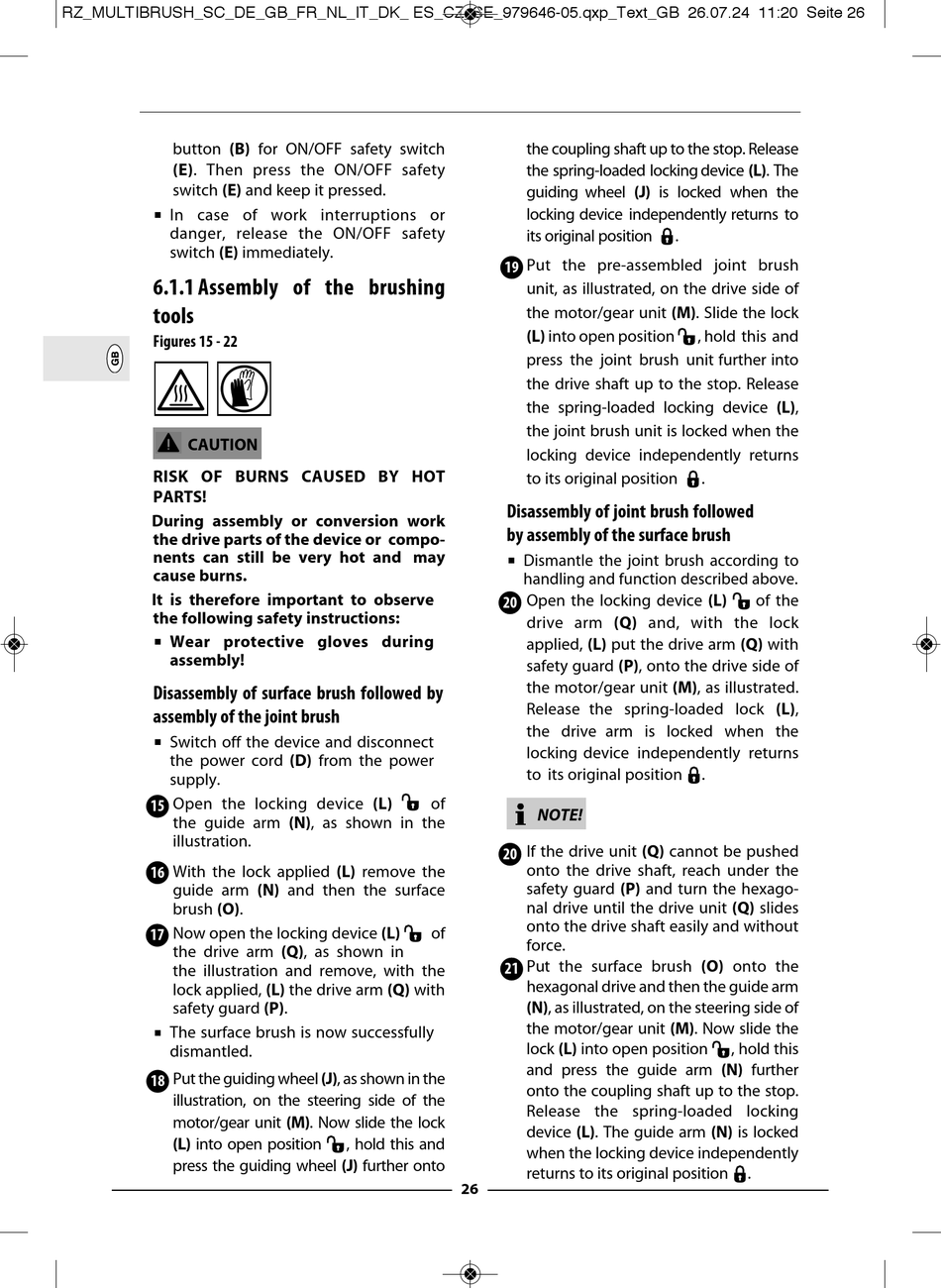

button (B) for ON/OFF safety switch
(E). Then press the ON/OFF safety
switch (E) and keep it pressed.

In case of work interruptions or
danger, release the ON/OFF safety
switch (E) immediately.
6.1.1 Assembly of the brushing
tools
Figures 15 - 22
CAUTION
RISK OF BURNS CAUSED BY HOT
PARTS!
During assembly or conversion work
the drive parts of the device or compo-
nents can still be very hot and may
cause burns.
It is therefore important to observe
the following safety instructions:

Wear protective gloves during
assembly!
Disassembly of surface brush followed by
assembly of the joint brush

Switch off the device and disconnect
the power cord (D) from the power
supply.
15
Open the locking device (L)
the guide arm (N), as shown in the
illustration.
16
With the lock applied (L) remove the
guide arm (N) and then the surface
brush (O).
17
Now open the locking device (L)
the drive arm (Q), as shown in
the illustration and remove, with the
lock applied, (L) the drive arm (Q) with
safety guard (P).

The surface brush is now successfully
dismantled.
18
Put the guiding wheel (J), as shown in the
illustration, on the steering side of the
motor/gear unit (M). Now slide the lock
(L) into open position
press the guiding wheel (J) further onto
19
Disassembly of joint brush followed
by assembly of the surface brush

Dismantle the joint brush according to
handling and function described above.
20
of
20
of
21
, hold this and
26
the coupling shaft up to the stop. Release
the spring-loaded locking device (L). The
guiding wheel (J) is locked when the
locking device independently returns to
its original position .
Put the pre-assembled joint brush
unit, as illustrated, on the drive side of
the motor/gear unit (M). Slide the lock
(L) into open position , hold this and
press the joint brush unit further into
the drive shaft up to the stop. Release
the spring-loaded locking device (L),
the joint brush unit is locked when the
locking device independently returns
to its original posi tion .
Open the locking device (L)
drive arm (Q) and, with the lock
applied, (L) put the drive arm (Q) with
safety guard (P), onto the drive side of
the motor/gear unit (M), as illustrated.
Release the spring-loaded lock (L),
the drive arm is locked when the
locking device independently returns
to its original position .
NOTE!
If the drive unit (Q) cannot be pushed
onto the drive shaft, reach under the
safety guard (P) and turn the hexago-
nal drive until the drive unit (Q) slides
onto the drive shaft easily and without
force.
Put the surface brush (O) onto the
hexagonal drive and then the guide arm
(N), as illustrated, on the steering side of
the motor/gear unit (M). Now slide the
lock (L) into open position
and press the guide arm (N) further
onto the coupling shaft up to the stop.
Release the spring-loaded locking
device (L). The guide arm (N) is locked
when the locking device independently
returns to its original position
of the
, hold this
.
