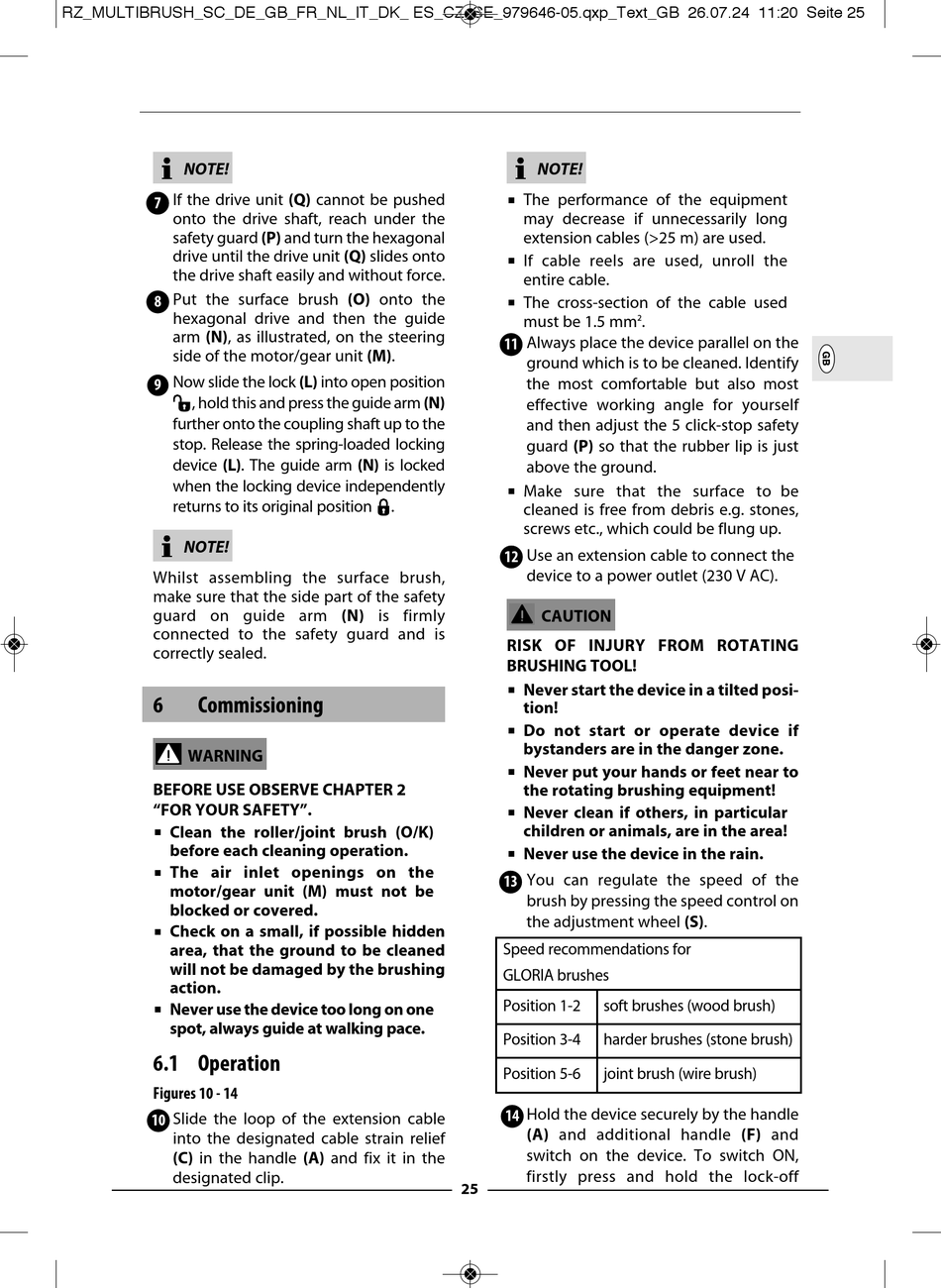

NOTE!
7
If the drive unit (Q) cannot be pushed
onto the drive shaft, reach under the
safety guard (P) and turn the hexagonal
drive until the drive unit (Q) slides onto
the drive shaft easily and without force.
8
Put the surface brush (O) onto the
hexagonal drive and then the guide
arm (N), as illustrated, on the steering
side of the motor/gear unit (M).
9
Now slide the lock (L) into open position
, hold this and press the guide arm (N)
further onto the coupling shaft up to the
stop. Release the spring-loaded locking
device (L). The guide arm (N) is locked
when the locking device independently
returns to its original position
NOTE!
Whilst assembling the surface brush,
make sure that the side part of the safety
guard on guide arm (N) is firmly
connected to the safety guard and is
correctly sealed.
6 Commissioning
WARNING
BEFORE USE OBSERVE CHAPTER 2
"FOR YOUR SAFETY".

Clean the roller/joint brush (O/K)
before each cleaning operation.

The air inlet openings on the
motor/gear unit (M) must not be
blocked or covered.

Check on a small, if possible hidden
area, that the ground to be cleaned
will not be damaged by the brushing
action.

Never use the device too long on one
spot, always guide at walking pace.
6.1 Operation
Figures 10 - 14
10
Slide the loop of the extension cable
into the designated cable strain relief
(C) in the handle (A) and fix it in the
designated clip.
NOTE!

The performance of the equipment
may decrease if unnecessarily long
extension cables (>25 m) are used.

If cable reels are used, unroll the
en tire cable.

The cross-section of the cable used
must be 1.5 mm
11
Always place the device parallel on the
ground which is to be cleaned. Identify
the most comfortable but also most
effective working angle for yourself
and then adjust the 5 click-stop safety
guard (P) so that the rubber lip is just
above the ground.

Make sure that the surface to be
.
cleaned is free from debris e.g. stones,
screws etc., which could be flung up.
12
Use an extension cable to connect the
device to a power outlet (230 V AC).
CAUTION
RISK OF INJURY FROM ROTATING
BRUSHING TOOL!

Never start the device in a tilted posi-
tion!

Do not start or operate device if
bystanders are in the danger zone.

Never put your hands or feet near to
the rotating brushing equipment!

Never clean if others, in particular
children or animals, are in the area!

Never use the device in the rain.
13
You can regulate the speed of the
brush by pressing the speed control on
the adjustment wheel (S).
Speed recommendations for
GLORIA brushes
Position 1-2
Position 3-4
Position 5-6
14
Hold the device securely by the handle
(A) and additional handle (F) and
switch on the device. To switch ON,
firstly press and hold the lock-off
25 25
2 .
soft brushes (wood brush)
harder brushes (stone brush)
joint brush (wire brush)
