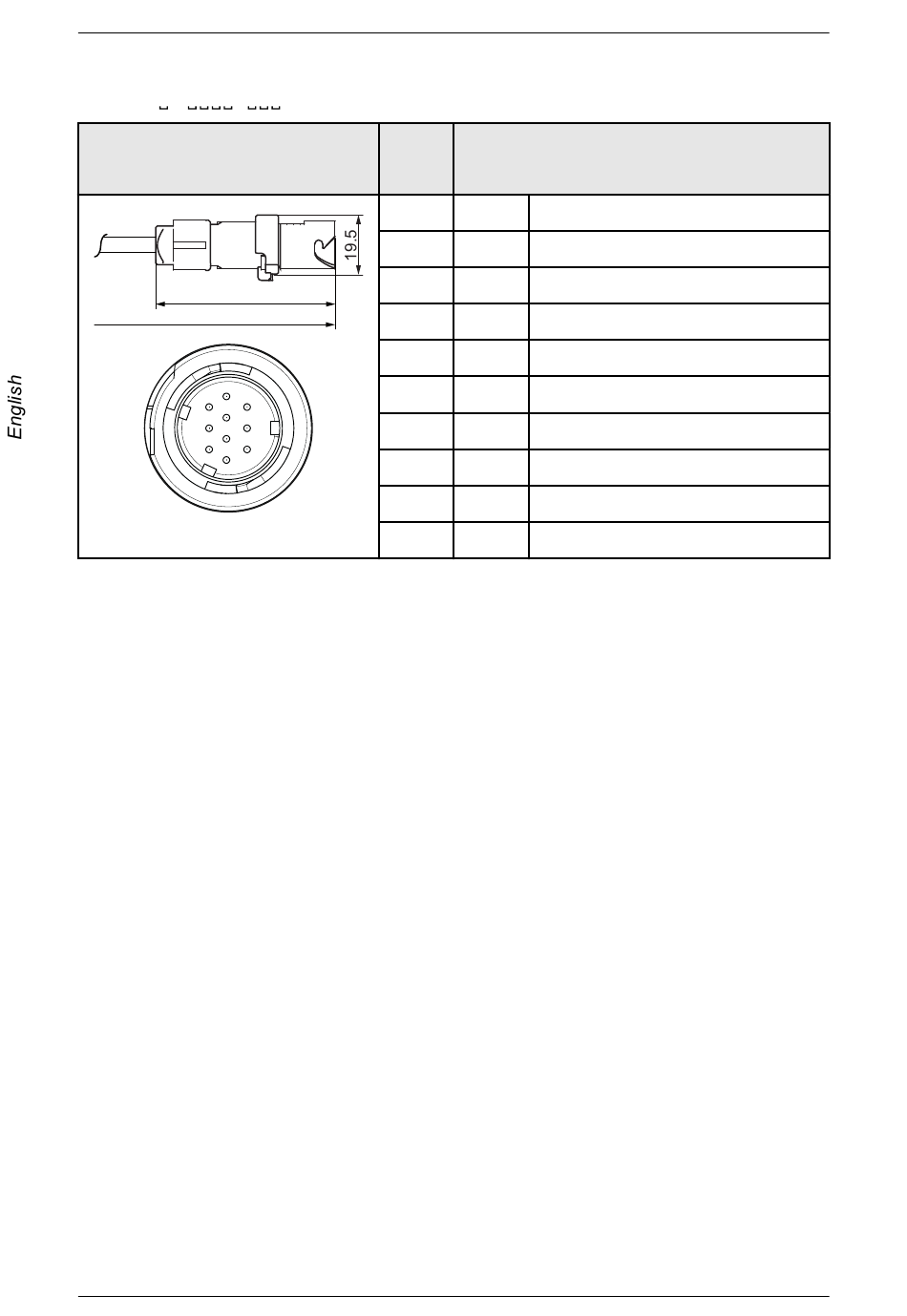

10 Assignments
GEL 244 M Z
10-pin male connector
(plug-in view)
55.8
L
4
8
5
9
6
10
7
L = Cable length
98
-
Pin
1
2
3
4
5
6
1
7
2
3
8
9
10
Signal/Function
n.c. unallocated
n.c. unallocated
RQ+ Positive request signal
RQ- Inverse request signal
Data+ Positive data
Data- Inverse data
U + 5 V power supply
B
0 V GND
Screen Screen
n.c. unallocated
